HIMA F2DO1601 Replacement Upgrade Solution for F2 Series

Product Overview

HIMA F2DO1601 Replacement & Upgrade Solution for F2 Series: Smooth Transition, Zero Compromise on Safety

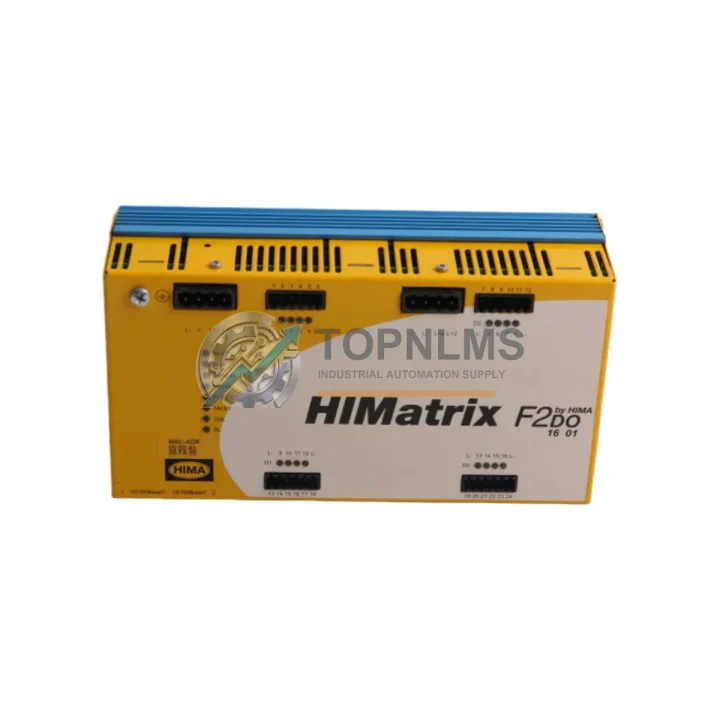

The HIMA F2DO1601 is a 16-channel SIL3-certified Safety Digital Output module designed for the HIMA F2 Series safety PLC platform. As industrial facilities worldwide face the challenge of aging safety instrumented systems (SIS), the F2DO1601 stands as the definitive replacement and upgrade path for legacy HIMA F2 Series installations — including discontinued variants such as the F2DO1600 and earlier F2 I/O generations. Whether your plant is executing a full safety system migration or replacing a single failed output module to restore SIL3 loop integrity, the F2DO1601 delivers wiring-compatible, rack-compatible, and firmware-compatible continuity that minimizes engineering rework and eliminates unnecessary downtime.

Engineered to HIMA’s proven HIMax and HIMatrix safety architecture principles, the F2DO1601 integrates directly into existing F2 Series backplanes without mechanical modification. Each of its 16 digital output channels is independently monitored with internal diagnostics, supporting both energize-to-trip (ETT) and de-energize-to-trip (DETT) configurations — a critical flexibility requirement when migrating from older relay-based or first-generation solid-state output modules. The module communicates natively over HIMA’s proprietary SafeEthernet protocol, ensuring seamless integration with existing F2 Series CPUs such as the F2 CPU and F2 COM modules already installed in your control cabinet.

For facilities upgrading from legacy HIMA F1 Series or third-party safety PLCs, the F2DO1601 supports structured migration through HIMA’s ELOP II Factory engineering environment. Safety application programs developed for predecessor modules can be adapted with minimal logic changes, preserving years of validated safety function investment. Field wiring to terminal blocks remains pin-compatible with standard F2 Series I/O terminal assemblies, eliminating the need for rewiring when swapping a failed module in a live cabinet — a decisive advantage during emergency replacement scenarios where every hour of downtime carries operational and regulatory cost.

The F2DO1601 is rated for 24 VDC output operation and is designed to drive solenoid valves, motor starters, safety relays, and other field actuators in process safety applications including emergency shutdown (ESD), fire and gas (F&G), and burner management systems (BMS). Its compact DIN-rail-compatible form factor fits standard F2 Series mounting racks, and its low power consumption profile is compatible with existing F2 Series power supply modules — meaning your existing PS modules do not require replacement or upsizing during a like-for-like swap.

When planning a broader control system modernization, the F2DO1601 is frequently deployed alongside complementary F2 Series components. Digital input coverage is typically handled by the HIMA F2DI1601 16-channel safety digital input module, which shares the same rack slot form factor and terminal wiring standard. Analog process signals are managed through the HIMA F2AI6401 analog input module, supporting 4–20 mA HART field instruments without signal conditioner additions. For systems requiring expanded communication reach, the HIMA F2 COM communication module provides PROFIBUS DP, Modbus RTU, and SafeEthernet gateway functions, enabling the F2 Series safety controller to interface with DCS platforms such as Emerson DeltaV, Honeywell Experion, or ABB 800xA without protocol converters.

In multi-rack or large-scale SIS architectures, the HIMA F2 RIO remote I/O coupler extends the F2 Series I/O bus across cabinet boundaries, allowing the F2DO1601 to be installed in satellite marshalling cabinets while remaining under the supervision of the central F2 CPU. Power distribution within the cabinet is typically managed by redundant HIMA F2 PS power supply modules, which provide 24 VDC rail power with automatic switchover — a configuration that remains fully compatible with the F2DO1601’s power draw specifications. For applications requiring galvanic isolation between the safety PLC output and field actuator circuits, HIMA-compatible signal isolators and Zener barriers can be inserted in the wiring path without affecting the module’s SIL3 certification, provided the overall safety loop SIL calculation accounts for the isolator’s PFD contribution.

Facilities migrating from discontinued Triconex TRICON or Siemens S7-400F safety platforms to HIMA F2 Series architecture will find the F2DO1601’s channel density and diagnostic coverage ratio (DCavg > 99%) competitive with modern safety I/O standards. The migration typically involves remapping existing I/O addresses in the safety application, re-terminating field cables to HIMA terminal assemblies, and re-validating safety functions per IEC 61511 requirements — a process that TOPNLMS technical support can assist with through pre-shipment configuration consultation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful F2DO1601 migration rarely involves a single module in isolation. In practice, plant engineers upgrading or replacing F2 Series safety I/O address the full I/O subsystem to ensure consistent firmware revision levels and diagnostic parity across the rack. The HIMA F2DI1601 digital input module is the natural companion to the F2DO1601, providing 16 channels of SIL3-rated digital input for field sensors, pressure switches, and position feedback devices. Together, these two modules cover the complete digital I/O layer of a typical ESD or F&G loop without requiring additional signal conditioning hardware.

For process control integration, the HIMA F2AI6401 analog input module handles 4–20 mA HART signals from transmitters, enabling the safety controller to monitor process variables such as pressure, temperature, and flow directly — a requirement in combined SIS/BPCS architectures where the F2 Series CPU serves dual supervisory roles. Communication between the F2 Series safety system and the plant DCS is managed through the HIMA F2 COM module, which supports PROFIBUS DP master/slave, Modbus TCP, and OPC DA interfaces. This eliminates the need for external protocol gateways and simplifies cabinet wiring during migration projects.

Where cabinet space is constrained — a common challenge in brownfield retrofits — the HIMA F2 RIO remote I/O solution allows marshalling of F2DO1601 output modules in satellite enclosures located closer to field actuators, reducing cable runs and installation cost. Power integrity across the upgraded system is maintained by HIMA F2 PS redundant power supply modules, which provide automatic failover without interrupting safety function execution. For legacy installations where field wiring uses older connector standards, HIMA terminal adapter plates and marshalling terminal blocks facilitate direct re-termination without cutting and re-labelling existing cables — a significant time saving during planned turnaround windows.

Retrofit Guidance FAQ

Q: Can I replace an F2DO1600 with the F2DO1601 without rewiring the terminal block?
A: Yes. The F2DO1601 uses the same F2 Series terminal assembly connector standard as the F2DO1600. Field wiring connections are pin-compatible, allowing a direct swap without disturbing existing cable terminations. Verify terminal block revision compatibility with your site’s as-built drawings before installation.

Q: Do I need to modify my ELOP II Factory safety application after replacing the module?
A: In most like-for-like replacement scenarios, no application changes are required. The F2DO1601 is recognized by ELOP II Factory under the same module type designation as its predecessor. If upgrading from an F1 Series module, I/O address remapping will be required, and a full safety function validation per IEC 61511 Clause 16 is recommended.

Q: Is the F2DO1601 compatible with SafeEthernet-based F2 CPU configurations?
A: Yes. The F2DO1601 communicates over HIMA’s internal I/O bus and is fully compatible with all F2 Series CPUs using SafeEthernet for inter-controller communication. No additional communication modules or firmware updates are required for standard replacement installations.

Q: What is the physical installation space requirement?
A: The F2DO1601 occupies one standard F2 Series rack slot. No additional mounting hardware or cabinet modification is required for a direct replacement. For new installations in existing cabinets, verify available rack slots and power budget against the F2 PS module’s rated output current.

Q: Can the F2DO1601 be used in a hot-swap replacement during plant operation?
A: HIMA F2 Series modules support online replacement under specific conditions defined in the F2 Series system manual. Consult your site’s safety management of change (MOC) procedure and HIMA’s module replacement guidelines before performing any live replacement in a SIL-rated loop.

Q: What output trip configurations are supported?
A: The F2DO1601 supports both energize-to-trip (ETT) and de-energize-to-trip (DETT) output configurations, selectable per channel through ELOP II Factory. This flexibility accommodates both normally-energized and normally-de-energized field actuator wiring conventions without hardware modification.

Warranty Assurance

Every HIMA F2DO1601 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional inspection including power-on verification, output channel continuity check, and visual inspection for physical damage or counterfeit indicators. Units are shipped in anti-static packaging with original HIMA labelling and serialization intact.

In the event of a warranty claim, TOPNLMS provides a replacement dispatch within 3 business days of confirmed fault diagnosis, minimizing the impact on plant availability. Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191 for urgent replacement coordination. We maintain buffer stock of high-demand F2 Series modules including the F2DO1601 to support emergency procurement requirements with same-week shipping from our Xiamen warehouse.

For B2B procurement teams, TOPNLMS issues a formal warranty certificate with each shipment, suitable for inclusion in your plant’s spare parts management system and IEC 61511 lifecycle documentation. Volume orders and long-term supply agreements are available for facilities managing multi-site F2 Series installed bases.
