HEIDENHAIN iTNC530 532524-01 Replacement Upgrade Solution

Product Overview

HEIDENHAIN iTNC530 532524-01 Replacement Upgrade Solution: Seamless Transition for Legacy CNC Control Systems

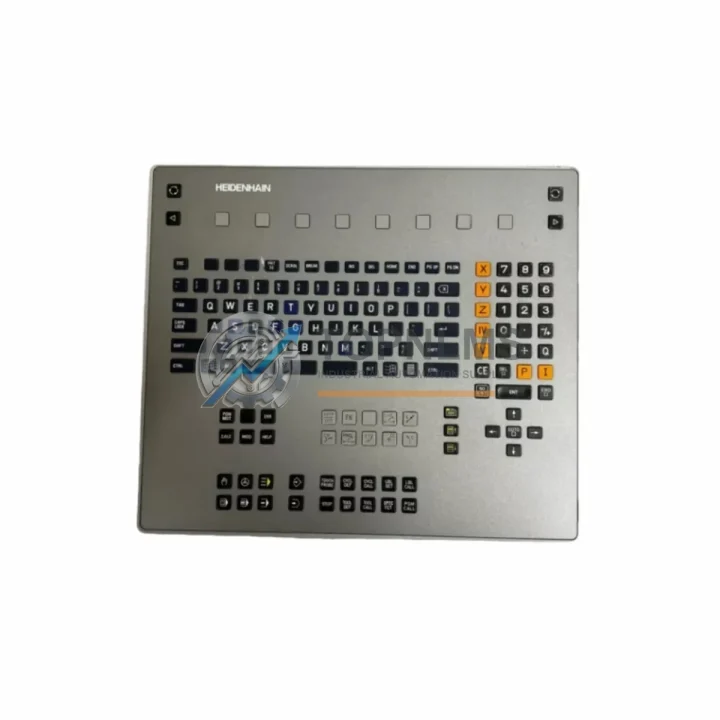

The HEIDENHAIN iTNC530 532524-01 Operator Keyboard Panel is a precision-engineered replacement and upgrade solution designed for machine tool operators and maintenance engineers managing aging or discontinued CNC control systems. Whether your facility is running legacy HEIDENHAIN iTNC 415, iTNC 426, iTNC 430, or iTNC 530 series controllers, this keyboard panel delivers a direct, drop-in upgrade path that minimizes retrofit complexity and eliminates extended machine downtime.

Industrial facilities worldwide face the challenge of sustaining production continuity when original CNC operator panels reach end-of-life or become unavailable through standard distribution channels. The iTNC530 532524-01 addresses this challenge directly: it is dimensionally compatible with the original mounting cutout, retains the same membrane key layout and function key assignments familiar to operators, and interfaces with the iTNC530 control unit via the established HEIDENHAIN proprietary connector standard. No panel recess modification, no operator retraining, and no PLC program restructuring is required for a standard swap-out.

For shops transitioning from the earlier iTNC 426 or iTNC 430 operator panels, the physical footprint and connector pinout are closely aligned, making the 532524-01 a practical cross-generation upgrade. Engineers who have previously worked with the HEIDENHAIN TE 530 machine operating panel or the BF 150 visual display unit will find the integration logic consistent with established HEIDENHAIN system architecture. The keyboard communicates with the iTNC530 main control board through the internal keyboard bus, and no additional signal conditioning or protocol conversion hardware is needed.

In retrofit projects where the control cabinet is being modernized — for example, replacing a worn Siemens SINUMERIK 840D operator panel or a Fanuc Series 0i-MD keyboard with a HEIDENHAIN-based solution — the 532524-01 provides a standardized entry point into the HEIDENHAIN ecosystem. Its compact panel depth is compatible with standard 19-inch rack-mount and embedded machine-panel installations, and the power draw is within the supply capacity of the iTNC530 power supply module, eliminating the need for supplementary PSU upgrades.

Field engineers performing on-site commissioning will appreciate that the keyboard panel requires no firmware flashing or parameter initialization beyond the standard iTNC530 machine parameter set. The control recognizes the panel automatically upon power-up, and all soft-key assignments, cycle start, feed hold, and emergency stop functions are immediately operational. For facilities that maintain a HEIDENHAIN TNC programming station for offline part-program development, the keyboard layout is identical, ensuring that operator muscle memory transfers directly from simulation to the shop floor.

Procurement teams evaluating spare-parts strategy for multi-machine environments will find the 532524-01 suitable for stocking as a universal replacement across iTNC530-equipped machining centers, jig borers, and grinding machines. Its compatibility with the HEIDENHAIN ERN 1381 encoder feedback system and the SE 661 safety module means it integrates cleanly into safety-rated control architectures without requiring re-validation of the safety circuit. For facilities also managing HEIDENHAIN ND 780 digital readout systems or TNC 640 conversational controllers, the 532524-01 shares the same operator interface philosophy, reducing cross-training overhead.

All units are individually inspected prior to dispatch. Each keyboard panel undergoes functional key-matrix testing, connector integrity verification, and membrane seal inspection. Units are shipped in anti-static, foam-lined packaging suitable for international air freight and sea freight consolidation. Standard lead time from our Xiamen warehouse is 3–7 business days for express courier delivery to major industrial regions in Europe, Southeast Asia, and the Americas.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful iTNC530 keyboard panel replacement rarely occurs in isolation. In most retrofit and modernization projects, the 532524-01 is installed alongside a broader set of HEIDENHAIN and compatible components. The iTNC530 main control unit itself is the primary host for the keyboard panel, and facilities upgrading from an iTNC 430 will typically also source a replacement BF 150 TFT visual display unit to complete the operator station. Where the existing control cabinet uses a TE 530 machine operating panel for axis traversal and spindle override, that panel can be retained alongside the new keyboard without conflict.

Power distribution within the control cabinet is managed through the iTNC530 power supply module, which provides regulated DC rails to both the keyboard panel and the display unit. In older installations where the original PSU is approaching end-of-life, it is advisable to replace it concurrently with the keyboard panel to avoid a secondary unplanned outage. Signal integrity between the keyboard and the control board depends on the condition of the internal ribbon cable assembly; worn or cracked ribbon cables should be replaced as part of the same maintenance window.

For facilities that also manage HEIDENHAIN ERN 1381 or ECN 1313 rotary encoders on the machine axes, the 532524-01 upgrade does not affect encoder configuration or the associated EnDat 2.2 communication parameters. Similarly, shops running HEIDENHAIN TNC 640 controllers on adjacent machines will find that spare-parts procurement for the 532524-01 fits naturally into an existing HEIDENHAIN vendor relationship, simplifying purchase order consolidation. Where the machine tool also uses a HEIDENHAIN TS 740 touch probe for workpiece measurement, the probe configuration stored in the iTNC530 machine parameters is unaffected by the keyboard panel swap.

Retrofit Guidance FAQ

Q: Does replacing the 532524-01 keyboard panel require any wiring changes?
A: No. The 532524-01 uses the same HEIDENHAIN proprietary keyboard bus connector as the original iTNC530 operator keyboard. Disconnect the existing panel, connect the replacement, and secure the panel to the machine housing. No rewiring, no crimp work, and no terminal block modifications are required.

Q: Will existing part programs and machine parameters be affected?
A: No. Part programs, tool tables, datum tables, and machine parameters are stored on the iTNC530 control unit, not on the keyboard panel. Swapping the keyboard panel has no effect on any stored data. It is nonetheless recommended practice to perform a full data backup via the HEIDENHAIN TNC programming station before any hardware intervention.

Q: Is the 532524-01 compatible with iTNC530 units running older software versions?
A: Yes. The keyboard panel is hardware-compatible across the iTNC530 software version range. The control unit auto-detects the panel on power-up regardless of the installed NC software version. No software update is required solely for the keyboard panel replacement.

Q: What is the physical installation space requirement?
A: The 532524-01 is dimensionally identical to the original iTNC530 operator keyboard panel. It fits the standard machine panel cutout without modification. Panel depth is within the standard control cabinet door recess allowance for iTNC530 installations.

Q: Can this panel be used as a direct replacement for iTNC 426 or iTNC 430 keyboard panels?
A: The 532524-01 is specified for the iTNC530 series. While the physical form factor is similar to earlier iTNC generation panels, compatibility with iTNC 426 or iTNC 430 control units should be verified against the specific machine’s wiring diagram and connector type before installation. Contact our technical team for pre-purchase compatibility confirmation.

Q: What communication protocol does the keyboard use?
A: The keyboard communicates with the iTNC530 control board via HEIDENHAIN’s internal keyboard bus protocol. This is a proprietary parallel interface; no Profibus, EtherCAT, or Ethernet/IP configuration is involved. The panel is transparent to the machine’s external fieldbus architecture.

Warranty Assurance

Every HEIDENHAIN iTNC530 532524-01 Operator Keyboard Panel supplied by TOPNLMS is covered by a 12-month warranty from the date of dispatch. Our pre-shipment inspection protocol includes full key-matrix functional testing across all membrane keys and soft-key positions, connector pin integrity verification, membrane seal and overlay condition assessment, and visual inspection for transit damage. Units that do not pass all inspection criteria are quarantined and not dispatched.

In the event of a warranty claim, our after-sales team responds within 1 business day. Defective units are eligible for replacement dispatch upon confirmation of the fault condition; return freight for warranty claims is coordinated by our logistics team. We maintain buffer stock of the 532524-01 to support rapid warranty replacements without extended lead times.

For procurement teams requiring documentation, we provide a dispatch inspection certificate with each shipment. Purchase orders can be supported with a proforma invoice, packing list, and certificate of origin. Payment terms and volume pricing are available upon request for MRO and OEM procurement programs.

TOPNLMS ships from Xiamen, China, via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard transit time to Europe is 5–7 business days; to North America, 5–8 business days; to Southeast Asia, 2–4 business days. All shipments are fully insured and tracked from dispatch to delivery.
