HARDY HI 1756-WS Ruggedized Weigh Scale Module for Harsh Environments

Product Overview

HARDY HI 1756-WS Ruggedized Weigh Scale Module: Industrial Resilience in the Harshest Environments

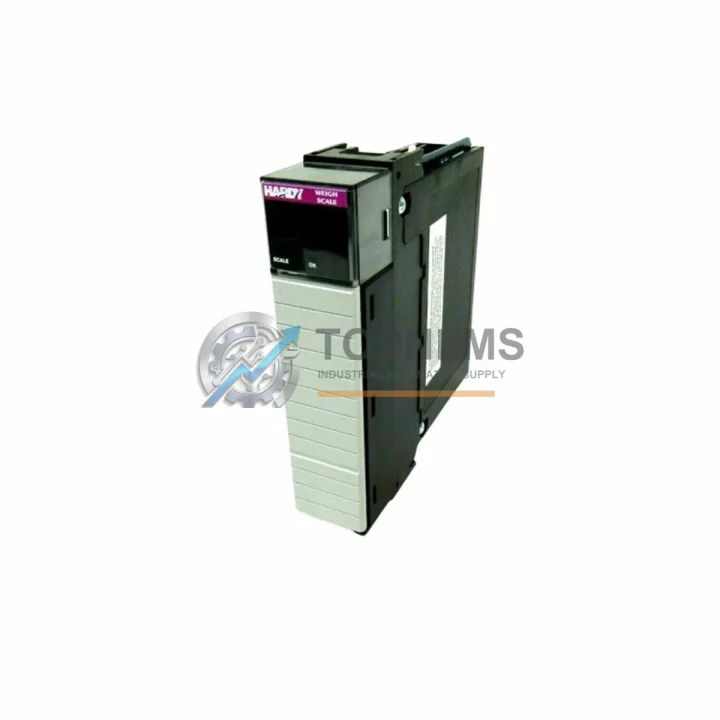

The HARDY HI 1756-WS is a high-precision weigh scale I/O module engineered for seamless integration into the Allen-Bradley ControlLogix 1756 chassis architecture. Designed to operate reliably in environments characterized by extreme temperature fluctuations, high humidity, pervasive dust, continuous mechanical vibration, and intense electromagnetic interference (EMI), the HI 1756-WS delivers uncompromising measurement accuracy and system stability where conventional instrumentation fails. Whether deployed on a continuous production line, inside a heavy-industry control cabinet, or within a classified hazardous area, this module is built to sustain mission-critical weighing operations without interruption.

At TOPNLMS, we maintain verified stock of the HARDY HI 1756-WS, sourced through established industrial supply channels. Every unit undergoes pre-shipment functional testing to confirm signal integrity, backplane communication, and load cell excitation performance before dispatch. With a 12-month quality warranty and dedicated technical support, procurement teams can confidently specify this module as both a primary installation component and a strategic spare.

Rugged Specifications Table

Comprehensive Protection Solutions

The HARDY HI 1756-WS does not operate in isolation — it is a precision instrument embedded within a broader ControlLogix control architecture that demands equally robust supporting components. In high-vibration cement or mining environments, the module works in concert with the Allen-Bradley 1756-L73 ControlLogix CPU, which manages the PLC scan cycle and coordinates real-time weight data with process logic. Reliable backplane power is delivered through the 1756-PA75 power supply module, which maintains stable DC bus voltage even under fluctuating plant power conditions common in steel mills and smelting facilities.

For distributed I/O expansion across large plant floors, the HI 1756-WS integrates seamlessly with 1756-EN2T EtherNet/IP communication modules, enabling high-speed data exchange between the weigh scale subsystem and supervisory SCADA or DCS platforms. In applications where analog signals from load cells must be conditioned before reaching the module, HARDY HI 6110 C2 junction boxes provide summing and trimming functions that protect measurement integrity against cable-run noise and ground loops — a critical consideration in outdoor bulk-material handling installations.

Safety-rated applications in chemical dosing or pharmaceutical batch processing often pair the HI 1756-WS with Allen-Bradley 1791DS safety I/O modules and GuardLogix safety controllers, creating a fully integrated safety-instrumented weighing loop compliant with SIL 2 requirements. For cabinet-level surge and transient protection, Phoenix Contact TRABTECH surge protection devices are commonly installed on the load cell signal lines entering the control enclosure, preventing damage from lightning-induced transients in outdoor silo or tank farm installations.

Communication integrity across the plant network is further reinforced by 1756-CN2 ControlNet bridge modules, which provide deterministic, scheduled data transfer between the weigh scale module and remote I/O racks — essential in continuous casting or rolling mill applications where timing tolerances are measured in milliseconds. Terminal modules such as the Allen-Bradley 1492-AIFM analog interface modules simplify field wiring connections and reduce installation errors in dense control cabinet configurations.

Application in Critical Infrastructure

The HARDY HI 1756-WS has established a proven track record across the most demanding sectors of critical industrial infrastructure. In mining and mineral processing, the module is deployed on conveyor belt weighing systems where continuous tonnage measurement directly governs crusher feed rates and ore blending ratios. Exposure to coal dust, silica particulate, and constant structural vibration from heavy machinery makes the HI 1756-WS’s robust signal conditioning and EMI rejection capabilities indispensable for maintaining measurement accuracy over extended operational cycles.

In oil and gas upstream and midstream facilities, the module supports custody transfer weighing of liquid hydrocarbons and chemical additives in environments where explosive atmospheres, corrosive H₂S gas, and extreme ambient temperatures are routine. When installed within appropriately rated control enclosures and paired with intrinsically safe barriers, the HI 1756-WS contributes to ATEX and IECEx-compliant weighing systems that meet the stringent safety requirements of offshore platforms and onshore processing terminals.

Power generation and water treatment facilities rely on the HI 1756-WS for precise chemical dosing — whether measuring coagulant additions in municipal water treatment plants or monitoring coal feed to boiler systems in thermal power stations. The module’s 24-bit resolution ensures that even small deviations in reagent weight are detected and corrected before they affect downstream process quality or regulatory compliance.

In metallurgy and steel production, the HI 1756-WS is integrated into ladle weighing systems, scrap charge monitoring, and alloy addition control — applications where measurement errors translate directly into product quality defects and material cost overruns. The module’s ability to maintain calibration stability across wide temperature swings, from cold ambient conditions during plant startup to radiant heat near furnace areas, makes it a preferred choice for process engineers specifying instrumentation for long-term, low-maintenance operation.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the HARDY HI 1756-WS?
Every HARDY HI 1756-WS shipped by TOPNLMS is covered by a 12-month quality warranty from the date of delivery. If the module exhibits any functional defect attributable to manufacturing or component failure within this period, TOPNLMS will arrange replacement or repair at no additional cost. Our warranty process is straightforward: contact our technical team, provide the order reference and fault description, and we will initiate the resolution within one business day.

Q2: How is each unit tested before shipment?
All HI 1756-WS modules in our inventory undergo a structured pre-shipment inspection protocol. This includes visual inspection for physical integrity, backplane connector verification, power-on functional test confirming module initialization and LED status, and where applicable, load cell excitation output measurement. Units that do not pass all inspection criteria are quarantined and not dispatched. Test records are retained and can be provided upon request for quality-assurance documentation purposes.

Q3: Is the HARDY HI 1756-WS compatible with my existing ControlLogix system?
The HI 1756-WS is designed specifically for the Allen-Bradley ControlLogix 1756 chassis and is compatible with all standard 1756-series chassis sizes (4-slot through 17-slot). It communicates via the ControlLogix backplane and is configured through Rockwell Automation’s Studio 5000 Logix Designer software using the HARDY Add-On Profile (AOP). Compatibility with specific firmware versions of the 1756-L series CPUs should be confirmed against the HARDY HI 1756-WS release notes; TOPNLMS technical support can assist with version matching prior to purchase.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains ongoing stock of the HARDY HI 1756-WS and related ControlLogix components to support both planned maintenance schedules and unplanned emergency replacements. For facilities operating continuous production lines where unplanned downtime carries significant financial consequences, we recommend establishing a consignment or reserved-stock arrangement. Contact our sales team to discuss volume pricing, lead time commitments, and dedicated spare-part programs tailored to your plant’s maintenance strategy.
