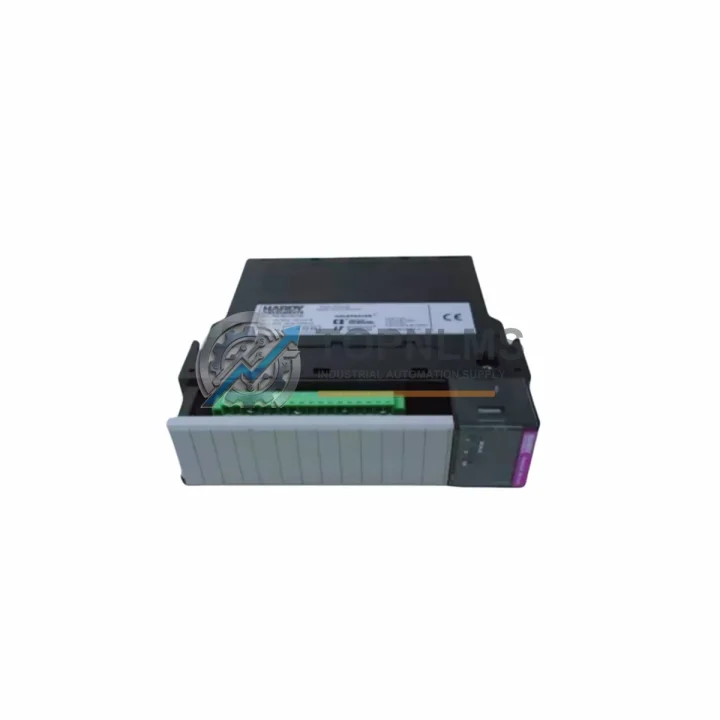

HARDY HI 1756-2WS Original Industrial Spare 1756 Compatible

Product Overview

HARDY HI 1756-2WS Original Industrial Spare: System Stability & Weigh Scale Maintenance for ControlLogix

The HARDY HI 1756-2WS is a dual-channel weigh scale module engineered for seamless integration into the Allen-Bradley 1756 ControlLogix platform. As a precision measurement component in process-critical environments — from batching systems and filling lines to conveyor weighing and hopper control — this module plays a central role in maintaining production accuracy and system uptime. When a weigh scale module fails or drifts out of calibration, the downstream impact on throughput, product quality, and regulatory compliance can be immediate and costly. Sourcing a verified original replacement is the fastest path back to stable operations.

At TOPNLMS, we stock the HI 1756-2WS as a ready-to-ship original spare, fully tested prior to dispatch and backed by a 12-month warranty. Whether you are responding to an unplanned shutdown or building out your preventive maintenance inventory, this module is available for rapid fulfillment to minimize your facility’s exposure to downtime risk.

Critical Technical Specs

Preventive Maintenance Strategy

A weigh scale module replacement is rarely an isolated event. In most ControlLogix-based weighing systems, the HI 1756-2WS operates as part of a tightly integrated measurement and control loop. When performing scheduled maintenance or responding to a fault, experienced maintenance engineers know that inspecting adjacent components at the same time dramatically reduces the risk of repeat shutdowns.

When replacing or inspecting the HI 1756-2WS, it is standard practice to simultaneously verify the condition of the 1756-PA72 or 1756-PB72 power supply module, which provides backplane power to the entire chassis. A degraded power supply is a common root cause of intermittent module faults and erratic scale readings. Alongside the power supply, the 1756-A7 or 1756-A13 chassis backplane should be inspected for connector wear, especially in high-vibration environments typical of batching and conveyor applications.

The load cell signal path is equally critical. Inspect and, where necessary, replace the HARDY HI 215TD junction box or equivalent summing card that aggregates signals from multiple load cells before they reach the HI 1756-2WS. Damaged or moisture-ingressed junction boxes are a frequent source of calibration drift that is often misdiagnosed as a module fault. Similarly, the load cell cables and shielded signal wiring between the junction box and the module should be checked for insulation damage, connector corrosion, and proper grounding — particularly in washdown or chemically aggressive environments.

On the control side, verify the 1756-L7x or 1756-L8x ControlLogix controller firmware version for compatibility with the HI 1756-2WS Add-On Profile (AOP). Outdated firmware can cause communication faults that mimic hardware failure. If your system uses 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules for remote I/O or SCADA integration, confirm that network latency and module health are within specification, as network instability can affect real-time weight data transmission.

For facilities running parallel weighing lines, maintaining a spare HARDY HI 1756-1WS single-channel weigh scale module alongside the dual-channel HI 1756-2WS provides flexible coverage across different chassis configurations. Additionally, if your process involves hazardous area weighing, review whether HARDY HI 4050 or HI 6500 series weight controllers are used as standalone backup measurement devices — these should be included in the same calibration and inspection cycle.

Finally, document all calibration coefficients, zero offsets, and span values stored in the HI 1756-2WS before removal. These parameters, typically managed through Studio 5000 or the HARDY Web Interface, must be restored or re-verified after module replacement to ensure measurement accuracy is maintained without a full recalibration cycle.

Strategic Replacement Solutions

The HARDY HI 1756-2WS is a direct replacement for aging or failed weigh scale modules within the 1756 ControlLogix platform. Because it slots directly into the standard 1756 backplane and uses the same Add-On Profile structure as earlier HARDY 1756-series modules, replacement does not require PLC program restructuring or hardware redesign — a critical advantage when minimizing planned downtime windows.

For facilities operating legacy systems where the original HI 1756-2WS has been discontinued from primary distribution channels, sourcing a verified original spare from a specialist supplier like TOPNLMS is the most reliable path to maintaining system continuity. Counterfeit or refurbished modules without proper testing documentation introduce calibration uncertainty and warranty risk that is unacceptable in regulated industries such as food and beverage, pharmaceuticals, and chemical processing.

Our pre-shipment testing protocol verifies backplane communication, channel isolation, A/D conversion accuracy, and excitation voltage output before any unit leaves our facility. Combined with the 12-month warranty, this gives maintenance teams and procurement managers the confidence to stock the HI 1756-2WS as a long-term spare without concern about shelf-life degradation of functionality.

For facilities planning a phased migration from older ControlLogix generations to newer 1756-L8x platforms, the HI 1756-2WS remains fully compatible, protecting your existing investment in load cell infrastructure and calibration data while the broader system upgrade is planned and budgeted.

Support FAQ

Q1: Is the HARDY HI 1756-2WS compatible with both 1756-L7x and 1756-L8x ControlLogix controllers?
Yes. The HI 1756-2WS is compatible with the full range of 1756 ControlLogix controllers, including L7x and L8x series, provided the correct HARDY Add-On Profile (AOP) version is installed in Studio 5000. We recommend verifying your firmware version against the HARDY compatibility matrix before installation.

Q2: What pre-shipment testing is performed on each HI 1756-2WS unit?
Every unit shipped by TOPNLMS undergoes a full functional test covering backplane communication, dual-channel A/D conversion accuracy, load cell excitation voltage, and channel isolation. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: How should I manage HI 1756-2WS spare inventory for a multi-line facility?
For facilities with two or more weighing lines, we recommend maintaining a minimum of one HI 1756-2WS as a hot spare per chassis configuration. Given typical MTBF data for precision measurement modules in continuous-duty environments, a 12–18 month replenishment cycle is standard practice. Bulk procurement pricing is available — contact us at [email protected] for volume quotes.

Q4: Can the HI 1756-2WS replace an older HARDY weigh scale module without recalibration?
In most cases, if calibration coefficients (zero, span, and filter settings) are backed up from the outgoing module via Studio 5000 or the HARDY Web Interface prior to removal, these values can be restored to the replacement module, significantly reducing recommissioning time. Full recalibration with certified test weights is still recommended as best practice to confirm measurement accuracy after any module swap.
