H&B TZIF3 18211-0-1355200 Ruggedized DCS Interface Module

Product Overview

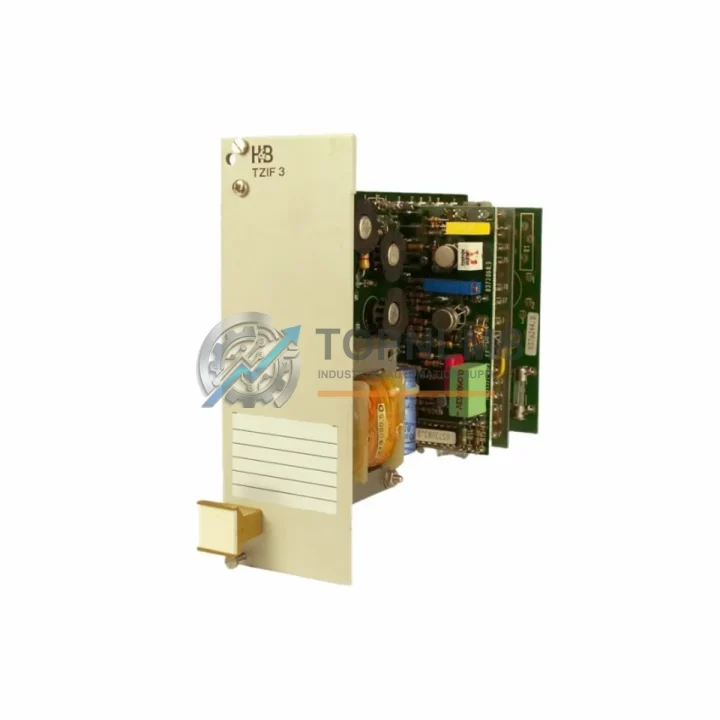

H&B TZIF3 18211-0-1355200 Ruggedized DCS Interface Module for Harsh Environments

The Hartmann & Braun (H&B) TZIF3 18211-0-1355200 is a high-integrity process interface module engineered for the Contronic DCS platform — one of the most proven distributed control system architectures deployed across continuous-process industries worldwide. Designed to operate reliably under extreme thermal cycling, high-humidity atmospheres, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference, this module delivers the signal conditioning and process I/O isolation that mission-critical control loops demand without compromise.

In heavy industrial environments — oil refineries, chemical plants, offshore platforms, power generation facilities, and metallurgical operations — the integrity of every field signal passing through the DCS backbone is non-negotiable. The TZIF3 18211-0-1355200 serves as the hardened bridge between field instrumentation and the Contronic controller tier, ensuring that 4–20 mA analog loops, thermocouple inputs, and RTD signals are accurately conditioned, galvanically isolated, and delivered to the control layer with minimal latency and maximum noise immunity. Its robust PCB conformal coating and sealed housing construction provide reliable protection against corrosive atmospheres and condensation ingress, making it equally suited to tropical coastal installations and cold-climate energy facilities.

Procurement engineers and maintenance planners sourcing Contronic system spares will find the TZIF3 18211-0-1355200 a direct, pin-compatible replacement for aging interface slots within existing Contronic cabinets. No firmware reconfiguration or bus re-addressing is required for like-for-like substitution, dramatically reducing planned maintenance windows and eliminating unplanned downtime risk.

Rugged Specifications Table

Comprehensive Protection Solutions

The TZIF3 18211-0-1355200 does not operate in isolation — it is one node in a tightly integrated Contronic control architecture. In a fully configured Contronic cabinet, this interface module works in concert with the Contronic TZIF2 process interface modules handling adjacent I/O channels, while Contronic TZAK power supply modules deliver the stable, filtered DC rail that keeps every card in the rack operating within specification even when upstream mains quality is poor. The Contronic TZCP central processor modules execute the control strategy, relying on accurate, low-jitter data from interface cards like the TZIF3 to maintain loop stability in fast-responding processes such as burner management and compressor surge control.

On the field side, the module interfaces with HART-compatible field transmitters and two-wire 4–20 mA pressure and temperature sensors commonly deployed across process pipelines. Within the control cabinet, Contronic TZKOM communication modules relay processed data upstream to SCADA and historian systems, while Contronic TZDIO digital I/O modules handle discrete valve and actuator feedback signals in parallel. Phoenix Contact or Weidmüller terminal blocks — standard in Contronic panel builds — provide the field wiring termination points that connect directly to the interface module’s signal inputs. For installations requiring functional safety compliance, Contronic safety-rated SIL modules are deployed alongside standard interface cards to form a layered protection architecture. Surge protection devices such as MTL or Pepperl+Fuchs Zener barriers and galvanic isolators are frequently installed upstream of the TZIF3 in hazardous-area applications, ensuring that transient energy from the field cannot propagate into the DCS backplane.

Application in Critical Infrastructure

The H&B Contronic platform — and the TZIF3 18211-0-1355200 interface module within it — has accumulated decades of field-proven service across the world’s most demanding process industries. In oil and gas upstream and midstream facilities, Contronic systems govern wellhead pressure monitoring, pipeline flow metering, and compressor station control, where the TZIF3 provides the reliable analog signal conditioning that keeps safety instrumented systems informed of real-time process conditions. Offshore platform installations subject the module to salt-laden humid air, constant mechanical vibration from rotating machinery, and aggressive EMI from high-power radio and radar equipment — conditions the TZIF3’s hardened design is specifically built to withstand.

In coal-fired and gas-fired power generation plants, Contronic DCS systems manage boiler combustion control, turbine governor loops, and feedwater regulation. The TZIF3 interface module handles the thermocouple and RTD inputs from furnace temperature sensors, translating raw millivolt signals into calibrated process values with the accuracy that combustion efficiency optimization demands. Water and wastewater treatment facilities rely on Contronic systems for dosing pump control, clarifier management, and effluent quality monitoring — environments where the module must perform reliably through seasonal temperature swings and high-humidity pump rooms. In metallurgical and steel mill applications, the module operates adjacent to high-current induction furnaces and arc furnaces that generate extreme electromagnetic fields, making its galvanic isolation and EMI-hardened signal paths essential to measurement integrity. Chemical and petrochemical plants running continuous 24/7 production schedules depend on Contronic interface modules for reactor temperature profiling and distillation column control, where any signal dropout translates directly into product quality loss or safety system activation.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the TZIF3 18211-0-1355200?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to its published specification within the warranty period, TOPNLMS will arrange repair, replacement, or credit at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling.

Q2: How is each unit tested before shipment?
Every TZIF3 18211-0-1355200 unit undergoes pre-shipment functional verification including power-on self-test, signal path continuity checks, and visual inspection for PCB integrity and connector condition. Refurbished units are additionally subjected to burn-in testing to screen for early-life failures before dispatch. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all Contronic DCS cabinet generations?
The TZIF3 18211-0-1355200 is designed for the H&B Contronic backplane architecture and is compatible with standard Contronic rack configurations. It provides direct pin-compatible replacement for equivalent TZIF3-series slots without requiring bus re-addressing or software reconfiguration. For mixed-generation Contronic installations or non-standard cabinet builds, our technical team can confirm compatibility based on your cabinet model and firmware revision prior to order.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains dedicated inventory of Contronic series spare parts to support long-term maintenance programs for facilities running legacy H&B DCS systems. We can accommodate blanket purchase orders, scheduled release orders, and emergency expedite requests. For critical infrastructure operators requiring guaranteed supply continuity, contact our team to discuss consignment stock or reserved inventory arrangements.
