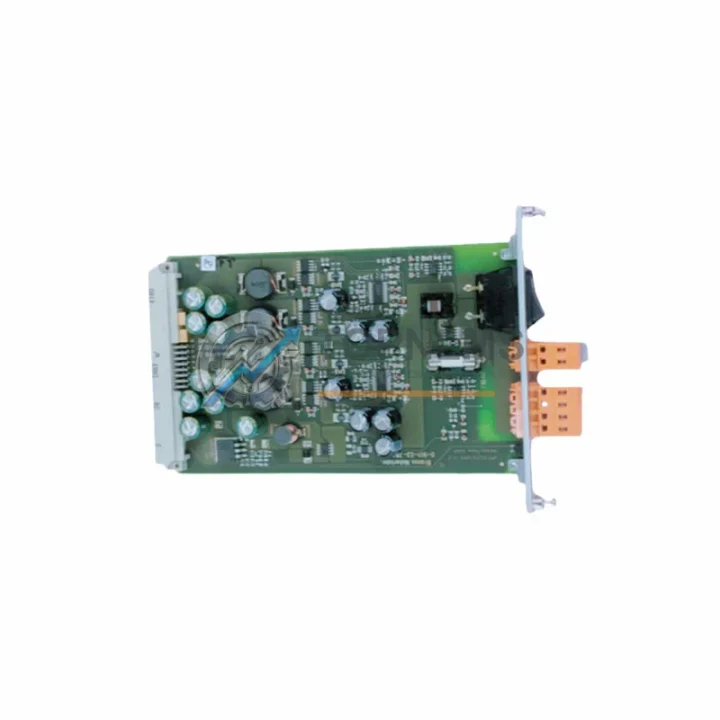

GERMAN POWER CPCI106-3512-24-DC/DC Replacement for CPCI106

Product Overview

GERMAN POWER CPCI106-3512-24-DC/DC Replacement: Seamless Transition & Legacy System Compatibility

When your existing CompactPCI control system relies on the GERMAN POWER CPCI106-3512-24-DC/DC-CONVERTER and the original unit reaches end-of-life, sourcing a verified drop-in replacement becomes a critical operational priority. Unplanned downtime in industrial environments — whether in railway traction control, defense electronics, telecommunications infrastructure, or process automation — carries significant financial and safety consequences. This replacement module is engineered to restore your CPCI106 Series rack to full operational status with minimal re-engineering effort, preserving your existing wiring harness, backplane connections, and software configuration.

The CPCI106-3512-24-DC/DC-CONVERTER is a CompactPCI (CPCI) form-factor DC/DC power converter module designed for the CPCI106 Series chassis. It accepts a 24 VDC nominal input and delivers regulated output voltages required by the CPU board, I/O modules, and communication cards housed within the same 3U or 6U CompactPCI rack. The module interfaces directly with the PICMG 2.0-compliant backplane, meaning no additional wiring adapters or custom brackets are required for physical installation. Engineers migrating from a failed or obsolete unit can complete the swap during a scheduled maintenance window, reconnect the DC input feed, and restore system power without modifying the rack layout or adjacent modules such as the CPCI106 CPU carrier board, rear I/O transition modules, or the system slot controller card.

For facilities running mixed-generation CompactPCI racks — where some slots are occupied by legacy single-board computers and others by newer PICMG 2.16 Ethernet-based fabric modules — the power budget management provided by this DC/DC converter remains fully compatible. The module’s output regulation tolerances align with the voltage requirements of co-installed components including CompactPCI serial communication modules, MIL-STD-1553 interface cards, and ARINC 429 avionics data bus boards that share the same backplane power rails.

From a system architecture perspective, replacing this converter does not require changes to the host CPU’s VxWorks, LynxOS, or Linux BSP configuration, nor does it affect the IPMI baseboard management controller settings used for remote health monitoring. The physical 3U CompactPCI form factor and standard J1/J2 connector pinout ensure that the replacement module seats correctly in the existing chassis without mechanical modification. This is particularly important in space-constrained control cabinets where adjacent modules — such as the CPCI106 Series timing and synchronization card or the GPS receiver module — leave no room for non-standard mounting solutions.

For procurement teams evaluating this replacement, the sourcing process is straightforward. Units are inspected and function-tested prior to shipment from our Xiamen facility. Each module undergoes input voltage range verification, output load regulation testing, and thermal cycling checks before dispatch. Standard lead time is 3–7 business days for in-stock units, with expedited options available for urgent plant shutdowns. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all international shipments to support customs clearance in the EU, Southeast Asia, and the Americas.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete CPCI106 Series system migration typically involves more than a single module swap. During the retrofit process, engineers commonly address adjacent components to ensure the entire rack operates reliably after the power converter is replaced. The CPCI106 Series CPU single-board computer — which draws regulated power directly from this converter — should be inspected for capacitor aging and BIOS battery condition. If the CPU board is also approaching end-of-life, sourcing a replacement CPCI106 SBC simultaneously reduces future downtime risk.

The rear transition module (RTM) connected via the J3/J4 backplane connector provides the physical I/O breakout for field wiring. Verifying that the RTM’s terminal block assignments remain unchanged after the power module swap is a standard commissioning step. Similarly, the CompactPCI system slot controller — responsible for bus arbitration and clock distribution — should be confirmed operational before closing the chassis.

For racks that include a MIL-STD-1553 dual-redundant data bus interface card or a CPCI106 Series CANbus communication module, the power rail restoration provided by this DC/DC converter directly enables these cards to resume normal protocol operation without re-initialization of the bus controller software. Facilities using a CPCI106-compatible GPS timing module for synchronization will find that the module’s 1PPS output resumes automatically once stable power is restored.

In control cabinets where the CPCI106 rack shares a 24 VDC distribution bus with other equipment — such as a Wago 750-series I/O node, a Phoenix Contact power supply unit, or a Moxa serial device server — verifying the bus voltage under full load after installing the replacement converter is recommended practice before returning the system to production.

Retrofit Guidance FAQ

Q: Does replacing the DC/DC converter require any wiring changes?
A: No. The module connects exclusively via the PICMG 2.0 J1/J2 backplane connector. The 24 VDC input feed to the chassis remains unchanged.

Q: Will the CPU board retain its program and configuration after the swap?
A: Yes. The CPU board’s non-volatile storage (CompactFlash, SATA SSD, or NVRAM) is not affected by a power module replacement. A normal power-on boot sequence will reload the application.

Q: Are there communication protocol compatibility concerns?
A: No. This is a power conversion module with no protocol stack. All communication modules (MIL-STD-1553, CANbus, Ethernet, serial) resume normal operation once stable power is restored.

Q: What if the chassis slot is a different width or depth?
A: The replacement module conforms to the 3U CompactPCI mechanical standard. If your chassis uses a 6U slot, a 6U variant or a 3U-in-6U adapter bracket may be required — contact us to confirm before ordering.

Q: How long does commissioning take after installation?
A: Typically under 30 minutes for a direct swap: seat the module, restore DC input, power on, verify output voltages with a multimeter at the backplane test points, and confirm system boot.

Warranty Assurance

Every CPCI106-3512-24-DC/DC-CONVERTER replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes input voltage sweep (18–36 VDC), full-load output regulation measurement, isolation resistance check, and a 24-hour burn-in cycle. Units that do not meet specification are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides advance replacement support for customers with critical production environments — a replacement unit is dispatched before the defective module is returned, subject to a security deposit. Standard warranty claims are processed within 5 business days of receiving the returned unit. Our after-sales team is reachable via email and phone during China Standard Time business hours, with response times under 24 hours for warranty inquiries.

Procurement documentation including test reports, packing lists, and certificates of conformance is available upon request for quality management system (QMS) compliance purposes.
