Generic CDE34.006.WXX.PC1 Replacement for CDE34 Series: Smooth Migration & Legacy System Upgrade

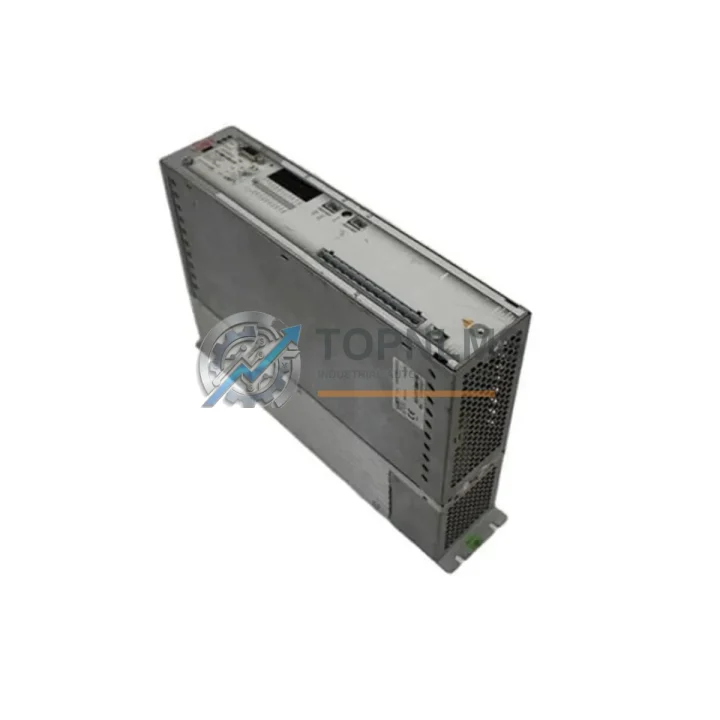

Upgrading or replacing a failed CDE34.006.WXX.PC1 AC Servo Drive no longer requires a full system overhaul. This drop-in replacement module is engineered to deliver seamless compatibility with existing CDE34 Series servo systems, preserving your original wiring topology, panel-mount footprint, and motion control logic while eliminating the risks associated with discontinued or end-of-life components.

Industrial facilities running legacy servo systems face a common challenge: the original drive is discontinued, lead times from the OEM stretch to months, and every day of downtime translates directly into production losses. The CDE34.006.WXX.PC1 replacement addresses this precisely — it is stocked, tested, and ready to ship from our Xiamen warehouse, with a guaranteed 12-month warranty and full pre-shipment functional verification.

This 6A panel-mount motion controller is designed for direct substitution in servo axis applications where the original CDE34 Series drive has failed, aged out, or become unavailable. Engineers familiar with the CDE34 platform will find the connector pinout, DIP switch configuration, and parameter structure consistent with the original, reducing re-commissioning time to a minimum. In most retrofit scenarios, no changes to the existing servo motor wiring or encoder feedback cable are required.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful servo drive replacement rarely involves the drive alone. In practice, the migration from a failed or obsolete CDE34.006.WXX.PC1 to a fully operational axis requires careful coordination of the surrounding system components. During commissioning, engineers typically verify the integrity of the servo motor power cable and encoder feedback cable — both of which connect directly to the drive’s CN1 and CN2 terminals. If the existing cables show insulation degradation or connector wear, replacing them at the same time as the drive eliminates a common source of post-installation faults.

On the controller side, the CDE34.006.WXX.PC1 receives position commands via pulse-direction signals from an upstream motion controller or PLC — commonly a Mitsubishi Q-series or FX5U PLC, a Siemens S7-1200 with TO (Technology Object) axis configuration, or a dedicated multi-axis motion controller card installed in the control cabinet. Verifying that the pulse output frequency and signal voltage levels of the host controller are within the drive’s accepted input range is a critical pre-commissioning step.

For systems where the original drive communicated over RS-485 using Modbus RTU, the replacement unit supports the same protocol, allowing existing SCADA or HMI programs — including those running on Weintek or Proface HMI panels — to communicate without modification. The station address and baud rate parameters are set via the drive’s front-panel keypad or through a USB-to-RS232 programming cable, which is available as an accessory and recommended for first-time parameter upload.

In multi-axis control cabinets, the CDE34.006.WXX.PC1 is typically mounted alongside other CDE34 Series drives — such as the CDE34.010.WXX.PC1 (10A) or CDE34.020.WXX.PC1 (20A) variants — sharing a common 24VDC control power supply and a shared regenerative braking resistor. When replacing a single axis drive, it is advisable to inspect the shared power supply output voltage and the braking resistor condition, as degraded components in these shared circuits can cause the replacement drive to fault immediately after power-up.

For applications requiring electrical isolation between the PLC output signals and the drive’s pulse input — particularly in environments with significant electrical noise from variable frequency drives or welding equipment — a signal isolator or optocoupler terminal block module inserted between the controller and the CDE34 drive input terminals provides reliable noise immunity without requiring changes to the control program. Similarly, DIN-rail mounted terminal blocks used in the original wiring harness can be reused directly, preserving the existing field wiring.

If the retrofit involves migrating from an older, non-networked servo system to one with fieldbus connectivity, the CDE34.006.WXX.PC1 can serve as an interim solution while the broader system architecture is upgraded — for example, while transitioning the host controller to a CANopen or EtherCAT-capable motion controller in a phased modernization plan.

Retrofit Guidance FAQ

Q: Can I reuse the existing motor wiring without modification?
A: Yes. The replacement CDE34.006.WXX.PC1 uses the same connector pinout as the original. The servo motor power cable (U/V/W/PE) and encoder feedback cable connect to identical terminal positions. No rewiring is required in standard replacement scenarios.

Q: Will my existing PLC program need to be modified?
A: No. The drive accepts the same pulse-direction or analog command signals as the original. If your PLC or motion controller was already tuned for the CDE34 axis, the existing program and axis parameters can be retained. Only servo gain parameters may require minor re-tuning after mechanical installation.

Q: Is the RS-485 Modbus RTU communication protocol compatible?
A: Yes. The replacement unit supports RS-485 Modbus RTU with the same register map structure as the CDE34 Series. Existing HMI or SCADA communication configurations do not need to be rewritten.

Q: Does the replacement fit the original panel cutout?
A: Yes. The physical dimensions and panel-mount footprint are identical to the original CDE34.006.WXX.PC1. No panel modification, additional brackets, or spacers are required.

Q: What if the drive faults immediately after installation?
A: The most common causes are shared power supply voltage out of tolerance, a degraded regenerative braking resistor, or encoder cable continuity issues. Our technical team provides post-sale commissioning support via email and phone to assist with fault diagnosis.

Q: How long does shipping take?
A: Orders are processed and dispatched within 1–3 business days from our Xiamen warehouse. International express shipping (DHL / FedEx) typically delivers within 3–7 business days depending on destination.

Warranty Assurance

Every CDE34.006.WXX.PC1 replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional verification test covering power-on self-test, control signal response, and communication interface integrity. Units that do not pass this test are not shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our support team at [email protected] or +86 18359293191 with your order number and a description of the fault. Replacement units are dispatched promptly, and defective units are returned for root-cause analysis. We do not require customers to wait for return receipt before dispatching a replacement in confirmed warranty cases.

Our procurement guarantee includes accurate product labeling, original or equivalent-grade components, and full traceability documentation upon request. For B2B buyers requiring batch procurement, consignment stock arrangements, or vendor qualification documentation, please contact our sales team directly.

TOPNLMS maintains stock of CDE34 Series components and related industrial automation parts to support ongoing maintenance programs. We understand that production continuity depends on reliable spare parts availability, and we are committed to providing that reliability.
