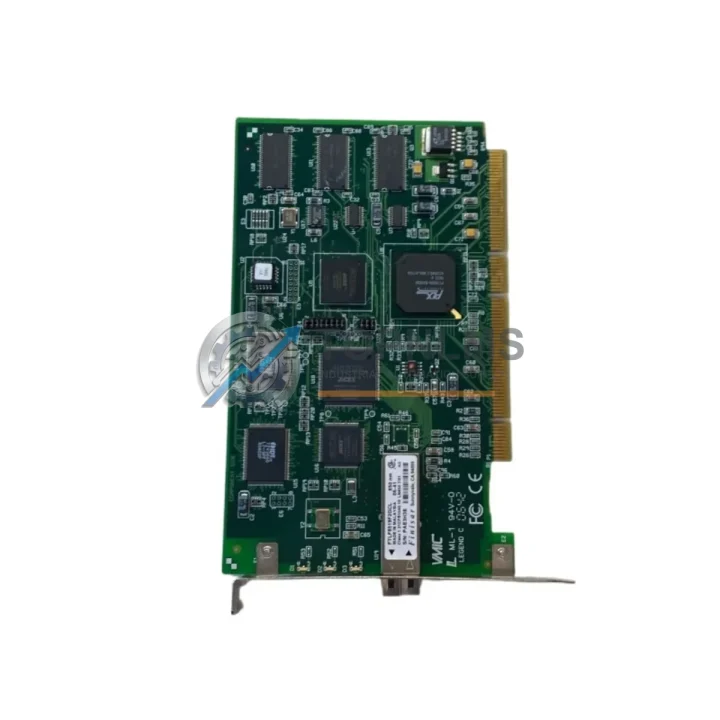

GE VMIPCI-5565-110000 Ruggedized Reflective Memory Module

Product Overview

GE VMIPCI-5565-110000 Ruggedized Reflective Memory Module: Industrial Resilience for Harsh Environments

The GE VMIPCI-5565-110000 is a high-performance PCI Reflective Memory Node engineered by GE Intelligent Platforms for mission-critical industrial automation environments where data integrity, deterministic latency, and continuous uptime are non-negotiable. Featuring a 64MB shared memory capacity and a fiber-optic ring interface, this module delivers ultra-low-latency, broadcast-based memory sharing across distributed control nodes — without the overhead of traditional network protocols. It is purpose-built to operate reliably in the most demanding industrial conditions, including high-temperature process floors, high-humidity coastal facilities, heavy-dust mining operations, high-vibration press lines, and electromagnetically noisy power generation environments.

In modern industrial control architectures, real-time data sharing between PLC controllers, DCS subsystems, and supervisory nodes is the backbone of safe and efficient production. The VMIPCI-5565-110000 fulfills this role by providing a deterministic, shared-memory fabric that eliminates polling delays and network jitter. Whether integrated into a Siemens SIMATIC S7 PLC rack, a Rockwell Automation ControlLogix chassis, or a GE Mark VIe turbine control system, this reflective memory node ensures that every node on the fiber-optic ring sees the same data simultaneously — a critical requirement for synchronized multi-axis motion control, safety interlock systems, and high-speed process regulation.

Rugged Specifications Table

Comprehensive Protection Solutions

The VMIPCI-5565-110000 does not operate in isolation — it is a cornerstone component within a broader, layered industrial control architecture. In a typical heavy-industry control cabinet, this reflective memory node works in concert with a range of complementary automation hardware to deliver system-wide resilience.

At the controller level, it integrates seamlessly with GE Intelligent Platforms’ own VMIVME-7807RC single-board computer and VMIVME-5588 VMEbus reflective memory nodes, enabling mixed PCI/VME ring topologies that are common in legacy turbine and compressor control upgrades. For facilities running Rockwell Automation infrastructure, the VMIPCI-5565-110000 can coexist on the same fiber ring as ControlLogix 1756-series I/O modules, providing a bridge between legacy reflective memory architectures and modern EtherNet/IP-based control systems.

In DCS environments — particularly those built on Emerson DeltaV or Honeywell Experion PKS — the module serves as a high-speed data concentrator, feeding real-time process values to historian nodes and safety instrumented systems (SIS) without introducing scan-cycle latency. This is especially valuable when paired with Phoenix Contact QUINT-series industrial power supplies, which provide the stable, low-ripple 5V and 12V DC rails that PCI-bus cards require for error-free memory transactions under load.

For applications involving variable-speed drives and motor control, the VMIPCI-5565-110000 enables deterministic feedback loops between ABB ACS880 series variable frequency drives and the supervisory PLC, ensuring that torque and speed references are updated within microseconds — a requirement in continuous casting lines and rolling mills where speed mismatch causes product defects or equipment damage. Similarly, in safety-critical zones classified under IEC 61511 or IEC 62061, the module’s fiber-optic isolation makes it compatible with Pilz PNOZmulti safety relay architectures, where galvanic isolation between control and safety layers is mandatory.

Communication integrity is further reinforced when the VMIPCI-5565-110000 is deployed alongside Moxa NPort industrial serial device servers and Hirschmann MICE series managed industrial Ethernet switches, which handle the Modbus RTU and PROFINET traffic that runs parallel to the reflective memory ring. Terminal blocks from the Weidmüller KLIPPON series and surge protection modules from Phoenix Contact TRABTECH complete the cabinet-level protection picture, ensuring that transient overvoltages from nearby motor starts or lightning events do not propagate into the sensitive PCI bus environment.

Application in Critical Infrastructure

The VMIPCI-5565-110000 has established a proven track record across the most demanding sectors of critical infrastructure worldwide.

Oil & Gas: In offshore platform topside control systems and onshore SCADA architectures, reflective memory networks built around the PCI-5565 series provide the sub-millisecond data sharing required between emergency shutdown (ESD) controllers and process control systems. The fiber-optic medium is inherently immune to the high levels of RF interference generated by drilling equipment and high-power radio communications, making it the preferred interconnect in ATEX and IECEx classified zones.

Power Generation: Gas turbine and steam turbine control systems — including GE’s own Mark VIe platform — rely on reflective memory for inter-controller synchronization. The VMIPCI-5565-110000 enables seamless integration of third-party condition monitoring systems with the primary turbine controller, allowing vibration, temperature, and bearing data to be shared in real time without impacting control loop performance.

Mining & Minerals Processing: In underground and open-pit mining operations, control systems face extreme dust ingress, mechanical shock, and wide temperature swings. The fiber-optic ring topology of the PCI-5565 series eliminates the copper-based signal degradation that plagues conventional fieldbus installations in these environments. Conveyor control systems, crusher automation, and flotation cell management all benefit from the deterministic, high-bandwidth data fabric this module provides.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require continuous, uninterrupted control of pumping stations, chemical dosing systems, and filtration processes. The VMIPCI-5565-110000 supports redundant ring configurations that automatically bypass a failed node, ensuring that a single hardware fault does not interrupt the control loop — a critical feature in facilities operating under environmental compliance mandates.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting environments, the electromagnetic interference generated by high-current bus bars and induction heating systems is severe enough to corrupt conventional copper-based communication links. The VMIPCI-5565-110000’s fiber-optic isolation provides complete immunity to these interference sources, enabling reliable real-time control of mold oscillation, casting speed, and cooling water flow — parameters where microsecond-level control accuracy directly impacts product quality and yield.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the VMIPCI-5565-110000?
All VMIPCI-5565-110000 units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions. Our quality assurance team performs incoming inspection and functional verification on every unit before dispatch, including PCI bus enumeration testing, memory read/write verification, and fiber-optic transceiver power output measurement.

Q2: How is each unit tested before shipment?
Every VMIPCI-5565-110000 undergoes a structured pre-shipment test protocol: (1) visual inspection for physical damage and component integrity; (2) PCI slot insertion and OS-level device enumeration; (3) full 64MB memory write/read cycle verification using GE’s VMIC diagnostic utilities; (4) fiber-optic TX/RX power level measurement to confirm transceiver performance within specification. A test report is available upon request for customers with traceability requirements.

Q3: Is the VMIPCI-5565-110000 compatible with my existing PCI-5565 ring network?
Yes. The VMIPCI-5565-110000 is fully compatible with all other nodes in the GE PCI-5565 and VMIVME-5565 reflective memory family, regardless of memory size variant (16MB, 32MB, 64MB, 128MB, 256MB). Mixed-memory-size rings are supported — each node accesses the memory range of the smallest node on the ring. The module is also backward-compatible with the earlier VMIPCI-5565 (without the -110000 suffix) in most operating system environments.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS maintains dedicated inventory of GE Intelligent Platforms / Abaco Systems reflective memory modules, including the VMIPCI-5565-110000 and related variants. We support both spot purchases and scheduled blanket orders for MRO and capital project procurement. Our team can provide lead-time commitments, certificate of conformance documentation, and country-of-origin declarations to satisfy procurement compliance requirements. Contact us at [email protected] or +86 18359293191 for availability and pricing.
