GE IS230SNRTH2A Replacement for Mark VI RTD Input

Product Overview

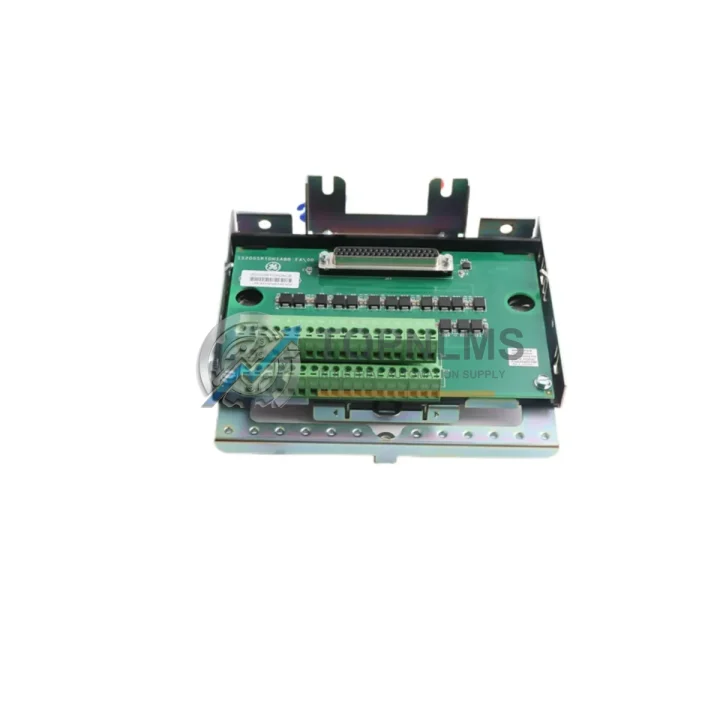

GE IS230SNRTH2A Replacement for Mark VI RTD Input: Seamless Turbine Control System Upgrade

The GE IS230SNRTH2A is a critical RTD (Resistance Temperature Detector) input module designed for the GE Mark VI Turbine Control System — one of the most widely deployed distributed control platforms in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. As GE progressively transitions its turbine control portfolio toward the Mark VIe platform, many plants operating legacy Mark VI systems face an urgent challenge: sourcing reliable, specification-accurate replacement modules to sustain uptime without committing to a full control system overhaul.

TOPNLMS supplies the IS230SNRTH2A as a verified drop-in replacement and upgrade solution for facilities managing aging Mark VI hardware. Whether your plant is dealing with a failed module, a planned maintenance window, or a phased migration strategy, this module is stocked, tested, and ready to ship from our Xiamen warehouse with a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the IS230SNRTH2A within a live Mark VI system rarely occurs in isolation. A successful retrofit typically involves coordinating several interconnected hardware components to ensure the entire control loop remains stable during and after the swap.

On the I/O side, the IS230SNRTH2A interfaces directly with the STSR terminal board (or equivalent JR/JS/JT series terminal boards), which routes field wiring from RTD sensors installed on turbine bearing housings, exhaust sections, and inlet guide vane assemblies. If the terminal board shows signs of corrosion or connector wear, it is advisable to replace it concurrently with the RTD input module to avoid intermittent signal faults post-commissioning.

The Mark VI system’s communication backbone relies on the IONet Ethernet switch module — typically the IS200EMIOH1A or equivalent — to relay real-time temperature data from the IS230SNRTH2A to the VCMI (VME Communication Module Interface) controller board. If your plant is experiencing latency or packet loss on the IONet segment, this is the appropriate time to inspect and potentially replace the IONet switch alongside the RTD module.

For plants running a TMR (Triple Modular Redundant) Mark VI configuration, the IS230SNRTH2A is typically installed in triplicate across the R, S, and T I/O racks. Replacing only one of the three modules without verifying the health of the remaining two can introduce voting logic discrepancies. TOPNLMS recommends sourcing a matched set of three IS230SNRTH2A units for TMR applications to maintain system symmetry and avoid nuisance trips.

On the controller side, the IS215VCMIH2A VCMI module or its successor handles the aggregation of all I/O data including RTD inputs. If your Mark VI system is running firmware older than version 05.02, a firmware update on the VCMI may be required to correctly enumerate the IS230SNRTH2A after installation. TOPNLMS can advise on firmware compatibility based on your system’s current build.

For facilities considering a partial migration toward the Mark VIe platform, the IS230SNRTH2A can serve as a bridging solution — maintaining RTD input functionality on the legacy Mark VI rack while other I/O modules are progressively upgraded to Mark VIe-compatible equivalents such as the IS200ERTDH2A. This phased approach minimizes the capital expenditure of a full cutover while extending the operational life of the existing control cabinet infrastructure.

Power distribution within the Mark VI cabinet is managed by the IS200EPSMH1A power supply module. Before installing the IS230SNRTH2A, verify that the backplane power rails are within specification (28 VDC ±5%). A degraded power supply module is a common root cause of RTD input module failures and should be ruled out before the replacement is commissioned.

Finally, if your site uses a GE Cimplicity HMI or a third-party SCADA system connected to the Mark VI via Modbus TCP or OPC-DA, no changes to the communication configuration are required when replacing the IS230SNRTH2A on a like-for-like basis. The module’s IONet address and I/O point mapping remain identical, ensuring that historian tags, alarm setpoints, and trend displays in the HMI continue to function without reconfiguration.

Retrofit Guidance FAQ

Q: Does replacing the IS230SNRTH2A require any changes to the Mark VI application program (ToolboxST)?
A: No. A like-for-like replacement of the IS230SNRTH2A does not require modifications to the ToolboxST application. The module’s I/O block assignments, RTD channel configurations, and engineering unit scaling are stored in the controller, not the module itself. After physical installation, the Mark VI system will automatically re-enumerate the module on the IONet segment.

Q: Is the IS230SNRTH2A backward compatible with older Mark VI rack revisions?
A: Yes. The IS230SNRTH2A is designed to fit all standard Mark VI I/O rack slot positions. It is backward compatible with earlier rack revisions provided the backplane connector and power rail specifications are within tolerance. TOPNLMS recommends verifying the rack revision label before ordering if your system predates 2005.

Q: Can the IS230SNRTH2A be hot-swapped in a TMR system without shutting down the turbine?
A: In a properly configured TMR Mark VI system, individual I/O modules can be replaced while the turbine remains online, provided the remaining two redundant modules are healthy and the system is not in a degraded voting state. Always consult your site’s maintenance procedures and GE documentation before performing a hot-swap on a live unit.

Q: What RTD wiring configurations are supported?
A: The IS230SNRTH2A supports 2-wire, 3-wire, and 4-wire RTD configurations. The wiring termination is made at the associated terminal board (STSR or JR/JS/JT series). No jumper changes are required on the module itself — channel configuration is handled via ToolboxST software parameters.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, use ToolboxST Diagnostics to confirm the IS230SNRTH2A is enumerated on the IONet segment and that all configured RTD channels are reporting valid engineering unit values. Cross-reference the live temperature readings against a calibrated reference thermometer at the sensor location to validate signal accuracy before returning the unit to service.

Warranty Assurance

Every IS230SNRTH2A unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point inspection process that includes visual examination for physical damage, connector integrity verification, and functional power-on testing where applicable. Units that do not meet our quality standards are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical team at [email protected] with your order number and a description of the fault. We will arrange return shipping and dispatch a replacement unit within 3–5 business days of receiving the defective module. Our goal is to minimize your plant’s exposure to extended downtime caused by a module failure during the warranty period.

For urgent requirements — including same-day dispatch for in-stock units — please contact us directly by phone at +86 18359293191. Our team operates across multiple time zones to support power generation facilities in Asia, the Middle East, Europe, and the Americas.

TOPNLMS maintains a standing inventory of Mark VI I/O modules, including the IS230SNRTH2A, to support both planned maintenance schedules and emergency breakdown situations. We understand that turbine control system downtime carries significant financial consequences, and our procurement model is designed to provide fast, reliable access to verified replacement hardware without the lead times associated with OEM channels.
