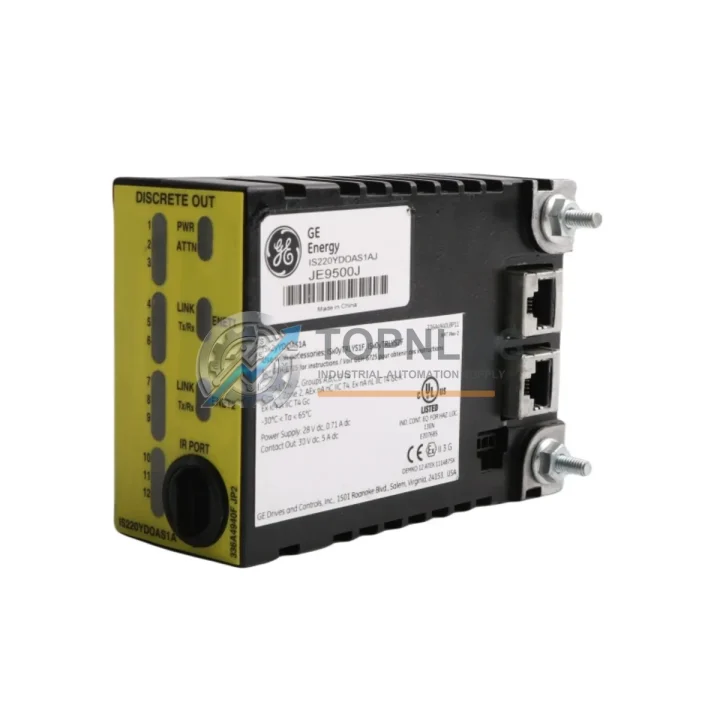

GE IS220YDOAS1A Replacement for Mark VIe DCS

Product Overview

GE IS220YDOAS1A Replacement for Mark VIe DCS: Seamless Transition & Compatibility Upgrade

When your GE Mark VIe turbine control system flags a fault on the IS220YDOAS1A Discrete Output I/O Pack, every hour of unplanned downtime translates directly into lost production and escalating maintenance costs. Whether you are migrating from an aging Mark V or Mark VI platform, replacing a failed module in an active Mark VIe rack, or consolidating spare-parts inventory ahead of a planned outage, the IS220YDOAS1A is the factory-specified discrete output module for the Mark VIe distributed control architecture — and TOPNLMS maintains verified stock ready for immediate dispatch.

The IS220YDOAS1A occupies a standard Mark VIe I/O pack slot and interfaces directly with the VCMI or VCRC controller cards via the high-speed IONET Ethernet backbone. Its 24 VDC discrete output channels drive solenoid valves, relay coils, motor starters, and annunciator panels without requiring any intermediate signal conditioning. Field wiring connects through the companion terminal board — typically the IS200YTBAS1A or IS200YTBCH1A — meaning that in a like-for-like swap, no rewiring of the marshalling cabinet is necessary. The module’s firmware version is auto-negotiated during rack initialization, which eliminates the manual EEPROM programming steps that complicated earlier Mark V I/O board replacements.

For sites upgrading from Mark V VCMI-based architectures, the transition to IS220YDOAS1A within a Mark VIe frame requires attention to three areas: the rack backplane (IS200ERACH1A or equivalent), the controller redundancy configuration (simplex, dual, or TMR), and the ToolboxST application software version. TOPNLMS technical staff can advise on compatibility between your existing ToolboxST project file and the target firmware baseline before shipment, reducing the risk of a configuration mismatch during commissioning.

Sites running mixed-generation turbine fleets — for example, a plant with both Mark VI and Mark VIe frames on the same IONET segment — frequently source IS220YDOAS1A modules as a standardization measure, retiring the older IS200-series discrete output boards and consolidating to a single spare-parts SKU. This approach reduces the number of unique line items in the maintenance storeroom and simplifies technician training, since the IS220YDOAS1A shares the same physical form factor and connector pinout as other IS220Y-series I/O packs such as the IS220YAICS1A analog input module and the IS220PSVOH1A power supply module.

In turbine control cabinets where space is constrained, the IS220YDOAS1A’s compact I/O pack form factor is a significant advantage over legacy relay-output boards. The module mounts directly onto the Mark VIe I/O rack without additional DIN-rail hardware, and its integrated diagnostics — accessible through ToolboxST — report channel-level faults, output-load monitoring, and communication health in real time. This eliminates the need for external signal isolators or loop-powered indicators that were common workarounds in Mark IV and Mark V installations.

For plants executing a phased migration from a third-party DCS — such as a Honeywell TDC 3000, ABB Advant, or Siemens TELEPERM system — to a GE Mark VIe platform, the IS220YDOAS1A is typically one of the first I/O modules specified during the I/O mapping exercise. Its 24 VDC output voltage and current-sinking topology are compatible with the vast majority of field devices already installed, meaning the existing field cable runs can be reused and only the marshalling terminations need to be re-landed on the IS200YTBAS1A terminal board. This significantly reduces the civil and cabling scope of the migration project.

Procurement teams evaluating the IS220YDOAS1A should also consider the associated IS220YDOAS1B revision, which introduced enhanced surge protection on the output drivers. TOPNLMS stocks both revisions and can confirm which revision is compatible with your specific rack firmware and ToolboxST baseline. Companion modules commonly ordered alongside the IS220YDOAS1A include the IS220YAICS1A (analog input), IS220PSVOH1A (power supply), IS220UCSAH1A (universal controller), IS200ERACH1A (rack backplane), and IS200YTBAS1A (terminal board) — all of which are available from TOPNLMS stock.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IS220YDOAS1A installation rarely involves a single module in isolation. In practice, the Mark VIe I/O pack ecosystem requires a coordinated set of components to achieve a fully operational and maintainable control loop. The IS200YTBAS1A terminal board provides the field-wiring interface and must be matched to the IS220YDOAS1A revision; mismatched revisions can cause connector-key conflicts that prevent physical installation. The IS200ERACH1A rack backplane distributes IONET communications and 28 VDC power to all installed I/O packs, and its slot assignments must be configured in ToolboxST before the IS220YDOAS1A will enumerate on the network.

Power integrity is critical in Mark VIe cabinets. The IS220PSVOH1A power supply module provides the regulated 28 VDC rail that feeds the I/O rack; sites with aging power supplies should consider replacing the IS220PSVOH1A concurrently with the IS220YDOAS1A to avoid a secondary failure shortly after commissioning. On the controller side, the IS220UCSAH1A universal controller card manages I/O pack polling and executes the turbine control application; its firmware version must be compatible with the IS220YDOAS1A I/O pack firmware to avoid communication timeouts.

For sites that also need to upgrade analog measurement loops during the same outage window, the IS220YAICS1A analog input module shares the same rack slot form factor and IONET interface, allowing both discrete output and analog input upgrades to be completed in a single planned maintenance window. Communication integrity between the Mark VIe controller and the plant DCS or historian is maintained through the IS220PAICH1A or equivalent communication gateway module, which should be verified for compatibility with the updated I/O pack firmware baseline. Where signal isolation between field devices and the I/O pack is required — for example, in high-voltage or intrinsically safe zones — a DIN-rail-mounted signal isolator such as the Phoenix Contact MACX MCR series can be installed on the IS200YTBAS1A terminal board without modifying the IS220YDOAS1A itself.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing a Mark V discrete output board with the IS220YDOAS1A?
A: In most cases, yes — provided your field devices operate at 24 VDC. The IS220YDOAS1A outputs are current-sinking 24 VDC. If your legacy board drove 120 VAC loads, intermediate relay modules will be required at the terminal board level.

Q: Do I need to modify my ToolboxST project to add the IS220YDOAS1A?
A: Yes. The IS220YDOAS1A must be defined in the ToolboxST I/O configurator with the correct rack slot assignment and terminal board type. TOPNLMS can provide the module datasheet and ToolboxST configuration reference to support your engineering team.

Q: Is the IS220YDOAS1A compatible with both simplex and TMR Mark VIe controller configurations?
A: Yes. The module supports simplex, dual, and TMR redundancy configurations. The redundancy mode is defined at the controller level in ToolboxST and does not require hardware changes to the IS220YDOAS1A itself.

Q: What is the physical installation space requirement?
A: The IS220YDOAS1A occupies one standard Mark VIe I/O pack slot on the IS200ERACH1A rack. No additional DIN-rail space is required. Ensure the rack has an available slot and that the slot assignment in ToolboxST matches the physical position.

Q: How do I verify the firmware version of the IS220YDOAS1A before installation?
A: The firmware version is readable via ToolboxST after the module is powered and communicating on IONET. TOPNLMS tests each module prior to shipment and can provide the firmware version on request so your engineering team can confirm compatibility before the module arrives on site.

Q: Can the IS220YDOAS1A replace an IS220YDOAS1B, or vice versa?
A: The A and B revisions are functionally equivalent for most applications, with the B revision adding enhanced output-driver surge protection. Either revision can be used as a replacement for the other in the same rack slot, subject to ToolboxST firmware compatibility. Contact TOPNLMS to confirm which revision is appropriate for your specific system baseline.

Warranty Assurance

Every IS220YDOAS1A shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification test that confirms IONET communication, output channel continuity, and power-rail integrity. Test records are available on request and can be included with the shipping documentation for your maintenance records.

In the event of a warranty claim, TOPNLMS provides a replacement module or full refund within the warranty period. Our after-sales response target is one business day for initial diagnosis and three business days for replacement dispatch. We understand that turbine control system downtime is not measured in days but in production losses per hour, and our logistics process is structured accordingly — with express freight options available to all major industrial regions.

For procurement teams requiring documentation for vendor qualification, TOPNLMS can provide a product authenticity statement, test report, and packing list in advance of shipment. Payment terms, lead times, and freight options are confirmed at the time of order. Stock availability for the IS220YDOAS1A is updated in real time; contact us directly for current inventory levels and delivery commitments.
