GE IS220PSVOH1B Replacement/Upgrade for Mark VIe Series

Product Overview

GE IS220PSVOH1B Replacement/Upgrade for Mark VIe Series: Smooth Migration from Legacy Turbine Control Systems

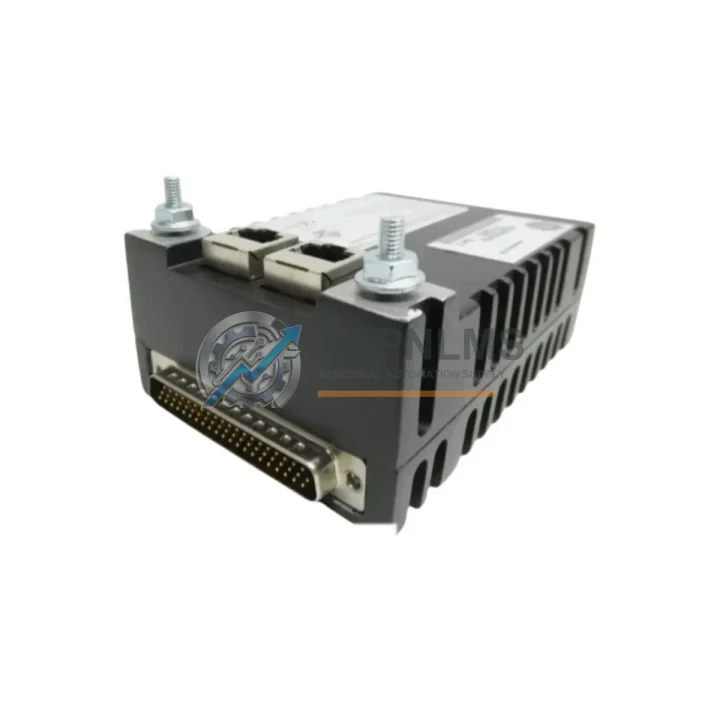

The GE IS220PSVOH1B is a DC Power Supply Module engineered for the GE Mark VIe distributed control platform — one of the most widely deployed turbine control architectures in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. As aging Mark VI and early Mark VIe installations approach end-of-life or face discontinued spare parts availability, plant engineers and procurement teams are actively seeking verified replacement and upgrade solutions that minimize engineering rework, reduce commissioning risk, and maintain operational continuity without extended outage windows.

This IS220PSVOH1B module serves as a direct form-fit-function replacement for failed or degraded power supply assemblies within the Mark VIe I/O rack system. It provides regulated DC power to the I/O pack assemblies, communication modules, and controller boards housed within the Mark VIe cabinet. The module is engineered to interface with the standard Mark VIe backplane, accepting the same connector pinout and power rail configuration as the original factory-installed unit — eliminating the need for custom wiring adapters or panel modifications during field replacement. For facilities managing a planned migration from the older Mark VI platform to the current Mark VIe architecture, this module represents a critical first step in stabilizing the power infrastructure before addressing controller and I/O module upgrades.

TOPNLMS maintains verified stock of the IS220PSVOH1B with same-day inspection and dispatch capability. Each unit is tested prior to shipment and covered by a 12-month warranty, making it a reliable procurement choice for both emergency breakdown replacement and planned MRO stocking programs.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark VIe power supply replacement rarely occurs in isolation. In most turbine control modernization projects, the IS220PSVOH1B is replaced alongside or in conjunction with other critical system components that share the same I/O rack, backplane, and IONet communication infrastructure. Understanding the interdependencies between these modules is essential for planning a low-risk, minimum-downtime upgrade strategy.

In cabinets where the IS220PSVOH1B feeds multiple I/O pack assemblies, it is standard practice to simultaneously inspect the IS220PDIIH1A Digital Input Module and IS220PDOAH1A Digital Output Module for signs of capacitor aging, connector wear, or firmware incompatibility. Replacing these modules as a coordinated set during the same maintenance window reduces the probability of a secondary failure event — particularly important in single-train turbine applications where unplanned downtime carries significant financial consequences measured in lost generation revenue.

The IS215VCMIH2B VME Communication Module manages IONet traffic between the Mark VIe controller and I/O packs. When replacing the power supply module, verifying the communication module’s firmware version and connector integrity ensures that the newly installed IS220PSVOH1B is recognized correctly by the control network without requiring a full system restart or controller re-download. In TMR (Triple Modular Redundant) configurations, each R, S, and T rack maintains its own communication module, and these should be inspected as a set.

For facilities migrating from the older Mark VI platform to Mark VIe, the IS200TSVCH1A Terminal Board and IS200TBCIH1BAA I/O Terminal Board are frequently required to adapt legacy field wiring to the new I/O pack architecture. These terminal boards preserve the existing field cable routing and termination points, allowing the control system upgrade to proceed without disturbing instrument loop wiring — a critical advantage in brownfield retrofit projects where re-cabling would require extended outage windows and additional engineering resources.

Communication infrastructure upgrades often accompany power supply replacements. The IS220UCSAH1A Universal Controller Module and IS215UCVEH2A VME Controller are commonly evaluated during the same engineering review cycle, particularly when the existing controller firmware is no longer supported by GE’s service organization. Upgrading the controller in parallel with the power supply module ensures that the entire I/O rack operates on a consistent, supportable firmware baseline — reducing the risk of version mismatch faults during commissioning.

In applications where the Mark VIe cabinet interfaces with a Bently Nevada 3500 Series vibration monitoring system or a GE EX2100e excitation controller, verifying the integrity of the IS220PSVOH1B power supply is a prerequisite before commissioning the broader system. A degraded or intermittently failing power supply module is a known root cause of spurious I/O pack resets and false trip signals in these integrated architectures. Addressing the power supply first eliminates the most common source of system instability before more complex diagnostic work begins.

For control cabinets requiring signal conditioning between legacy field instruments and the Mark VIe I/O packs, signal isolators and loop-powered transmitter barriers are commonly installed during the same retrofit window. These components protect the I/O pack inputs from ground loops and overvoltage conditions that are more prevalent in older plant wiring infrastructures, extending the service life of the newly installed modules.

Retrofit Guidance FAQ

Q: Does replacing the IS220PSVOH1B require changes to the Mark VIe application program (ToolboxST)?
A: In most standard configurations, a direct module swap does not require ToolboxST application changes. The replacement module is recognized automatically by the I/O pack during power-up. However, if the original module had a non-standard firmware version or custom configuration, a brief online verification using ToolboxST is recommended after installation to confirm all I/O pack assignments are intact.

Q: Is the IS220PSVOH1B compatible with both redundant and simplex Mark VIe configurations?
A: Yes. The module supports both TMR (Triple Modular Redundant) and simplex rack configurations. In TMR systems, each R, S, and T controller rack maintains its own power supply module, and individual modules can be replaced without affecting the redundant controllers — enabling live replacement during normal operation in most plant configurations.

Q: What are the physical installation requirements and cabinet space considerations?
A: The IS220PSVOH1B installs directly into the designated power supply slot of the Mark VIe I/O rack. No additional mounting hardware, DIN rail adapters, or panel modification is required. The module uses the standard Mark VIe backplane connector and is secured with the factory captive screw mechanism. Cabinet space requirements are identical to the original unit — no additional clearance is needed.

Q: Can this module be used to replace units in cabinets with 24 VDC field power distribution?
A: The IS220PSVOH1B provides regulated power to the I/O pack backplane. Field power distribution (24 VDC instrument loops) is managed separately by the site power distribution panel and is not affected by this module replacement. The two power domains are electrically isolated within the Mark VIe cabinet architecture.

Q: What communication protocols does the Mark VIe I/O network use, and is this module compatible?
A: The Mark VIe platform uses IONet, a proprietary Ethernet-based I/O communication protocol operating at 100 Mbps. The IS220PSVOH1B is fully compatible with IONet-based rack architectures and does not require protocol conversion, gateway devices, or network reconfiguration. Existing IONet switch infrastructure and fiber optic cabling are retained without modification.

Q: How should the module be handled during installation to avoid ESD damage?
A: The IS220PSVOH1B contains ESD-sensitive components. Installation personnel should use grounded wrist straps and handle the module by its front panel and ejector handles only. The module should be stored in its original anti-static packaging until immediately before installation. TOPNLMS ships all modules in ESD-protective packaging with appropriate cushioning for transit protection.

Warranty Assurance

Every IS220PSVOH1B unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a structured functional verification process including DC power output testing across the full load range, connector integrity inspection, visual examination for component damage or counterfeit indicators, and firmware version verification where applicable. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage, and each shipment includes a packing list and basic inspection record.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed failure mode. Our technical team responds to warranty inquiries within 1 business day. For time-critical turbine control situations, replacement units can be dispatched before the defective module is returned — we understand that turbine control downtime is measured in lost generation revenue, not just repair costs, and our warranty process is designed to minimize the total duration of the fault condition.

For procurement teams requiring documentation, we can provide functional test reports, packing lists, certificate of conformance, and country of origin documentation upon request. Bulk orders for MRO stocking programs are supported with volume pricing, priority stock allocation, and consolidated shipment options. We accept purchase orders from utilities, EPC contractors, and industrial MRO distributors with established credit terms.
