GE IS220PGENH1A Replacement for Mark VIe Series

Product Overview

GE IS220PGENH1A Replacement for Mark VIe: Smooth Transition from Legacy Generator Protection Systems

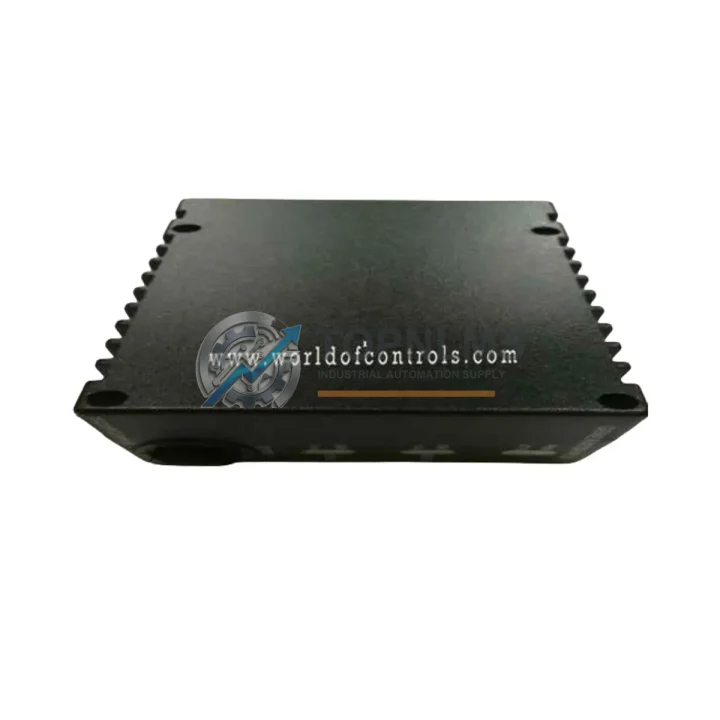

The GE IS220PGENH1A is a Generator Protection I/O Module designed for the GE Mark VIe turbine control platform — one of the most widely deployed distributed control architectures in power generation facilities worldwide. As aging Mark V and Mark VI installations reach end-of-life and OEM support windows close, plant engineers and procurement teams are increasingly sourcing the IS220PGENH1A as a direct replacement or upgrade path to maintain generator protection integrity without committing to a full control system overhaul.

At TOPNLMS, we stock the IS220PGENH1A to support both emergency replacement scenarios and planned maintenance outages. Whether your facility is running a legacy Mark VI turbine control system and migrating incrementally to Mark VIe architecture, or you need a like-for-like swap to restore a tripped protection loop, this module ships from our Xiamen warehouse with full pre-shipment functional verification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a Mark V or Mark VI generator protection system to the Mark VIe platform using the IS220PGENH1A rarely involves a single module swap. In practice, field engineers encounter a cascade of interdependent components that must be evaluated and often replaced in parallel.

The IS220PGENH1A interfaces directly with the Mark VIe IS200 series backplane. If your existing rack is a legacy Mark VI VME chassis, you will need to transition to an IS200-series rack assembly, which also means evaluating your IS200 series power supply module to confirm it delivers the correct 28 VDC rail to the new card. In many retrofit projects, the IS215UCVEH2A controller module (the Mark VIe UCVE) is upgraded simultaneously, as it serves as the primary IONet communication hub that the IS220PGENH1A reports to.

On the field wiring side, the generator protection signals — including voltage transformer inputs, current transformer inputs, and discrete trip/alarm outputs — are typically landed on a dedicated terminal board. The IS200TPROH1B terminal board or equivalent TGBA-series terminal board provides the physical wiring interface between field cables and the IS220PGENH1A. Retaining existing field wiring while swapping only the terminal board and I/O module is one of the most cost-effective migration strategies, as it eliminates the need to re-pull generator protection cabling through the control cabinet.

Communication continuity is another critical consideration. The Mark VIe platform uses IONet — a deterministic Ethernet protocol — to link I/O modules to the controller. If your facility is migrating from a Mark VI system that used an earlier IONet implementation, you may need to verify switch compatibility or replace the IS200 IONet Ethernet switch module within the control cabinet to support the updated protocol stack used by the IS220PGENH1A.

For facilities running a mixed fleet — some turbines on Mark VI and others already on Mark VIe — the IS220PPDAH1B power distribution module and associated IS200EPCTG1A I/O pack are frequently part of the same procurement order, as plant engineers standardize spare parts inventory across both platforms during the transition window. Similarly, the IS220PTCCH1A thermocouple I/O module is often replaced alongside the PGENH module when exhaust temperature monitoring loops are being re-commissioned as part of a broader Mark VIe upgrade.

For HMI integration, facilities upgrading to Mark VIe typically also evaluate their operator interface hardware. The GE WorkstationST HMI running ToolboxST software is the standard engineering and operator interface for Mark VIe, and ensuring the HMI software version is compatible with the IS220PGENH1A firmware revision is a pre-commissioning step that should not be overlooked.

Finally, for on-site programming and diagnostics during commissioning, a Mark VIe ToolboxST programming cable (typically a standard Ethernet patch cable to the IONet port) and a laptop with the appropriate ToolboxST license are required. TOPNLMS can advise on compatible programming interface options for your specific Mark VIe revision.

Retrofit Guidance FAQ

Q: Can the IS220PGENH1A be installed directly into an existing Mark VI rack?
A: No. The IS220PGENH1A is designed for the Mark VIe IS200-series backplane. A Mark VI VME-style rack is not electrically or mechanically compatible. A rack replacement is required as part of the migration.

Q: Will existing field wiring to the generator protection terminal board need to be replaced?
A: In most cases, existing field wiring can be retained. The key step is verifying that the terminal board (TPRO or TGBA series) is compatible with the IS220PGENH1A. If the terminal board is also being upgraded, field wiring terminations should be documented and re-landed on the new board using the same signal assignments.

Q: Is the IONet communication protocol on the IS220PGENH1A backward-compatible with Mark VI IONet?
A: The Mark VIe IONet implementation uses standard Ethernet physical layer (100BASE-TX), which is an evolution from the earlier Mark VI IONet. While the physical medium is compatible, the protocol stack and addressing scheme differ. A Mark VIe controller (UCVE or equivalent) is required to communicate with the IS220PGENH1A — a Mark VI controller cannot directly address this module.

Q: How much physical space does the IS220PGENH1A require in the control cabinet?
A: The IS220PGENH1A occupies a single slot in the IS200-series Mark VIe rack. The IS200 rack is typically mounted in a standard 19-inch control cabinet. Cabinet space planning should account for the rack, power supply module, and associated terminal boards.

Q: Can the IS220PGENH1A be configured using ToolboxST without a factory engineer on-site?
A: Yes, for experienced Mark VIe engineers. ToolboxST provides full configuration, calibration, and diagnostic capability for the IS220PGENH1A. TOPNLMS recommends having the original Mark VI application logic and I/O signal list available before beginning re-configuration to minimize commissioning time.

Q: What is the lead time for the IS220PGENH1A from TOPNLMS?
A: In-stock units ship within 1–3 business days from our Xiamen warehouse. Express international shipping options are available for emergency outage situations. Contact us at [email protected] for urgent requirements.

Warranty Assurance

Every IS220PGENH1A shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and firmware revision. Modules that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for power generation customers where generator protection system availability is critical to plant operations. Our after-sales response target is within 24 hours of a warranty claim submission.

Procurement teams can request a test report or inspection certificate for the IS220PGENH1A prior to shipment. We support standard industrial procurement documentation requirements including packing lists, commercial invoices, and certificates of origin for international customs clearance.

For volume orders or standing purchase agreements covering multiple IS220PGENH1A units or associated Mark VIe components, contact our sales team to discuss pricing, lead time commitments, and consignment stocking arrangements.
