GE IS220PDIAH1AD Replacement for Mark VIe Series: Smooth Transition & Legacy System Compatibility

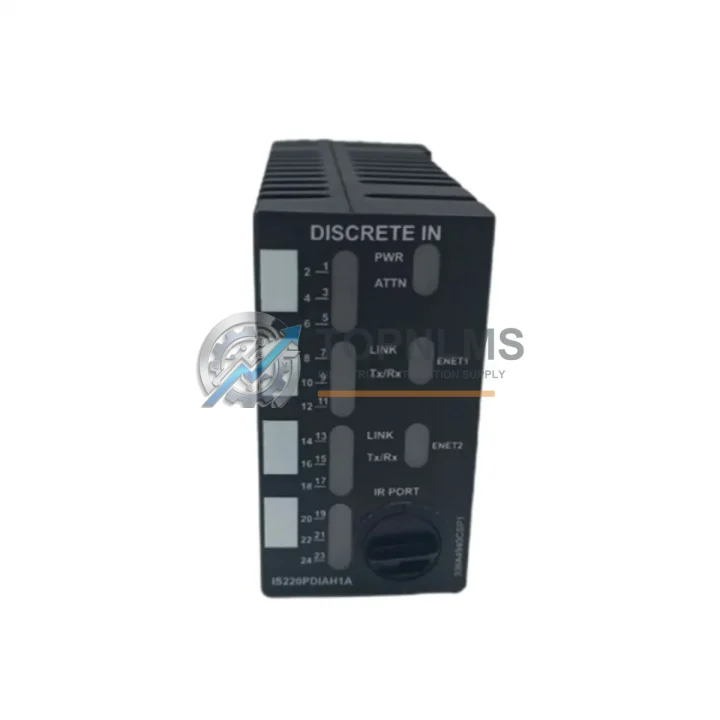

The GE IS220PDIAH1AD (also referenced as IS220PDIAH1A) is a 24-channel discrete input module engineered for the GE Mark VIe turbine control platform. As GE progressively phases out legacy Mark V and Mark VI hardware, plant engineers and procurement teams face increasing pressure to source reliable, drop-in replacements that preserve existing wiring infrastructure, I/O mapping, and control logic without triggering a full system overhaul. TOPNLMS stocks verified IS220PDIAH1AD units ready for immediate dispatch, backed by a 12-month warranty and pre-shipment functional testing.

Whether you are migrating from a Mark V PDIAH discrete input board, retiring a Mark VI IS200-series module, or simply replacing a failed unit in an active Mark VIe rack, the IS220PDIAH1AD integrates directly into the existing IS215 or IS220 series I/O rack without mechanical modification. The module accepts standard 24 VDC discrete signals and communicates over the IONet Ethernet backbone native to the Mark VIe architecture, eliminating the need for protocol converters or gateway devices.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark VIe migration rarely involves a single module swap. In practice, upgrading to the IS220PDIAH1AD is part of a broader I/O modernization effort that typically involves several companion components within the same control cabinet or rack assembly.

On the power distribution side, the IS220PPDAH1B power distribution module is commonly replaced in parallel, as aging power boards are a frequent root cause of intermittent discrete input faults. The IS215UCVEH2A Mark VIe controller serves as the central processing unit coordinating all I/O modules over IONet, and its firmware version must be confirmed compatible with the IS220PDIAH1AD before commissioning. For sites running redundant control architectures, the IS220PDOAH1B discrete output module is often upgraded alongside the input module to maintain symmetrical hardware generations across the I/O rack.

Communication integrity is equally critical during migration. The IS220PTURH1B turbine control I/O module and IS220PTCCH1B thermocouple input module share the same IONet segment in many turbine control configurations, and their firmware compatibility with the upgraded rack should be validated using GE ToolboxST prior to live commissioning. For legacy sites still running Mark V serial communication, a serial-to-Ethernet gateway or IS215ACLEH2A communication module may be required to bridge the protocol gap during a phased migration.

On the field wiring side, IS200TBCIH1C terminal board connections are typically preserved during an IS220PDIAH1AD swap, as the field-side terminal block layout remains compatible. However, sites with aging signal isolators or Zener barrier assemblies on the DI inputs should inspect and replace those components during the same maintenance window to avoid nuisance trips after the module upgrade. For cabinet-level integration, the IS215VCMIH2C VME communication module may also require a firmware update to recognize the new I/O module addresses assigned in ToolboxST.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing an IS200PDIAH with the IS220PDIAH1AD?
A: Yes. The IS220PDIAH1AD uses the same 24 VDC discrete input signal standard and compatible terminal block interface. Field wiring from the legacy IS200PDIAH or Mark V PDIAH board can be reconnected directly to the IS220 terminal board without re-termination in most installations. Always verify wire labeling against the as-built drawings before energizing.

Q: Do I need to modify my Mark VIe application program after the module swap?
A: In most cases, no. If the I/O address and module slot assignment remain unchanged in ToolboxST, the existing application logic will recognize the IS220PDIAH1AD automatically after a rack download. A full download (not an online change) is recommended after any hardware replacement to ensure configuration consistency.

Q: Is the IS220PDIAH1AD compatible with both simplex and TMR (Triple Modular Redundant) Mark VIe architectures?
A: Yes. The IS220PDIAH1AD supports both simplex and TMR configurations. In TMR systems, three modules are installed in parallel across the R, S, and T I/O racks. Ensure all three units are sourced from the same hardware revision to maintain voting logic integrity.

Q: What communication protocol does the IS220PDIAH1AD use, and is it compatible with my existing IONet switch?
A: The module communicates exclusively over IONet Ethernet (100 Mbps). It is compatible with standard Mark VIe IONet managed switches. No protocol conversion is required. Verify that your IONet switch firmware supports the module’s MAC address range if you are using an older switch revision.

Q: How much physical space does the IS220PDIAH1AD require in the control cabinet?
A: The IS220PDIAH1AD occupies a single slot in the IS215 or IS220 I/O rack. Its form factor is identical to other IS220-series modules, so no additional cabinet space or DIN rail modification is required. Confirm rack slot availability before ordering if your cabinet is fully populated.

Q: What is the lead time and shipping arrangement for urgent replacement orders?
A: TOPNLMS maintains ready stock of the IS220PDIAH1AD at our Xiamen warehouse. Standard orders ship within 1–3 business days via DHL, FedEx, or UPS Express. For emergency plant-down situations, same-day dispatch is available upon request. Contact us directly at [email protected] or +86 18359293191 to confirm availability and arrange priority shipping.

Warranty Assurance

Every IS220PDIAH1AD unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes:

• Visual inspection for physical damage, corrosion, and component integrity
• Power-on functional test verifying all 24 discrete input channels
• IONet communication handshake verification
• Firmware version confirmation against GE Mark VIe compatibility matrix
• ESD-safe packaging with anti-static bag, foam insert, and outer carton

If a unit fails within the warranty period due to a manufacturing defect or latent fault, TOPNLMS will provide a free replacement unit with priority shipping at no additional cost. Our after-sales response time is within 24 hours on business days. We issue a detailed test report and packing list with every shipment to support your incoming inspection and asset management records.
