GE IS215UCVEH2AF Replacement for Mark VI Speedtronic: Smooth Transition from Legacy VME Control Systems

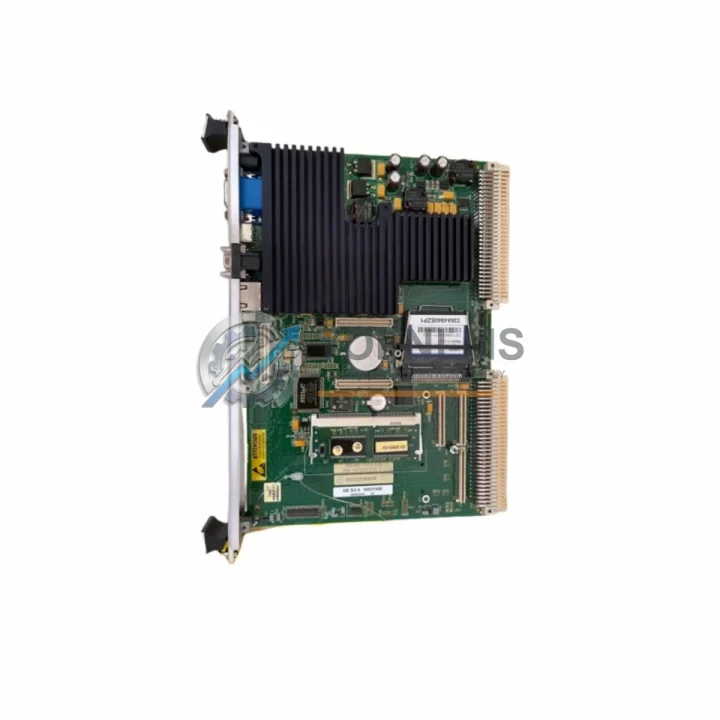

The GE IS215UCVEH2AF is a VME-bus Controller Board designed for the GE Mark VI Speedtronic turbine control platform — one of the most widely deployed gas turbine and steam turbine control systems in power generation, oil & gas, and industrial process facilities worldwide. As GE progressively phases out legacy Mark VI hardware, many plant operators face the critical challenge of sourcing verified replacement boards to maintain system uptime without committing to a full Mark VIe migration. TOPNLMS maintains ready stock of the IS215UCVEH2AF to support emergency replacement, planned maintenance, and phased upgrade programs.

This board serves as the primary VME controller in the Mark VI Speedtronic architecture, coordinating I/O communication, sequence logic execution, and turbine protection functions. When an IS215UCVEH2AF fails or reaches end-of-life, the entire turbine control loop is at risk. Our verified replacement units are sourced from decommissioned systems, tested against GE factory specifications, and shipped with full functional test documentation — enabling your maintenance team to restore control system integrity with minimal downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the IS215UCVEH2AF is rarely a standalone task. In most Mark VI Speedtronic retrofit and modernization projects, the controller board replacement is part of a broader system restoration or upgrade effort. During the migration process, engineers typically need to address the full control loop — from the VME rack and backplane through to field I/O, communications, and HMI.

In many installations, the IS215UCVEH2AF works in conjunction with the IS215ACLEH1A AC Line Exciter Board and the IS215VPROH1B Voltage Protection Board, both of which share the same VME rack and communicate over the IONet backbone. If the controller board has failed due to a power surge or environmental stress, it is prudent to inspect these companion boards simultaneously, as they share the same backplane power rails and are subject to the same fault conditions.

The IS200TBAIH1C Terminal Board Assembly is the primary field-wiring interface for analog and digital I/O signals in the Mark VI system. When performing a controller board swap, verifying the integrity of the terminal board connections and ribbon cable harnesses prevents secondary faults from masking a successful controller replacement. Similarly, the IS200TREGH1B Turbine Regulation Board handles speed and load control functions that interact directly with the UCVE controller — both boards must be confirmed operational before returning the turbine to service.

For sites upgrading from a single-controller Mark VI configuration to a TMR (Triple Modular Redundant) architecture, additional IS215UCVEH2AF units are required for the R, S, and T controller slots. The IS200VTURH1BEC Turbine Control I/O Board and the IS215VCMIH2C VME Communication Interface Board are also commonly required during TMR expansion projects, as the additional controller cards require corresponding I/O and communication resources.

Sites that are simultaneously upgrading their HMI infrastructure often pair the Mark VI controller replacement with a GE CIMPLICITY HMI workstation refresh or a migration to GE iFIX SCADA, both of which interface with the Mark VI system via the IONet Ethernet network. The IS215VCMIH2C communication module facilitates this network integration and should be verified for firmware compatibility with the replacement UCVE board revision.

For sites where the existing IS200EPSMG1A Power Supply Module shows signs of aging — evidenced by voltage ripple or intermittent board resets — replacing the power supply in the same maintenance window as the IS215UCVEH2AF controller board eliminates a common root cause of recurring VME controller faults and reduces the risk of repeat unplanned outages.

Retrofit Guidance FAQ

Q: Is the IS215UCVEH2AF a direct drop-in replacement for earlier UCVE revisions?
A: Yes. The IS215UCVEH2AF is backward-compatible with IS215UCVEH2A, IS215UCVEH2AB, and IS215UCVEH2AC at the hardware level. The VME backplane connectors, board dimensions, and power requirements are identical. However, firmware revision differences may require a ToolboxST configuration download after installation to align the board with the existing application software version.

Q: Can the IS215UCVEH2AF be used to replace a Mark V UCVB or UCVC board?
A: No. The Mark V and Mark VI platforms use fundamentally different rack architectures, backplane pinouts, and communication protocols. The IS215UCVEH2AF is exclusively compatible with Mark VI Speedtronic controller racks. A Mark V to Mark VI migration requires a full rack replacement, rewiring of field I/O terminal boards, and reprogramming of the control application in ToolboxST.

Q: What programming tools are required to commission the replacement board?
A: GE ToolboxST (Control System Toolbox) is required to download the application configuration to the IS215UCVEH2AF. The replacement board must be configured with the correct I/O assignments, protection setpoints, and communication parameters before the turbine is returned to service. TOPNLMS recommends having a licensed ToolboxST workstation and a backup of the existing application on-site before beginning the replacement procedure.

Q: Is the IONet communication protocol compatible with the existing network infrastructure?
A: IONet operates over standard 100BASE-TX Ethernet physical layer, using GE’s proprietary application-layer protocol. Standard managed Ethernet switches with QoS configuration are compatible. The IS215UCVEH2AF uses the same IONet implementation as all Mark VI UCVE revisions, so no network infrastructure changes are required for a like-for-like board replacement.

Q: What is the physical installation procedure for the IS215UCVEH2AF?
A: The board is installed in the VME rack with the turbine control system de-energized. The board slides into the designated controller slot on the VME backplane and is secured with the front-panel ejector levers. No field wiring connections are made directly to the board — all I/O signals are routed through the terminal board assemblies and the VME backplane. After installation, the system is powered up and the ToolboxST configuration is downloaded to complete commissioning.

Q: How does TOPNLMS verify the board before shipment?
A: Each IS215UCVEH2AF unit undergoes a multi-stage inspection process including visual inspection for physical damage, component-level testing of power supply rails and communication interfaces, and functional verification using GE-compatible test equipment. A test report is included with each shipment. Units that do not pass all test criteria are not offered for sale.

Warranty Assurance

TOPNLMS provides a 12-month warranty on all IS215UCVEH2AF units from the date of shipment. This warranty covers manufacturing defects, component failures, and functional non-conformance identified during installation and commissioning. It does not cover damage resulting from incorrect installation, electrical overstress, or environmental conditions outside the board’s rated operating range.

In the event of a warranty claim, TOPNLMS will provide a replacement unit or full refund within the warranty period. Our technical support team is available to assist with fault diagnosis and to determine whether an observed failure is covered under warranty. Warranty claims are processed within 5 business days of receipt of the returned unit.

All units are shipped with ESD-protective packaging, individual serial number tracking, and a functional test certificate. Express shipping options are available for emergency replacement requirements, with dispatch from our Xiamen warehouse typically within 24 hours of order confirmation for in-stock units.
