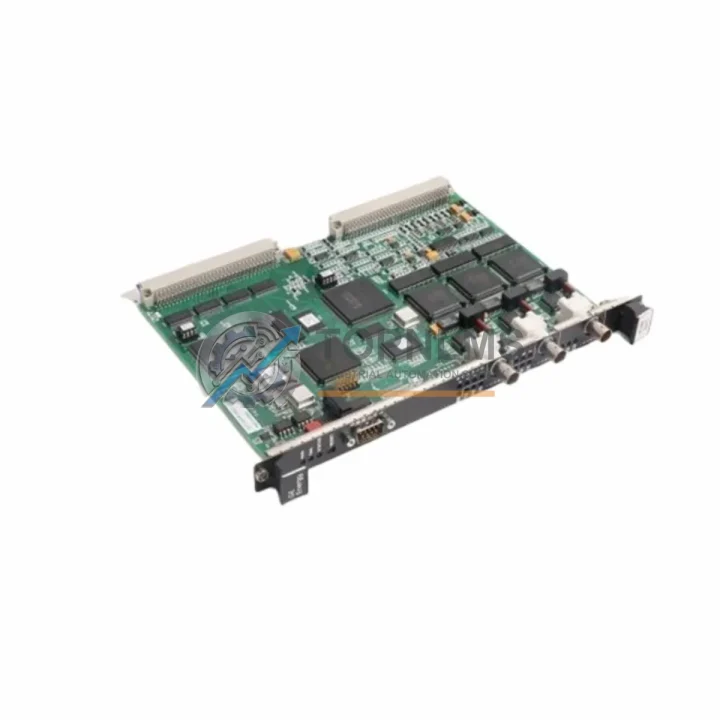

GE IS215UCUEH2AB Replacement for Mark VIe UCU

Product Overview

GE IS215UCUEH2AB Replacement for Mark VIe UCU: Seamless Migration & Legacy System Upgrade

The GE IS215UCUEH2AB is the Unit Control Unit (UCU) controller board at the heart of GE’s Mark VIe Distributed Control System (DCS). As aging Mark V, Mark VI, and early Mark VIe installations approach end-of-life, plant engineers and procurement teams face increasing pressure to source verified replacement boards that maintain system continuity without requiring full platform re-engineering. TOPNLMS supplies the IS215UCUEH2AB from tested, traceable stock — enabling a direct board-swap upgrade path that preserves existing wiring, I/O mapping, and communication architecture while eliminating the risk of unplanned downtime caused by obsolete or counterfeit components.

Whether you are executing a scheduled outage replacement, responding to a board failure, or building a critical-spare inventory strategy for a gas turbine, steam turbine, or combined-cycle power plant, the IS215UCUEH2AB is a proven, field-compatible solution. Our pre-shipment functional verification process and 12-month warranty provide the procurement assurance required for mission-critical industrial environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IS215UCUEH2AB migration rarely involves a single board in isolation. In practice, plant engineers replacing or upgrading the UCU controller board must also account for the broader Mark VIe system architecture. The IS200EPCTG1A or IS200EPCTG1B power supply modules must be verified to deliver stable voltage rails to the replacement board — any degradation in the power supply will manifest as intermittent UCU faults even after a successful board swap. Similarly, the IS200TBCIH2B terminal board, which interfaces field wiring to the controller rack, should be inspected for contact oxidation or terminal fatigue if the system has been in service for more than a decade.

On the communication side, the IS215UCUEH2AB relies on IONet for high-speed controller-to-I/O communication. If your installation includes IS200IOCIH2A or IS200IOCIH2B I/O controller interface boards, these should be confirmed as firmware-compatible with the replacement UCU revision. Plants migrating from Mark VI architectures may also need to evaluate the IS200VCMIH2B VME communication module to bridge legacy ARCNET segments during a phased migration, avoiding a full cutover that would require extended downtime.

For turbine control applications, the IS200TBAIH2B analog input terminal board and IS200TBCIH2B contact input terminal board are the most common field-wiring interfaces that remain in place during a UCU board replacement. Confirming that these terminal boards are in serviceable condition before the outage window reduces the risk of discovering secondary faults during commissioning. If the plant operates a redundant Mark VIe configuration (TMR — Triple Modular Redundancy), all three UCU slots should be sourced from the same firmware revision to ensure voting logic integrity; TOPNLMS can supply matched sets of IS215UCUEH2AB boards for TMR installations.

HMI connectivity is another consideration: plants running GE CIMPLICITY SCADA or iFIX connected to the Mark VIe controller via OPC-DA or OPC-UA should verify that the ToolboxST application re-download does not alter tag addresses that the HMI relies on. In installations where the IS215UCUEH2AB interfaces with a GE EX2100e excitation controller or a GE Speedtronic turbine control panel, the inter-system communication parameters should be documented before the board is removed and restored after the replacement is commissioned.

Retrofit Guidance FAQ

Q: Can I replace the IS215UCUEH2AB without re-downloading the ToolboxST application?
A: No. The UCU controller board does not retain application code independently of the ToolboxST project file. After physical installation, the application must be downloaded from the engineering workstation running ToolboxST. Ensure you have the correct project revision (.tci file) and that the workstation is connected to the IONet segment before beginning the download procedure.

Q: Is the IS215UCUEH2AB backward-compatible with Mark VI racks?
A: The board shares the VME 6U physical form factor with Mark VI modules, but the backplane connector pinout and IONet communication protocol are not compatible with Mark VI VME backplanes. Direct installation into a Mark VI rack is not supported. A full rack migration to Mark VIe is required for cross-generation upgrades.

Q: What wiring changes are required when replacing a failed IS215UCUEH2AB within the same Mark VIe rack?
A: None. Field wiring terminates at the terminal boards (e.g., IS200TBCIH2B, IS200TBAIH2B), which remain in place. The UCU board connects to the backplane only — no field wiring is attached directly to the board. The replacement procedure is limited to: power down the rack, extract the failed board, insert the replacement, restore power, and download the ToolboxST application.

Q: How do I verify the firmware revision of the replacement board?
A: The firmware revision is displayed in ToolboxST during the hardware discovery phase after the board is powered. TOPNLMS provides the board revision and firmware version in the pre-shipment test report included with each unit. If a specific firmware revision is required for your installation, please specify this at the time of order.

Q: Can TOPNLMS supply matched IS215UCUEH2AB boards for a TMR (Triple Modular Redundancy) system?
A: Yes. For TMR installations, we recommend ordering all three UCU boards simultaneously to ensure revision matching. Contact us with your current board revision and we will confirm stock availability for matched sets.

Q: What communication protocols does the IS215UCUEH2AB support?
A: The IS215UCUEH2AB supports IONet (GE’s proprietary Ethernet-based controller network, 100 Mbps) as the primary communication protocol. Some variants also support ARCNET for legacy I/O compatibility. Modbus TCP and OPC-UA connectivity is handled at the HMI/SCADA layer, not at the UCU board level.

Warranty Assurance

Every IS215UCUEH2AB supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our warranty program is designed to meet the procurement standards of industrial plant operators and EPC contractors who require documented quality assurance as part of their spare-parts management process.

Pre-Shipment Testing: Each board undergoes functional verification prior to dispatch. A test report confirming power-on status, communication interface integrity, and visual inspection results is included with every shipment. Boards that do not pass functional verification are not shipped.

Packaging & Shipping: Units are shipped in anti-static packaging with foam cushioning to prevent transit damage. Export cartons are labeled with part number, revision, and serial number for traceability. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units. Express international shipping (DHL, FedEx) is available to minimize total delivery time.

Warranty Claims: In the event of a warranty claim, TOPNLMS will arrange collection of the defective unit and dispatch a replacement within 5 business days of claim confirmation. Warranty claims require the original order number and a brief description of the failure mode. No-fault returns are accepted within 30 days of shipment for unused, unopened units.

After-Sales Support: Our technical team is available to assist with installation questions, firmware revision queries, and compatibility verification. We maintain documentation for the IS215UCUEH2AB and related Mark VIe components to support your engineering team during the replacement process.
