GE IS210MACCH1A Replacement/Upgrade Solution for Mark VI: Seamless Transition from Legacy Turbine Control Systems

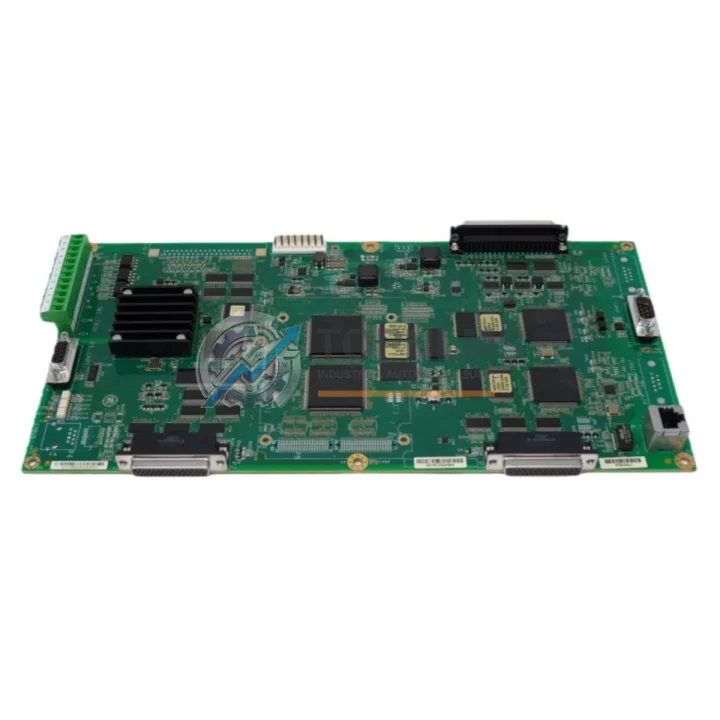

The GE IS210MACCH1A is a critical Input Terminal Board designed for the GE Mark VI Turbine Control System — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. As aging Mark VI installations approach end-of-life and OEM support windows close, plant engineers and procurement teams face mounting pressure to source verified replacement boards that maintain full backward compatibility with existing wiring harnesses, I/O signal conditioning circuits, and control logic without requiring costly re-engineering of the turbine control cabinet.

At TOPNLMS, we stock the IS210MACCH1A as a direct drop-in replacement for failed or degraded units within the GE Mark VI and Mark VIe control platforms. Every board undergoes incoming inspection and functional verification before dispatch, ensuring that the unit you receive is ready for installation and commissioning on the first attempt — minimizing unplanned downtime in critical rotating equipment applications.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IS210MACCH1A replacement rarely happens in isolation. In practice, turbine control modernization projects involve a coordinated set of components across the Mark VI I/O rack, communication backbone, and cabinet power distribution. When replacing the IS210MACCH1A, field engineers commonly address adjacent components in the same service window to avoid repeat outages.

The IS200IOCIG2B I/O Controller Interface Board is frequently replaced alongside the IS210MACCH1A, as both boards share the same IONet communication segment and a fault in one often stresses the other. Similarly, the IS200EPCTG1A Power Distribution Board should be inspected — degraded capacitors on aging power boards can cause intermittent faults that mimic I/O terminal board failures, leading to misdiagnosis and repeat downtime events.

For sites migrating from Mark V to Mark VI architecture, the IS200DSPXH1D Digital Signal Processor Board and the IS200TREGH1B Turbine Regulation Board are typical co-replacement candidates. These boards govern speed, load, and protective relay logic, and their firmware must be aligned with the I/O terminal board revision to ensure consistent scan-cycle timing across the control loop.

Communication integrity is equally important. The IS200ECTBG1A Ethernet Communication Terminal Board provides the HMI and historian interface for the Mark VI platform. When upgrading I/O boards, verifying that the ECTBG1A firmware is compatible with the new board revision prevents communication dropouts between the turbine controller and the plant DCS or SCADA layer. In facilities running a dual-redundant control architecture, the IS200TRLYH1C Triple Redundancy Relay Board must also be confirmed as compatible before the replacement board is placed into service.

On the field wiring side, aging IS200TBCIH1C Terminal Board Cable Interface assemblies and associated shielded signal cables should be inspected during the same outage. Corroded or loose terminations at the I/O terminal board connector are a leading cause of nuisance trips after board replacement. Replacing the cable interface assembly at the same time as the IS210MACCH1A eliminates this risk and restores full signal integrity across all analog input channels.

For sites that have already upgraded to the Mark VIe platform, the IS200VTURH1BBA Turbine Control I/O Pack represents the next-generation equivalent of the IS210MACCH1A function, and TOPNLMS can advise on migration paths between the two architectures based on your specific turbine OEM configuration and control logic version.

Retrofit Guidance FAQ

Q: Can I install the IS210MACCH1A without modifying existing field wiring?
A: In the majority of Mark VI installations, the IS210MACCH1A is a direct terminal-compatible replacement. The field wiring harness connects to the same terminal strip layout, so no re-termination is required. However, we recommend verifying the wiring diagram against your specific turbine OEM documentation before installation, particularly for customized I/O configurations.

Q: Do I need to update the Mark VI application software after replacing this board?
A: A like-for-like board swap at the same hardware revision typically does not require a software download. The Mark VI controller will recognize the replacement board on the next power cycle. If the replacement board carries a different hardware revision suffix, a configuration file update via the GE Toolbox software may be required — TOPNLMS can advise on revision compatibility before shipment.

Q: Is the IS210MACCH1A compatible with both simplex and TMR (Triple Modular Redundant) Mark VI configurations?
A: Yes. The IS210MACCH1A is used in both simplex and TMR Mark VI architectures. In TMR systems, all three I/O racks must carry matching board revisions to maintain voting logic integrity. TOPNLMS can supply matched sets of three units for TMR replacement projects.

Q: What communication protocols does this board support?
A: The IS210MACCH1A interfaces with the GE IONet proprietary communication bus on the Mark VI backplane. It does not directly support Modbus, PROFIBUS, or Ethernet — those functions are handled by dedicated communication boards within the same rack. The I/O terminal board’s role is signal conditioning and analog/digital conversion for field instruments.

Q: How do I verify the board is functioning correctly after installation?
A: After installation, use the GE Mark VI Toolbox diagnostic software to perform an I/O channel scan. All input channels should report within expected engineering unit ranges. TOPNLMS provides a pre-shipment test report for each IS210MACCH1A unit, which can be used as a baseline reference during commissioning.

Warranty Assurance

Every IS210MACCH1A supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Our pre-shipment inspection process includes visual examination for physical damage, board-level power-on testing, and I/O channel verification where test fixtures are available. Units that do not pass inspection are quarantined and never dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical team is available to assist with installation questions, revision compatibility checks, and commissioning support via email and phone. We understand that turbine control downtime carries significant financial consequences, and our logistics team prioritizes expedited dispatch for critical replacement orders.

We ship globally from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited available for time-critical orders. Export documentation, including commercial invoices, packing lists, and certificates of origin, is prepared for all international shipments to facilitate smooth customs clearance.

For bulk procurement, spare parts program agreements, or consignment stock arrangements, please contact our industrial automation team directly. We maintain standing inventory of the IS210MACCH1A and related Mark VI components to support planned maintenance outages and emergency breakdown requirements.
