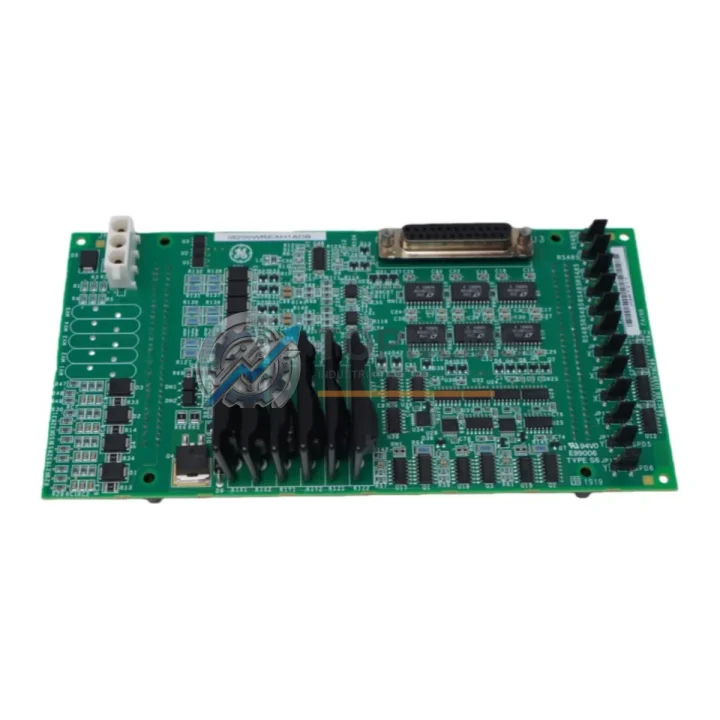

GE IS200WREAH1ABB Ruggedized Trip Terminal Board for Harsh Environments

Product Overview

GE IS200WREAH1ABB Ruggedized Trip Terminal Board: Industrial Resilience for Harsh Environments

The GE IS200WREAH1ABB is a high-integrity Trip Terminal Board engineered for the GE Mark VI Turbine Control System — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. Designed to operate continuously in environments characterized by extreme temperature swings, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the IS200WREAH1ABB delivers the fault-tolerant signal conditioning and trip relay interfacing that mission-critical turbine protection systems demand.

In continuous production environments — from combined-cycle power plants and offshore gas platforms to petrochemical refineries and steel mills — unplanned turbine trips caused by unreliable terminal boards can result in catastrophic production losses, safety incidents, and costly emergency maintenance windows. The IS200WREAH1ABB eliminates this risk by providing robust, low-impedance signal paths between the Mark VI controller’s I/O modules and the field-mounted trip solenoids, emergency shutdown valves, and protective relay circuits that safeguard rotating equipment.

As a direct-fit replacement board within the Mark VI TTUR (Trip Terminal Unit Rack), the IS200WREAH1ABB interfaces seamlessly with companion boards including the IS200TRLYH1B relay output board, the IS200VTURH1B turbine control board, and the IS200TREGH1B trip relay expansion board. Together, these modules form a redundant, triple-modular-redundant (TMR) protection architecture that continuously cross-checks voting logic across three independent control paths — ensuring that no single-point hardware failure can cause either a spurious trip or a failure to trip when genuinely required.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200WREAH1ABB does not operate in isolation — it is a critical node within a broader Mark VI protection ecosystem. In a typical turbine control cabinet, the trip terminal board works in concert with the IS200TRLYH1B trip relay output board, which drives the final trip solenoids based on voted logic from the three Mark VI controllers. Upstream, the IS200VTURH1B turbine control board processes speed, temperature, and vibration signals from field sensors, feeding conditioned data into the TMR voting network.

For facilities managing multiple turbine strings, the IS200TREGH1B trip relay expansion board extends the trip circuit capacity without requiring additional controller hardware. Power integrity across the Mark VI rack is maintained by the IS200EPSMH1A power supply module, which provides regulated, filtered DC power to all I/O and terminal boards — a function that becomes especially critical in facilities where utility power quality is poor or subject to frequent transients.

Communication between the Mark VI system and plant-level DCS or SCADA platforms is handled by the IS200EDIOH1A Ethernet data I/O board, enabling real-time alarm, event, and diagnostic data to flow to historian servers and operator workstations. In facilities running GE’s ToolboxST configuration environment, the IS200WREAH1ABB’s trip circuit parameters — including trip setpoints, relay assignments, and bypass logic — can be verified and updated without removing the board from service, minimizing maintenance downtime.

For plants that have migrated or are migrating from the earlier GE Mark V platform, the IS200WREAH1ABB represents a direct upgrade path, offering improved diagnostic transparency and tighter integration with modern safety instrumented system (SIS) architectures. When paired with a GE IS200DSPXH1D digital signal processor board, the overall Mark VI system achieves the response times and voting accuracy required for SIL 2 turbine protection applications.

Application in Critical Infrastructure

The IS200WREAH1ABB has established a proven service record across the most demanding sectors of global critical infrastructure. In combined-cycle and gas turbine power plants, the board’s trip relay interface is the last line of electronic defense before a turbine overspeed, high exhaust temperature, or lube oil low-pressure event triggers a mechanical shutdown — making its reliability non-negotiable for grid stability and personnel safety.

In offshore oil and gas platforms and onshore LNG terminals, the IS200WREAH1ABB operates within pressurized, climate-controlled control rooms that nonetheless experience constant vibration from compressor trains, salt-laden humid air infiltration, and the electromagnetic noise generated by large variable-frequency drives controlling seawater lift pumps and gas compression equipment. The board’s conformal-coated PCB and robust backplane connector design ensure signal integrity is maintained even under these conditions.

Metallurgical and steel production facilities present a particularly harsh operating environment: radiant heat from furnaces, heavy particulate contamination from raw material handling, and the intense electromagnetic fields generated by arc furnaces and large DC drive systems all challenge conventional control hardware. The Mark VI system — with the IS200WREAH1ABB at its trip interface — is specifically engineered to maintain deterministic control response in these environments, protecting rolling mill drives, reheat furnace combustion systems, and continuous casting lines from uncontrolled shutdowns.

In municipal and industrial water treatment plants, the board supports the protection of large centrifugal pump drivers and blower turbines, where a missed trip on a bearing failure or seal leak can result in catastrophic equipment damage and extended service outages affecting public water supply. Similarly, in mining operations — from open-pit copper mines to underground coal extraction — the IS200WREAH1ABB protects the large gas turbine generator sets that provide primary power to remote sites where grid connection is unavailable or unreliable.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all functional defects attributable to manufacturing or component failure under normal operating conditions consistent with GE Mark VI system specifications. If a board fails within the warranty period, TOPNLMS will arrange return shipping, perform root-cause diagnostics, and provide a replacement unit or full refund. Warranty claims are initiated by contacting [email protected] with the order number and a description of the observed fault.

Q2: How is each IS200WREAH1ABB tested before shipment?
Every unit undergoes a multi-stage inspection and functional test protocol prior to dispatch. This includes visual inspection for physical damage, PCB contamination, and connector integrity; powered functional verification of relay coil resistance and contact continuity; and where test fixtures are available, signal-path verification under simulated Mark VI backplane conditions. Units that do not pass all test stages are quarantined and not offered for sale.

Q3: Is the IS200WREAH1ABB compatible with all Mark VI hardware revisions and ToolboxST versions?
The IS200WREAH1ABB is designed for use within the GE Mark VI TTUR rack and is compatible with the standard Mark VI hardware family. Compatibility with specific firmware revisions or ToolboxST configuration versions should be verified against your site’s Mark VI system documentation. TOPNLMS technical staff can assist with compatibility verification — contact us with your Mark VI system serial number or configuration baseline for guidance.

Q4: Can TOPNLMS support long-term or repeat supply of IS200WREAH1ABB for planned maintenance programs?
Yes. TOPNLMS maintains ongoing inventory of IS200WREAH1ABB and other Mark VI series boards to support planned maintenance, capital spares programs, and emergency breakdown requirements. For facilities managing multiple turbine units or operating under long-term service agreements, we can discuss framework supply arrangements, reserved stock allocation, and priority dispatch commitments. Contact our team to discuss your site’s specific spare parts strategy.
