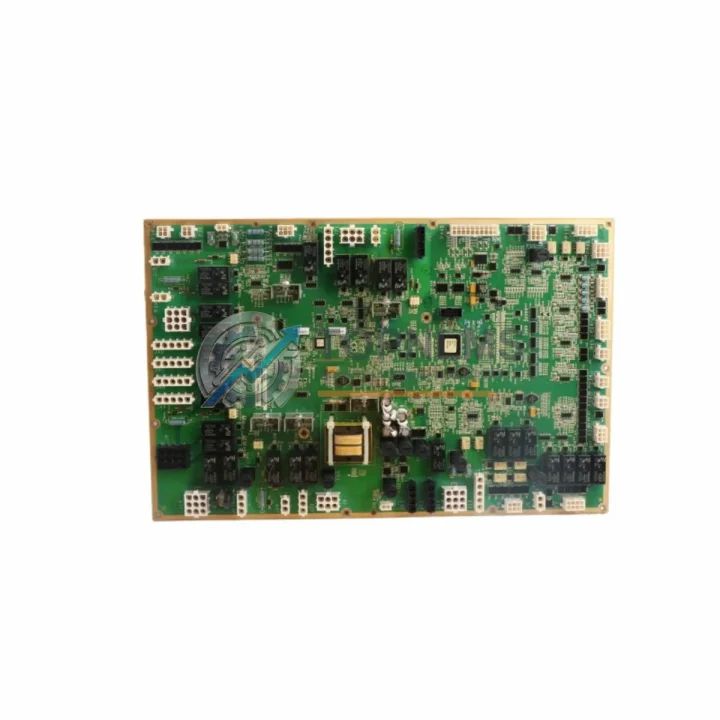

GE IS200WETBH1ABA Replacement for Mark VIe Series

Product Overview

GE IS200WETBH1ABA Replacement for Mark VIe Series: Smooth Transition from Legacy Analog Output Systems

The GE IS200WETBH1ABA is an analog output terminal board engineered for the GE Mark VIe turbine control system — one of the most widely deployed distributed control platforms in power generation, oil and gas, and heavy industrial facilities worldwide. As aging Mark VI and early Mark VIe installations reach end-of-life or encounter discontinued component availability, the IS200WETBH1ABA has become a critical upgrade and replacement target for control system engineers managing fleet-wide modernization programs.

This unit ships fully tested, inspected, and ready for immediate installation, backed by a 12-month warranty. Whether you are executing a planned outage replacement, responding to an unplanned board failure, or building out a strategic spare parts inventory for a multi-unit power plant, the IS200WETBH1ABA provides a verified, drop-in compatible solution that preserves your existing Mark VIe architecture without requiring system-wide reconfiguration.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the IS200WETBH1ABA within a Mark VIe control cabinet is rarely an isolated action. In practice, analog output terminal board failures or planned replacements occur within a broader context of I/O system aging, and experienced control system engineers use the replacement event as a structured opportunity to audit and refresh adjacent components that share the same cabinet, backplane, or signal loop.

The IS200WETBH1ABA interfaces directly with the IS200WETBH I/O pack — the intelligent module that processes analog output commands from the Mark VIe controller and drives the terminal board’s field wiring connections. If the terminal board has experienced repeated failures or shows signs of connector wear, the mating I/O pack should be inspected simultaneously, as degraded backplane connectors on the I/O pack side can cause intermittent signal faults that are incorrectly attributed to the terminal board alone.

Within the same Mark VIe I/O cabinet, the IS200PPDAG1A or IS200PPDBG1A power distribution boards supply regulated DC power to the I/O pack and terminal board assembly. A failing power distribution board can produce voltage ripple or dropout events that manifest as analog output drift or calibration instability — symptoms that closely mimic a faulty terminal board. Verifying power distribution board health during the replacement window eliminates this diagnostic ambiguity.

For facilities upgrading from Mark VI to Mark VIe, the migration typically involves replacing the older IS200 series terminal boards with their Mark VIe equivalents while retaining existing field wiring where possible. The IS200WETBH1ABA’s terminal block layout is designed to minimize field rewiring in these migration scenarios, but engineers should cross-reference the Mark VIe hardware manual against the existing Mark VI wiring schedule to confirm terminal-for-terminal compatibility before committing to a live cutover.

Communication architecture is another migration consideration. Mark VIe systems use IONet Ethernet for I/O pack communication, replacing the older Mark VI serial I/O bus. If the upgrade path involves introducing new IS200IOCSG1A or IS200IOCAG1A IONet communication boards alongside the terminal board replacement, network switch configuration and IONet segment planning should be completed and tested in simulation before the outage window opens.

Field device compatibility is equally important. The IS200WETBH1ABA’s 4–20 mA analog outputs connect to actuators, valve positioners, variable frequency drives, and other field devices. During the replacement, engineers should verify that HART-capable field devices on the loop are configured to accept commands from the new terminal board revision, and that any signal isolators or loop-powered barriers in the circuit are rated for the output impedance of the IS200WETBH1ABA.

For facilities building a comprehensive Mark VIe spare parts inventory, the IS200WETBH1ABA should be stocked alongside the IS200TTURH1CBB turbine trip terminal board, IS200TRLYH1B relay output terminal board, and IS200TBCIH1B contact input terminal board — the four terminal board types that cover the majority of Mark VIe I/O functions in a typical turbine control cabinet. This four-board inventory posture covers analog output, digital output, relay output, and contact input failure scenarios, providing comprehensive protection against extended outage duration caused by terminal board unavailability.

Retrofit Guidance FAQ

Q1: Can the IS200WETBH1ABA directly replace earlier revisions (AAA, ACA) without wiring changes?
In the majority of installations, yes. The ABA revision maintains the same terminal block layout and backplane connector as the AAA and ACA revisions, allowing direct physical substitution without field wiring modifications. However, GE has issued revision-specific compatibility notes in the Mark VIe hardware manual (GEH-6721). Engineers should verify that the installed I/O pack firmware version is compatible with the ABA revision terminal board before installation. Contact us with your I/O pack part number and firmware version for a pre-installation compatibility check.

Q2: Does the IS200WETBH1ABA support HART communication for field device diagnostics?
The IS200WETBH1ABA terminal board itself is a passive wiring interface — HART communication capability is determined by the mating I/O pack (IS200WETBH series) and the Mark VIe controller configuration. If your existing I/O pack and controller configuration support HART pass-through, the ABA revision terminal board is compatible with this function. Confirm your I/O pack model and Mark VIe Toolbox configuration to verify HART enablement.

Q3: What is the recommended procedure for replacing the IS200WETBH1ABA during a live outage?
The standard replacement procedure involves: (1) placing the affected analog output loop in manual control at the DCS level, (2) de-energizing the I/O pack and terminal board assembly at the local cabinet disconnect, (3) photographing and labeling all field wiring before removal, (4) installing the replacement terminal board and verifying backplane connector seating, (5) re-energizing and performing a loop calibration check against the field device, and (6) returning the loop to automatic control after confirming output signal accuracy. Total replacement time for a prepared crew is typically 30–60 minutes per terminal board.

Q4: Can this unit be used in a Mark VI system, or is it Mark VIe exclusive?
The IS200WETBH1ABA is designed for the Mark VIe platform and is not directly interchangeable with Mark VI terminal boards, which use a different backplane connector and I/O pack interface. If you are migrating from Mark VI to Mark VIe, the IS200WETBH1ABA is the correct destination component — but the Mark VI terminal boards it replaces are a different part number family. Contact us to confirm the correct terminal board for your specific system generation.

Warranty Assurance

Every IS200WETBH1ABA unit supplied by TOPNLMS is covered by a 12-month warranty from the date of installation into service. Pre-shipment testing includes functional verification of all analog output channels, backplane connector integrity inspection, and visual examination for component damage, corrosion, or mechanical defects. Units that do not pass acceptance testing are not dispatched.

For units held as shelf stock in a spare parts program, the warranty period begins at the date of commissioning into service, provided the unit is stored in a controlled environment (clean, dry, within the specified temperature range) and installed within 24 months of purchase. This policy supports long-lead inventory programs where spare boards are purchased in advance of anticipated need.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch as the primary remedy, with a target response time of 1–3 business days for standard claims. For critical outage situations, contact us directly to arrange priority handling. Warranty claims require a description of the failure mode and, where possible, the pre-failure operating conditions. Damage resulting from incorrect installation, overvoltage events, or environmental exposure outside the specified operating range is not covered under the standard warranty.

For procurement teams requiring formal warranty documentation for asset management or regulatory compliance purposes, warranty certificates are available on request at the time of order.
