GE IS200VTURH1BAC Replacement for Mark VI Turbine

Product Overview

GE IS200VTURH1BAC Replacement for Mark VI Turbine: Seamless Transition from Legacy Speed Measurement Systems

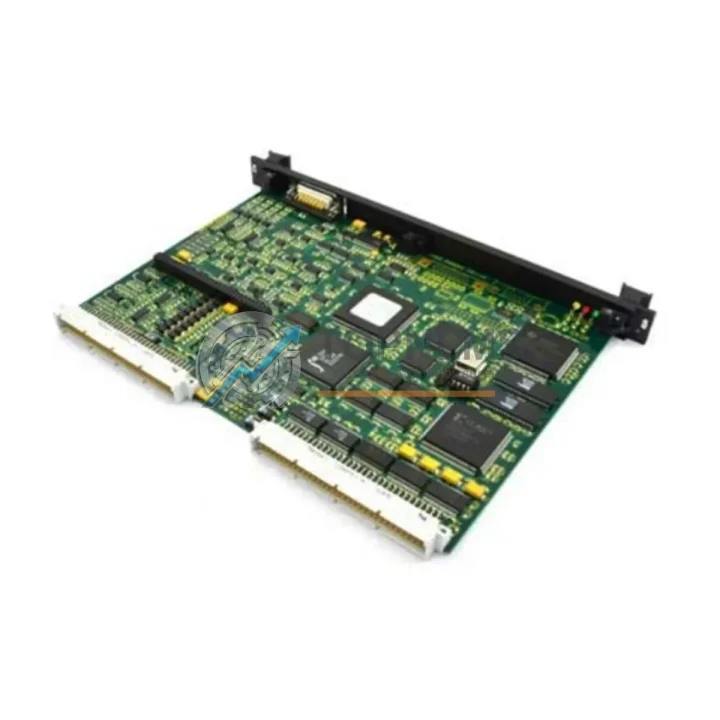

The GE IS200VTURH1BAC is a Speed Measurement Board designed for the GE Mark VI Turbine Control System — one of the most widely deployed distributed control platforms in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. As aging Mark V and early Mark VI installations approach end-of-life, plant engineers and procurement teams are actively sourcing verified replacement modules to maintain system integrity without committing to a full DCS overhaul. The IS200VTURH1BAC addresses this need directly: it is a form-fit-function compatible replacement that preserves existing wiring harnesses, terminal block assignments, and rack slot configurations, dramatically reducing retrofit labor and unplanned downtime.

This board interfaces with the Mark VI VCMI (VME Communication Module Interface) backplane and operates within the standard Mark VI I/O rack alongside companion boards such as the IS200VSVOH1B servo output board, the IS200VTCCH1B thermocouple input board, and the IS200VPWRH1B power supply module. In multi-controller redundant architectures — where the UCVEH or UCVGH controller cards manage triple-redundant voting logic — the IS200VTURH1BAC provides the speed pulse inputs required for turbine speed governing, overspeed protection, and zero-speed detection. Replacing this board does not require reprogramming the Mark VI application software, provided the replacement unit carries the same firmware revision and hardware suffix.

For sites migrating from the older GE Mark V LCC (Local Control Cabinet) platform, the IS200VTURH1BAC is a key component in the Mark V-to-Mark VI migration path. The Mark V TTUR speed measurement card used passive magnetic pickup (MPU) signal conditioning, while the Mark VI IS200VTURH1BAC supports both passive MPU and active proximity probe inputs, giving retrofit engineers greater flexibility when reusing existing field sensors. This eliminates the need to replace turbine-mounted speed sensors during the migration, preserving installation costs and reducing outage duration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark VI speed measurement retrofit rarely involves a single board in isolation. In practice, the IS200VTURH1BAC is installed as part of a coordinated upgrade that may also involve the IS200VCMIH1B VME Communication Module Interface card, which manages IONet Ethernet communication between the I/O rack and the Mark VI controller. Sites running legacy Modbus RTU or PROFIBUS DP field devices will often add the IS200VPROH1B PROFIBUS interface module to bridge legacy field instrumentation into the Mark VI IONet architecture without replacing field wiring.

Power integrity is critical during any turbine control migration. The IS200VPWRH1B power supply board should be inspected and replaced if it shows signs of capacitor aging or voltage ripple, as an unstable rack power supply can cause false speed measurement faults on the IS200VTURH1BAC. Similarly, the IS200VSVOH1B servo output board — which drives the fuel control valve actuators — must be verified for compatibility with the updated speed governing logic that the IS200VTURH1BAC feeds into the UCVEH controller.

For sites that also need to upgrade thermocouple exhaust temperature monitoring in the same outage window, the IS200VTCCH1B thermocouple input board is a natural companion replacement. Upgrading both the speed measurement and temperature measurement boards in a single planned outage minimizes total downtime and allows a single ToolboxST configuration session to validate all I/O assignments simultaneously. Where analog 4–20 mA process signals from legacy transmitters need to be integrated, the IS200VANALH1B analog input board provides the necessary signal conditioning within the same Mark VI rack.

Field wiring continuity is often the most time-sensitive concern during a turbine control retrofit. The IS200VTURH1BAC uses JR1 and JR2 D-sub connectors on the board faceplate. For sites where existing field cables terminate in Mark V-style terminal blocks, a JR-to-TB wiring adapter harness eliminates the need to re-terminate individual conductors at the junction box, preserving the original cable routing and shield grounding scheme. This approach is consistent with GE’s recommended migration methodology and has been validated in combined-cycle plant retrofits across multiple geographic regions.

Retrofit Guidance FAQ

Q: Can I reuse existing MPU speed sensor wiring when replacing the Mark V TTUR with the IS200VTURH1BAC?
A: Yes. The IS200VTURH1BAC accepts passive magnetic pickup (MPU) signals on its JR1 connector. Existing shielded twisted-pair cables from turbine-mounted speed sensors can be re-terminated to the JR1 pinout using the appropriate wiring adapter. No sensor replacement is required for standard MPU installations.

Q: Does replacing the IS200VTURH1BAC require changes to the Mark VI application program?
A: Not if the replacement board carries the same hardware revision suffix (H1BAC) and compatible firmware. The ToolboxST configuration database references the board by slot assignment and I/O type, not by serial number. A board swap followed by a ToolboxST download verification and I/O force test is the standard commissioning procedure.

Q: What communication protocol does the IS200VTURH1BAC use to report speed data to the Mark VI controller?
A: The board communicates over the Mark VI VME backplane to the VCMI module, which in turn transmits data over IONet Ethernet (100 Mbps) to the UCVEH or UCVGH controller. No separate serial communication configuration is required for the speed board itself.

Q: How much physical space does the IS200VTURH1BAC require in the Mark VI rack?
A: The IS200VTURH1BAC occupies a single 6U VME slot in the standard Mark VI I/O rack. It is compatible with both the R-type (redundant) and S-type (simplex) rack configurations. No additional mounting hardware or bracket modification is required.

Q: Can the IS200VTURH1BAC support overspeed trip functions in a TMR (Triple Modular Redundant) architecture?
A: Yes. In a TMR Mark VI system, three IS200VTURH1BAC boards (one per R, S, T controller) each independently measure turbine speed. The UCVEH controllers perform 2-out-of-3 voting logic for overspeed trip decisions, providing the highest level of protection integrity consistent with SIL 2 / SIL 3 safety requirements.

Q: What is the lead time and shipping arrangement for the IS200VTURH1BAC from TOPNLMS?
A: In-stock units ship from our Xiamen warehouse within 1–3 business days of order confirmation. International shipments are dispatched via DHL Express or FedEx International Priority with full tracking. Emergency same-day dispatch is available for critical outage situations — contact [email protected] or +86 18359293191 to confirm stock and arrange priority shipping.

Warranty Assurance

Every GE IS200VTURH1BAC supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination for physical damage, connector pin integrity check, board-level power-on verification where test fixtures are available, and documentation of hardware revision and firmware label. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund at the buyer’s election. Return shipping for confirmed defective units is covered by TOPNLMS for the first 90 days from shipment. After-sales technical support — including ToolboxST configuration guidance, wiring diagram review, and commissioning troubleshooting — is available via email and phone throughout the warranty period at no additional charge.

For procurement teams requiring documentation, TOPNLMS can provide a Certificate of Conformance, packing list, and commercial invoice with HS code declaration for customs clearance. Long-term supply agreements and blanket purchase orders for Mark VI spare parts programs are welcomed — contact our sales team to discuss volume pricing and reserved inventory arrangements.
