GE IS200VTCCH1CBD Ruggedized Thermocouple Processor Module: Industrial Resilience for Harsh Environments

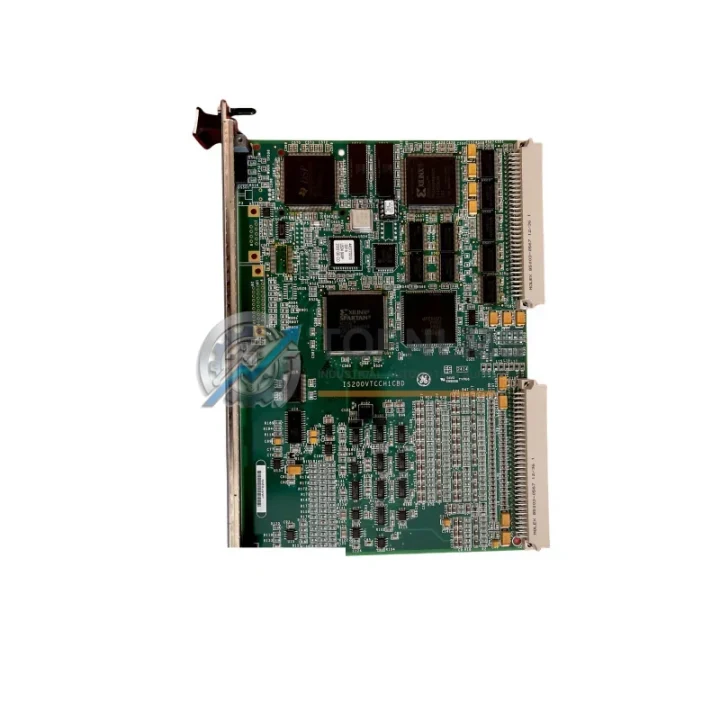

The GE IS200VTCCH1CBD is a high-integrity thermocouple processor board engineered as part of GE’s renowned Mark VI Turbine Control System within the IS200 series architecture. Designed to operate continuously in the most demanding industrial environments — including high-temperature turbine halls, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — this module delivers the signal accuracy and fault tolerance that mission-critical control systems demand.

As a core component of the Mark VI distributed control platform, the IS200VTCCH1CBD processes thermocouple input signals with precision, converting raw temperature data into reliable engineering values for the turbine control logic. Its robust PCB construction, conformal coating, and EMI-shielded design allow it to maintain stable operation even in the presence of strong electromagnetic interference generated by large motors, variable frequency drives (VFDs), and high-voltage switching equipment commonly found in power generation and petrochemical facilities.

In continuous production environments — oil refineries, gas compression stations, combined-cycle power plants, and steel mills — unexpected control system downtime translates directly into lost revenue and safety risk. The IS200VTCCH1CBD is built to minimize that risk. Its multi-channel thermocouple input architecture supports redundant temperature monitoring across turbine exhaust, combustion chamber, and bearing zones, feeding real-time data to the Mark VI controller for protective trip logic and performance optimization.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200VTCCH1CBD does not operate in isolation — it is one node in a tightly integrated safety and control architecture. In a typical Mark VI turbine control cabinet, it works in concert with the IS200VSVOH1B servo driver board and the IS200TREGH1B terminal board, which provide the physical I/O interface between field wiring and the control electronics. The IS200VTURH1BEE turbine control board coordinates overall protective relay logic, while the IS200VCMIH2C communication interface module ensures that temperature data is transmitted reliably over the Mark VI VME bus to the main controller.

For power conditioning and surge protection within the control cabinet, the IS200EPSMH1A power supply module provides stable, filtered DC power to all IS200 series boards, protecting sensitive analog circuits — including the thermocouple processor — from voltage transients caused by nearby motor starts or grid switching events. In facilities where electromagnetic interference is a persistent concern, pairing the IS200VTCCH1CBD with properly shielded IS200 series terminal boards and twisted-pair thermocouple extension cables is essential for maintaining signal integrity across long cable runs.

Where safety instrumented systems (SIS) are required — such as in SIL 2 or SIL 3 classified zones in oil refineries or chemical plants — the IS200VTCCH1CBD feeds temperature data into the Mark VI’s protective trip logic, working alongside IS200VRTDH1B RTD input modules and IS200VPROH1B protection modules to form a comprehensive multi-sensor safety layer. This redundant sensing architecture ensures that a single sensor or module failure does not compromise the protective function of the overall system.

Application in Critical Infrastructure

In combined-cycle power plants, the IS200VTCCH1CBD monitors exhaust gas temperatures across multiple turbine stages, providing the Mark VI controller with the real-time data needed to optimize combustion efficiency and trigger protective shutdowns before thermal limits are exceeded. Gas turbines operating at inlet temperatures above 1,300°C depend on accurate thermocouple signal processing to protect hot-section components worth millions of dollars.

In oil and gas compression stations and LNG facilities, where continuous operation is non-negotiable and maintenance windows are measured in years rather than months, the IS200VTCCH1CBD’s proven reliability makes it the preferred choice for both OEM installations and field replacement. Its compatibility with the full Mark VI IS200 series ecosystem means that technicians can swap a failed board without reconfiguring the control system, minimizing mean time to repair (MTTR) and restoring production quickly.

In mining and mineral processing operations — where dust ingress, mechanical vibration from crushers and conveyors, and wide ambient temperature swings are daily realities — the IS200VTCCH1CBD’s conformal-coated PCB and robust connector design provide the environmental protection needed for sustained, maintenance-free operation. Similarly, in steel and aluminum smelting facilities, where radiated heat and electromagnetic noise from arc furnaces create an exceptionally hostile electrical environment, this module’s shielded signal architecture maintains measurement accuracy where lesser components would fail.

Water treatment and municipal utilities also rely on Mark VI-based control systems for pump station automation and process monitoring, where the IS200VTCCH1CBD provides reliable temperature sensing for motor protection and process control applications.

Security & Quality FAQ

Q1: What warranty does the IS200VTCCH1CBD carry, and what does it cover?
Every IS200VTCCH1CBD shipped by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide a replacement or full refund — no questions asked. Our warranty reflects our confidence in the quality of every unit we ship.

Q2: How is each unit tested before shipment?
All IS200VTCCH1CBD boards undergo a multi-stage inspection and functional test protocol before dispatch. This includes visual inspection for physical damage, power-on functional verification, and signal path continuity testing. Refurbished units are additionally cleaned, re-soldered at critical joints, and tested under load conditions to confirm full operational integrity. A test report is available upon request.

Q3: Is the IS200VTCCH1CBD compatible with my existing Mark VI system?
Yes. The IS200VTCCH1CBD is a direct OEM-compatible replacement for GE Mark VI IS200 series thermocouple processor applications. It is designed to plug directly into the IS200 VME backplane without firmware changes or system reconfiguration in standard Mark VI installations. If you have a non-standard configuration or a Mark VIe variant, please contact our technical team with your system details for confirmation before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains dedicated inventory of high-demand Mark VI IS200 series modules, including the IS200VTCCH1CBD, to support both emergency replacement and planned maintenance programs. We work with power generation operators, EPC contractors, and MRO procurement teams to establish blanket purchase agreements and priority allocation for critical spare parts. Contact us to discuss your long-term supply requirements.
