GE IS200VTCCH1CBB Ruggedized VME Communication Module

Product Overview

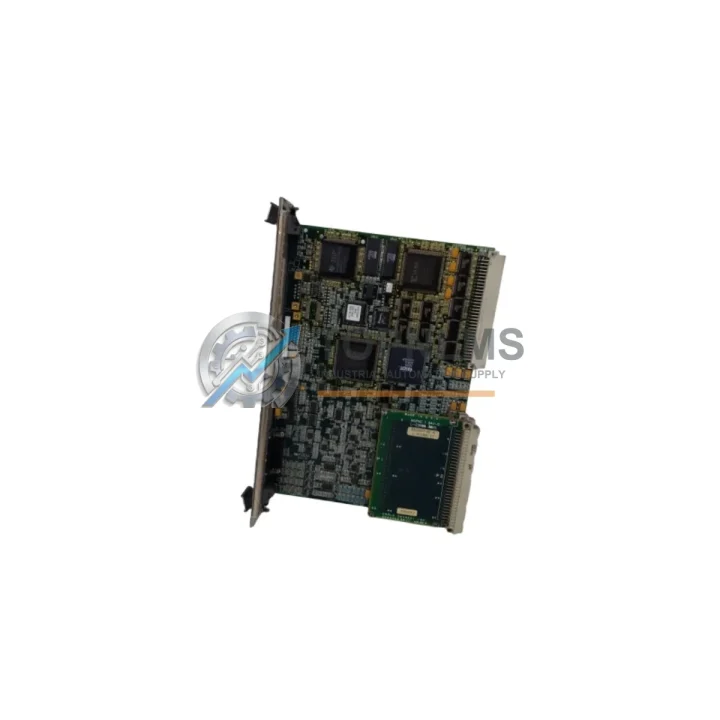

GE IS200VTCCH1CBB Ruggedized VME Communication Module: Industrial Resilience for Harsh Environments

The GE IS200VTCCH1CBB is a ruggedized VME bus communication board engineered for the GE Mark VI turbine control platform — one of the most demanding and safety-critical control architectures deployed in power generation, oil & gas, and heavy industrial facilities worldwide. Designed to operate continuously in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the communication backbone reliability that mission-critical turbine control systems demand.

As part of the GE IS200 series, the IS200VTCCH1CBB interfaces directly with the VME backplane architecture of the Mark VI controller, enabling high-speed, deterministic data exchange between the turbine control processor, I/O modules, and supervisory systems. Its robust hardware design incorporates conformal coating on the PCB assembly, hardened connectors rated for industrial duty cycles, and onboard signal conditioning that maintains data integrity even when the control cabinet is subjected to ground loops, high-frequency switching transients from nearby variable frequency drives (VFDs), or conducted EMI from large motor starters.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200VTCCH1CBB does not operate in isolation — it is the communication nerve center of a tightly integrated Mark VI control architecture. In a typical turbine control cabinet, this board works in concert with the IS200VTURH1BEE turbine protection module and the IS200TREGH1B terminal board, which provide the physical I/O interface for speed sensors, flame detectors, and vibration probes. The VME communication layer managed by the IS200VTCCH1CBB ensures that trip signals from the IS200TSVOH1B servo output board reach the turbine actuators within the deterministic response windows required by functional safety standards.

In installations where the Mark VI system interfaces with a plant-wide DCS — such as a GE Historian or a third-party SCADA platform via Modbus TCP or OPC-DA — the IS200VTCCH1CBB’s communication integrity is essential for accurate process data transmission. Companion modules such as the IS200ECTBG1A Ethernet communication terminal board and the IS200EPCTG1A Ethernet processor board extend the Mark VI’s supervisory connectivity, and all depend on a healthy VME bus backbone that this module anchors.

Power quality within the control cabinet is equally critical. The IS200EPSCG1A power supply module conditions the 28 VDC rail that feeds the VME backplane, and any instability in that rail directly affects the IS200VTCCH1CBB’s communication timing. Facilities that have upgraded their control cabinet power distribution to include redundant power supplies report significantly fewer communication faults on the VME bus. Similarly, the IS200VSVOH1B servo amplifier board and associated relay output modules rely on the communication board to receive setpoint updates from the Mark VI processor in real time — a dependency that underscores why maintaining a certified spare IS200VTCCH1CBB in the plant’s critical spare parts inventory is a recognized best practice in turbine maintenance programs.

Application in Critical Infrastructure

The GE IS200VTCCH1CBB is deployed across some of the world’s most demanding industrial environments. In combined-cycle power plants, it manages the VME communication bus for gas turbine units operating at continuous baseload, where an unplanned outage can cost tens of thousands of dollars per hour in lost generation revenue. The module’s ability to maintain deterministic bus timing under the thermal stress of a turbine hall — where ambient temperatures can exceed 45°C during summer peak demand — is a key reason plant engineers specify GE IS200 series components for long-term reliability.

In oil and gas processing facilities, including offshore platforms and onshore LNG terminals, the Mark VI system with IS200VTCCH1CBB at its communication core controls compressor trains and gas turbine-driven generators that must meet SIL 2 functional safety requirements. The board’s EMI hardening is particularly valued in these environments, where high-power electrical equipment, variable frequency drives controlling large pumps, and extensive cable runs create a challenging electromagnetic environment for sensitive control electronics.

In mining and mineral processing operations, where continuous production lines cannot tolerate unscheduled stops, the IS200VTCCH1CBB supports turbine-driven ventilation and power generation systems. Maintenance teams in these facilities prioritize having certified replacement boards on-site, as the lead time for unplanned procurement during a production outage is commercially unacceptable. Steel mills and aluminum smelters similarly rely on Mark VI-controlled turbines for captive power generation, and the IS200VTCCH1CBB’s role in maintaining communication between the turbine controller and the plant energy management system is operationally critical.

Water and wastewater treatment authorities operating large pumping stations with turbine-driven equipment also deploy Mark VI systems, where the IS200VTCCH1CBB enables remote monitoring and control integration with SCADA platforms — supporting the 24/7 unattended operation that modern utility infrastructure demands.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all functional failures attributable to component defects or workmanship under normal operating conditions consistent with GE Mark VI system specifications. If a unit fails within the warranty period, TOPNLMS will provide a replacement or full refund after technical verification. Claims are initiated by contacting [email protected] with the order reference and a description of the fault symptom.

Q2: How is each IS200VTCCH1CBB tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, PCB-level continuity testing, functional power-on verification, and where applicable, communication bus response testing. Units that do not pass all stages are quarantined and not offered for sale. A test report is available upon request for critical spare applications.

Q3: Is this board compatible with all Mark VI controller configurations, and can it replace an IS200VTCCH1CAA or other suffix variants?
The IS200VTCCH1CBB is designed for the GE Mark VI VME architecture and is functionally compatible with the IS200 series rack and backplane. Suffix letter differences (e.g., CAA vs. CBB) typically reflect minor hardware revisions. TOPNLMS recommends confirming the exact revision requirement with your Mark VI system documentation or contacting our technical team before ordering, to ensure full drop-in compatibility for your specific turbine control configuration.

Q4: Can TOPNLMS support long-term or repeat supply of IS200VTCCH1CBB for planned maintenance programs?
Yes. TOPNLMS maintains a dedicated inventory of GE IS200 series critical spare components to support planned maintenance, outage preparation, and long-term service agreements. We can provide volume pricing, reserved stock arrangements, and priority fulfillment for customers with scheduled turbine overhauls or multi-unit fleet maintenance programs. Contact our team at [email protected] or +86 18359293191 to discuss your supply requirements.
