GE IS200VAICH1CBA Ruggedized Analog Input Module

Product Overview

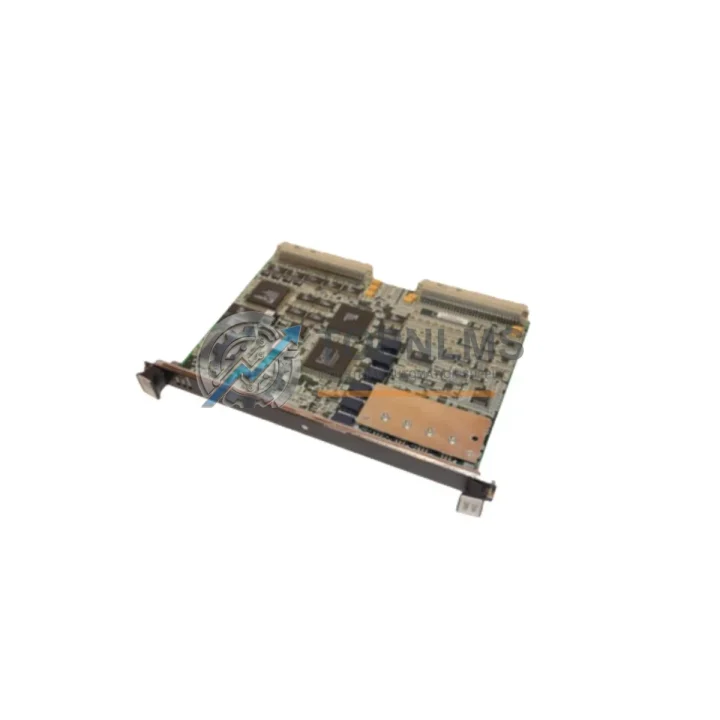

GE IS200VAICH1CBA Ruggedized Analog Input Module for Harsh Environments

The GE IS200VAICH1CBA is a high-reliability analog input module engineered for the Mark VI Turbine Control System — one of General Electric’s most proven distributed control architectures deployed across power generation, oil & gas, and heavy industrial facilities worldwide. Designed to operate continuously in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the signal integrity and operational stability that mission-critical turbine control demands.

In industrial facilities where a single point of failure can trigger unplanned shutdowns costing hundreds of thousands of dollars per hour, the IS200VAICH1CBA provides the analog signal conditioning and acquisition performance that plant engineers and reliability teams depend on. Its ruggedized design philosophy ensures that analog process variables — including temperature, pressure, flow, and vibration signals — are accurately captured and transmitted to the Mark VI controller core without degradation, even under the most demanding field conditions.

Whether deployed in a gas turbine power plant, a combined-cycle facility, a petrochemical compressor train, or a heavy industrial drive system, the IS200VAICH1CBA integrates seamlessly into the Mark VI I/O architecture. It works in close coordination with companion modules such as the IS200VTURH1BEE turbine protection card, the IS200VAOCH1BAA analog output module, and the IS200VCMIH2C communication interface module to form a complete, redundant control loop. The module’s compatibility with the Mark VI VME-based backplane ensures straightforward installation and replacement without requiring system reconfiguration.

In high-vibration environments such as rotating machinery halls, compressor stations, and offshore platforms, the IS200VAICH1CBA’s board-level conformal coating and robust connector design resist the mechanical stress that causes premature failure in standard industrial modules. Its EMI/RFI shielding architecture maintains signal accuracy even in switchgear rooms and motor control centers where variable frequency drives, high-voltage bus bars, and large contactors generate significant electromagnetic noise. This makes it a trusted choice for installations alongside GE Mark VI VCMI communication modules, IS200VSVOH1B servo output cards, and IS200VPROH1BDD protection modules within the same control cabinet.

For facilities operating in hazardous classified areas — including Zone 1 and Zone 2 gas environments or Class I Division 2 locations — the IS200VAICH1CBA supports integration with appropriate IS barriers and galvanic isolators to maintain intrinsic safety compliance. Its deterministic scan cycle and high-resolution analog-to-digital conversion ensure that safety instrumented system (SIS) logic receives accurate, time-stamped process data, supporting functional safety requirements aligned with IEC 61511 and IEC 61508 frameworks.

Continuous production lines in steel mills, cement plants, pulp and paper facilities, and water treatment infrastructure rely on the Mark VI platform’s proven track record. In these environments, the IS200VAICH1CBA operates alongside IS200VRTDH1BBA RTD input modules for temperature monitoring, IS200VDIAH1B digital input modules for discrete signal acquisition, and IS200VDIOH1B digital I/O modules for interlock and permissive logic. Together, these modules form the distributed I/O backbone that keeps turbines, generators, and auxiliary systems running at rated capacity around the clock.

At TOPNLMS, every IS200VAICH1CBA unit is sourced through verified supply channels and undergoes pre-shipment functional inspection to confirm board integrity, connector condition, and firmware compatibility. We maintain ready stock to support both planned maintenance outages and emergency breakdown replacements, with fast international shipping from our Xiamen, China facility. Our technical team can assist with cross-referencing compatible Mark VI I/O modules, confirming revision compatibility, and advising on installation best practices.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200VAICH1CBA is rarely deployed in isolation. In a fully configured Mark VI control cabinet, it operates as part of a layered protection and control architecture. The IS200VTURH1BEE turbine protection module monitors overspeed and emergency shutdown conditions, while the IS200VAOCH1BAA analog output module drives actuators and control valves based on the processed analog data. For communication redundancy, the IS200VCMIH2C communication interface module bridges the Mark VI I/O network to plant-level DCS or SCADA systems via Ethernet or serial protocols.

Temperature measurement accuracy is maintained by the IS200VRTDH1BBA RTD input module, which works in tandem with the IS200VAICH1CBA to provide comprehensive thermal monitoring across turbine bearing points, exhaust sections, and cooling circuits. Discrete interlock logic is handled by the IS200VDIAH1B digital input module and IS200VDIOH1B digital I/O module, ensuring that permissive conditions and safety interlocks are enforced in real time. Servo-driven inlet guide vanes and fuel control valves are managed through the IS200VSVOH1B servo output card, which relies on accurate analog feedback from the IS200VAICH1CBA to maintain precise positioning.

For power supply integrity within the control cabinet, GE Mark VI systems typically incorporate redundant 24 VDC industrial power supplies and IS200VPWRH1MEB power distribution modules to ensure that no single power fault disrupts the I/O subsystem. The IS200VAICH1CBA’s low power consumption profile makes it compatible with these redundant power architectures, supporting continuous operation even during partial power supply failures.

Application in Critical Infrastructure

The IS200VAICH1CBA has established a strong operational track record across the most demanding sectors of critical infrastructure. In gas turbine power plants, it monitors combustion dynamics, compressor inlet conditions, and exhaust gas temperatures, feeding real-time analog data to the Mark VI controller to optimize fuel efficiency and protect turbine hardware from thermal excursions. In combined-cycle facilities, it supports heat recovery steam generator (HRSG) control loops where precise temperature and pressure measurement is essential for steam quality and turbine ramp rates.

In the oil and gas sector, the module is deployed on offshore platforms and onshore compression stations where salt-laden air, hydrocarbon vapors, and extreme ambient temperatures challenge standard industrial electronics. Its conformal coating and sealed connector interface provide the environmental protection needed for reliable long-term operation in these corrosive atmospheres. Mining and mineral processing facilities use the IS200VAICH1CBA in crusher drive control systems and conveyor motor protection panels, where high dust concentrations and continuous vibration demand hardware that can withstand years of uninterrupted service.

Water and wastewater treatment plants rely on the Mark VI platform for pump station control and chemical dosing systems, where the IS200VAICH1CBA’s accurate analog input acquisition ensures that flow rates, chemical concentrations, and tank levels are monitored with the precision required for regulatory compliance. In metallurgical and steel production environments, the module supports electric arc furnace control and rolling mill drive systems, where electromagnetic interference levels are among the highest encountered in any industrial setting.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the IS200VAICH1CBA?
Every IS200VAICH1CBA shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This covers functional defects identified under normal operating conditions. Our technical team provides post-sale support to assist with installation verification and troubleshooting throughout the warranty period.

Q2: How is each unit tested before shipment?
All modules undergo a pre-shipment inspection protocol that includes visual board inspection, connector integrity verification, and functional power-on testing where applicable. Units sourced as refurbished are additionally tested for analog channel accuracy and backplane communication integrity before being released for sale.

Q3: Is the IS200VAICH1CBA compatible with both Mark VI and Mark VIe systems?
The IS200VAICH1CBA is designed for the GE Mark VI I/O architecture. Compatibility with Mark VIe systems depends on the specific backplane and controller revision in use. TOPNLMS recommends confirming your system’s I/O board revision and backplane type before ordering. Our technical team can assist with compatibility verification based on your system’s configuration data.

Q4: Can TOPNLMS support long-term or repeat supply requirements?
Yes. TOPNLMS maintains ongoing inventory of GE Mark VI series modules to support both planned maintenance programs and emergency breakdown replacements. We can accommodate repeat purchase orders and provide lead-time commitments for scheduled outage planning. Contact our team at [email protected] or +86 18359293191 to discuss your supply requirements.
