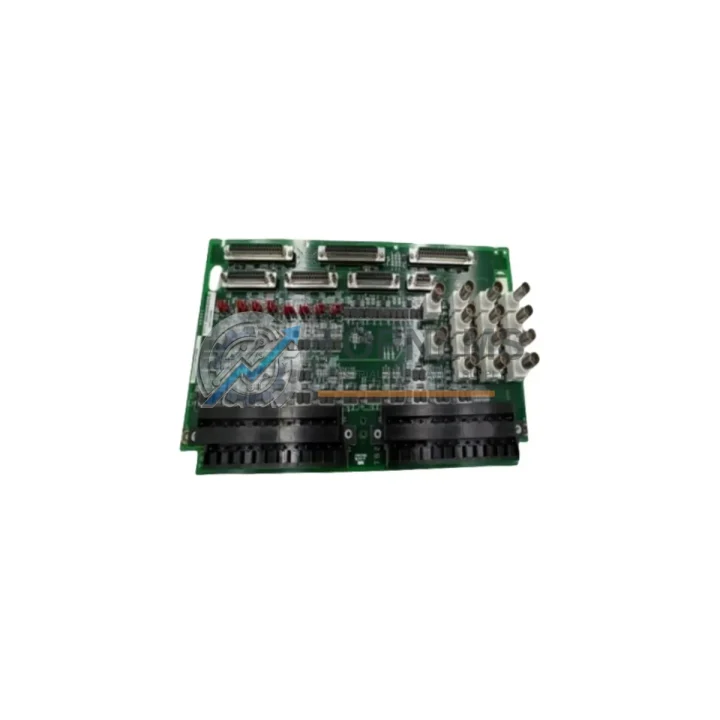

GE IS200TVIBH2BCC Ruggedized Vibration Terminal Board

Product Overview

GE IS200TVIBH2BCC Ruggedized Vibration Terminal Board: Industrial Resilience for Harsh Environments

The GE IS200TVIBH2BCC is a dual-channel proximity probe interface vibration terminal board engineered for the Mark VI Speedtronic turbine control system. Designed to operate reliably in the most demanding industrial environments — including high-temperature turbine enclosures, high-humidity coastal plants, dust-laden mining facilities, and electromagnetically noisy heavy industrial sites — this board delivers the signal integrity and mechanical robustness that critical rotating machinery protection demands.

In power generation, oil and gas, petrochemical, and heavy manufacturing facilities, vibration monitoring is not optional — it is the first line of defense against catastrophic machinery failure. The IS200TVIBH2BCC interfaces directly with proximity probes mounted on turbine shafts, compressor rotors, and pump assemblies, converting raw displacement signals into conditioned inputs that the Mark VI controller can process for real-time protection logic. Its dual-channel architecture ensures redundant signal paths, maintaining protection integrity even when one channel is under maintenance or experiencing transient interference.

Rugged Specifications Table

Comprehensive Protection Solutions

Vibration monitoring is only as reliable as the complete signal chain surrounding it. When deploying or replacing the IS200TVIBH2BCC in a Mark VI turbine control system, the integrity of adjacent components is equally critical. The IS200VCMI Mark VI communication interface board manages the data exchange between terminal boards and the main processor, and its condition directly affects how vibration data is interpreted and acted upon. Alongside it, the IS200VTURH1BDD turbine protection board processes the conditioned signals from the vibration terminal board and executes the trip logic that safeguards the machine.

In installations where shaft position and axial displacement are also monitored, the IS200TPROH1B proximity probe terminal board works in parallel with the IS200TVIBH2BCC to provide a complete picture of rotor dynamics. For facilities running redundant TMR (Triple Modular Redundancy) configurations, the IS200VSVOH1B servo terminal board and IS200TRLYH1BDD relay output terminal board are commonly found in the same control cabinet, managing actuator commands and protective relay outputs respectively.

Power supply stability is foundational to reliable vibration monitoring. The IS200EPSCG1A power supply board provides the regulated DC voltages that the Mark VI terminal boards require, and any degradation in its output can introduce noise into proximity probe signals, causing false vibration alarms. Facilities that have experienced nuisance trips often trace the root cause to power supply ripple rather than actual machinery vibration — making the EPSCG1A a recommended inspection item whenever the IS200TVIBH2BCC is being replaced.

For communication-intensive installations where the Mark VI system interfaces with a plant DCS via Modbus or PROFIBUS, the IS200BIICH1A communication interface board handles protocol translation, ensuring that vibration data reaches the control room historian and alarm management system without latency. In older plants where the Mark VI coexists with legacy Mark V hardware, the IS200STCIH2B serial communication board may also be present, bridging the two generations of control architecture.

When the full terminal board assembly is being refurbished, the IS200TBAIH2C analog input terminal board is frequently replaced at the same time, as it handles temperature and pressure signals that complement the vibration data in the overall machinery health picture. Sourcing these components together from a single supplier reduces lead time, simplifies incoming inspection, and ensures revision compatibility across the entire terminal board set.

Application in Critical Infrastructure

The IS200TVIBH2BCC is deployed across the full spectrum of critical industrial infrastructure where rotating machinery protection is non-negotiable.

In gas turbine power plants, this board monitors shaft vibration on GE Frame 6, Frame 7, and Frame 9 turbines, providing the early warning signals that allow operators to schedule maintenance before a bearing failure escalates into an unplanned outage. A single unplanned turbine trip in a peaking plant can cost tens of thousands of dollars in lost generation revenue — the IS200TVIBH2BCC is the component that prevents that scenario.

In offshore oil and gas platforms, where the combination of salt air, constant vibration from wave motion, and limited maintenance access makes component reliability paramount, the ruggedized design of the IS200TVIBH2BCC ensures that proximity probe signals remain clean and accurate even after years of continuous operation. Replacement cycles on offshore platforms are typically driven by planned turnarounds rather than failures, and having a tested spare IS200TVIBH2BCC on the shelf is standard practice for platform maintenance teams.

In petrochemical and refinery compressor trains, where centrifugal and reciprocating compressors run continuously for 18–24 month intervals between planned shutdowns, the IS200TVIBH2BCC provides the vibration monitoring backbone that API 670 machinery protection standards require. Its compatibility with standard Bently Nevada-type proximity probe systems means it can be integrated into existing probe installations without rewiring.

In mining and mineral processing facilities, where dust, vibration, and wide temperature swings are constant, the board’s industrial-grade construction ensures that the vibration monitoring system remains operational even in the harshest above-ground and underground environments.
