GE IS200TTURH1BED Replacement for Mark VI Series

Product Overview

GE IS200TTURH1BED Replacement for Mark VI Series: Smooth Migration from Legacy Turbine Control Systems

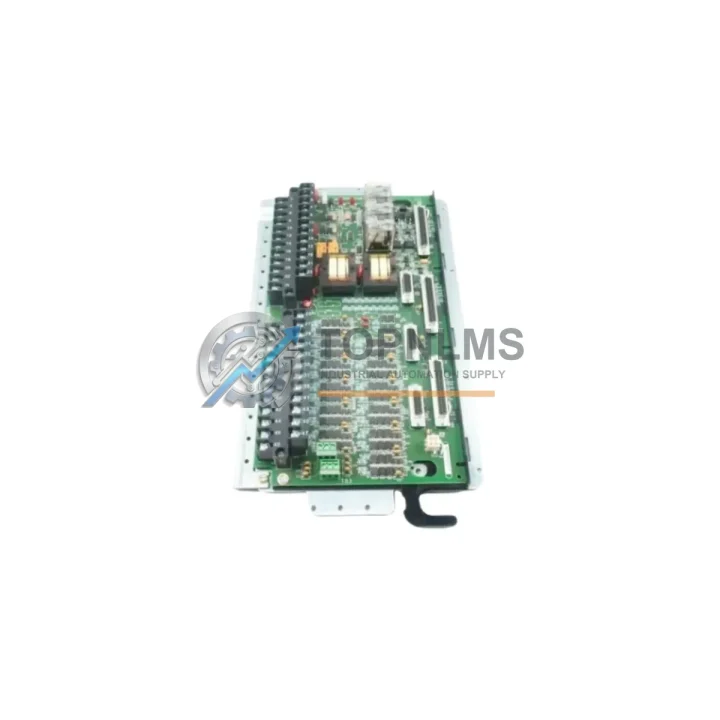

The GE IS200TTURH1BED is a turbine termination board designed for use within the GE Mark VI Speedtronic turbine control platform — one of the most widely deployed gas and steam turbine control architectures in power generation, oil & gas, and industrial processing facilities worldwide. As GE progressively phases out Mark VI hardware in favor of the Mark VIe platform, plant engineers and procurement teams face increasing pressure to source reliable replacement boards that maintain full backward compatibility with existing wiring, I/O assignments, and control logic.

TOPNLMS supplies the IS200TTURH1BED as a direct drop-in replacement for failed or end-of-life units, supporting customers through the full lifecycle of their turbine control modernization — from emergency single-board swap to phased system migration toward the Mark VIe architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IS200TTURH1BED replacement rarely occurs in isolation. In most Mark VI turbine control modernization projects, the termination board works in close coordination with a broader set of hardware components that must be verified or simultaneously upgraded to ensure system integrity.

During wiring and I/O verification, engineers typically audit the associated IS200BICLH1B I/O Link Controller and the IS200VTURH1BEE Turbine Control Board to confirm that signal routing from field sensors — thermocouples, RTDs, proximity probes, and vibration transducers — maps correctly to the new termination board’s terminal assignments. Where legacy cable harnesses were routed for older Mark V panels, a set of IS200TSVOH1B servo output termination boards may also need to be cross-checked for compatibility.

On the communication side, the IS200TTURH1BED operates within the GE IONET architecture. Plants migrating from serial-based Mark V systems will need to validate their IS200ECTBH1A Ethernet Communication Board configuration and, in some cases, install an updated IS200EPCTG1A Ethernet Patch Card to bridge legacy field devices to the Mark VI network backbone. Sites running dual-redundant control architectures should also verify the IS200TRLYH1BDD Relay Output Board for trip circuit continuity.

Power distribution is another critical checkpoint. The IS200TTURH1BED draws regulated 24 VDC from the Mark VI power supply module. If the existing IS200EPSCG1A Power Supply Card is approaching end-of-life or shows voltage drift, it is strongly recommended to replace it concurrently to avoid nuisance trips post-commissioning. Similarly, the IS200DSPXH1DBB Digital Signal Processor Board should be inspected if the turbine control application involves high-speed governor or fuel control loops that depend on deterministic scan times.

For sites undertaking a full panel retrofit — replacing the entire Mark VI control cabinet — the IS200VSVOH1BAA VME Servo Output Board and associated rack backplane components are typically sourced as a matched set to minimize integration risk and reduce field commissioning time. TOPNLMS maintains stock across this full range of Mark VI boards, enabling customers to consolidate procurement into a single order and reduce lead time exposure.

Retrofit Guidance FAQ

Q: Can the IS200TTURH1BED be installed without reprogramming the Mark VI controller?
A: In most like-for-like replacement scenarios within an existing Mark VI system, the board can be swapped without modifying the ToolboxST application. However, if the failed board had a different hardware revision suffix (e.g., BED vs. BAA), a firmware compatibility check is recommended before energizing the system.

Q: Is the wiring from a Mark V system directly compatible?
A: Mark V and Mark VI use different terminal block layouts and signal voltage levels. Direct wiring reuse is generally not possible without an adapter harness or full rewire. TOPNLMS recommends consulting the GE Mark VI System Guide (GEH-6421) for terminal mapping before installation.

Q: What communication protocols does this board support?
A: The IS200TTURH1BED operates within the GE IONET communication architecture, which uses a proprietary high-speed network for inter-board communication within the Mark VI VME rack. It does not natively support Modbus, PROFIBUS, or EtherNet/IP without an additional gateway module.

Q: How much physical space does the board require?
A: The board occupies a standard Mark VI VME rack slot. No additional panel space is required for a direct replacement. For new panel builds, the standard Mark VI control cabinet dimensions apply.

Q: What is the lead time for this board?
A: TOPNLMS maintains ready stock of the IS200TTURH1BED. Standard orders ship within 1–3 business days from Xiamen, China, with DHL Express, FedEx International Priority, or freight forwarding options available depending on destination and urgency.

Q: Can this board be used in a triple-redundant (TMR) Mark VI configuration?
A: Yes. The IS200TTURH1BED is compatible with both simplex and TMR Mark VI configurations. In TMR systems, three boards are installed in parallel across the R, S, and T controller racks. Ensure all three units are sourced from the same hardware revision to maintain voting logic integrity.

Warranty Assurance

Every IS200TTURH1BED unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a multi-point inspection process that includes visual examination for physical damage, connector integrity verification, and functional bench testing where applicable. Units that do not pass inspection are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: customers submit a fault report with photographic evidence and the original order reference, and a replacement unit is dispatched within 3–5 business days upon claim approval. Return shipping for defective units under warranty is coordinated by TOPNLMS at no additional cost to the buyer.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Certificate of Origin (COO) and other customs documentation are available upon request to support import clearance in regulated markets.

TOPNLMS is committed to supporting industrial customers through both emergency replacement scenarios and planned maintenance outages. Our technical team is available to assist with compatibility verification, cross-reference checks, and logistics coordination before and after purchase.

For urgent inquiries or bulk procurement, contact us directly:
📧 [email protected]
📞 +86 18359293191
