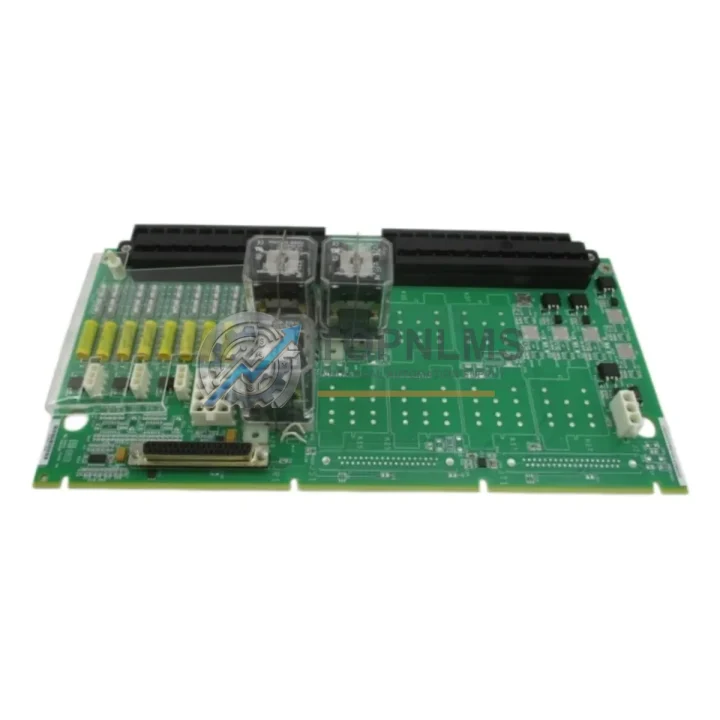

GE IS200TRPGH2B Ruggedized Trip Terminal Board

Product Overview

GE IS200TRPGH2B Ruggedized Trip Terminal Board: Industrial Resilience for Mission-Critical Turbine Control

The GE IS200TRPGH2B is a primary trip terminal board engineered for the GE Mark VI Turbine Control System — one of the most widely deployed distributed control architectures in gas turbine power generation, oil and gas compression, and heavy industrial drive applications worldwide. Designed to operate continuously in environments characterized by high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference, the IS200TRPGH2B delivers the signal integrity and switching reliability that safety-critical turbine protection systems demand without compromise.

In a Mark VI control architecture, the trip terminal board serves as the hardwired interface between the turbine’s protective relay logic and the physical trip solenoids, emergency stop circuits, and flame detector inputs that govern safe shutdown sequences. When a protective function is triggered — whether by overspeed detection, high exhaust temperature, loss of flame, or lube oil pressure fault — the IS200TRPGH2B ensures that the trip command is executed with the speed and determinism required to prevent catastrophic equipment damage or personnel injury. This is not a component where approximation or substitution is acceptable; the IS200TRPGH2B must be a genuine, specification-compliant board to maintain the integrity of the entire protection loop.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200TRPGH2B trip terminal board operates as a cornerstone of the GE Mark VI’s triple-redundant protection architecture. In a fully configured Mark VI panel, it works in concert with the IS200VSVOH1B Servo Driver Board, which manages fuel valve positioning, and the IS200DSPXH1D Digital Signal Processor Board, which executes the real-time control algorithms governing turbine speed, temperature, and load. The trip terminal board receives discrete shutdown commands from the IS200TSVOH1B Terminal Board for Servo Outputs and translates them into hardwired relay actions that physically de-energize trip solenoids — a fail-safe design that ensures shutdown occurs even in the event of a communication bus fault.

For complete system protection, the IS200TRPGH2B interfaces with the IS200TREGH1B Relay Output Terminal Board, which handles non-critical alarm relay outputs, and the IS200TBCIH1C Terminal Board for Contact Inputs, which aggregates field-level discrete signals from vibration switches, pressure switches, and temperature contacts into the Mark VI I/O subsystem. In installations where the Mark VI communicates with a plant-level DCS via the IS200EACAH1A Ethernet Adapter Card or a Modbus gateway, the trip terminal board’s hardwired logic remains independent of the communication layer — ensuring that a network fault cannot prevent a protective trip from executing.

In high-vibration environments such as gas turbine enclosures or compressor buildings, the IS200TRPGH2B’s board-level conformal coating and robust connector retention mechanisms prevent the contact intermittency and solder joint fatigue that can compromise unprotected electronics over years of continuous operation. When paired with a properly maintained IS200JPDFG1A Junction Box and Power Distribution Board and a regulated 28 VDC panel power supply, the trip terminal board delivers the stable operating environment that long-term reliability requires.

Application in Critical Infrastructure

The GE IS200TRPGH2B is deployed across the most demanding sectors of global energy and heavy industry, where turbine availability is directly tied to national grid stability, hydrocarbon production targets, and industrial output continuity.

In natural gas power generation, combined-cycle and simple-cycle gas turbine plants operating GE Frame 6, Frame 7, and Frame 9 machines rely on the Mark VI control system — and by extension, the IS200TRPGH2B trip terminal board — to execute protective shutdowns within milliseconds of a fault condition. An overspeed event on a 100 MW gas turbine that is not arrested within the protective system’s response time can result in catastrophic rotor failure, with consequences extending far beyond the turbine itself. The IS200TRPGH2B is the final hardwired barrier between a detected fault and a safe, controlled shutdown.

In oil and gas compression and processing, gas turbine-driven centrifugal compressors on LNG trains, pipeline booster stations, and offshore platforms operate in classified hazardous areas where the consequences of an uncontrolled shutdown — or worse, a failure to shut down — are measured in both financial and human terms. The IS200TRPGH2B’s deterministic relay logic provides the assurance that protective actions are not subject to software latency, bus arbitration delays, or processor loading effects that could compromise response time in a safety-critical event.

In petrochemical and refinery applications, process gas compressors and steam turbine drives equipped with Mark VI control systems depend on the trip terminal board to interface with SIL-rated safety instrumented systems (SIS). The board’s hardwired architecture is inherently compatible with IEC 61511 safety lifecycle requirements, making it a preferred component for facilities undergoing HAZOP review or SIL verification audits.

In mining and mineral processing, large gas turbine generator sets powering remote mine sites operate in environments with extreme dust loading, wide ambient temperature swings, and limited access to OEM spare parts. The ability to source a genuine, tested IS200TRPGH2B replacement from TOPNLMS — with verified functionality and a 12-month warranty — dramatically reduces the mean time to repair (MTTR) compared to waiting for OEM supply chains that can impose lead times of 16 to 26 weeks on critical spare parts.
