GE IS200TRLYH1BHH Replacement Upgrade Solution for Mark VI

Product Overview

GE IS200TRLYH1BHH Replacement Upgrade Solution for Mark VI: Smooth Transition from Legacy Relay Output Systems

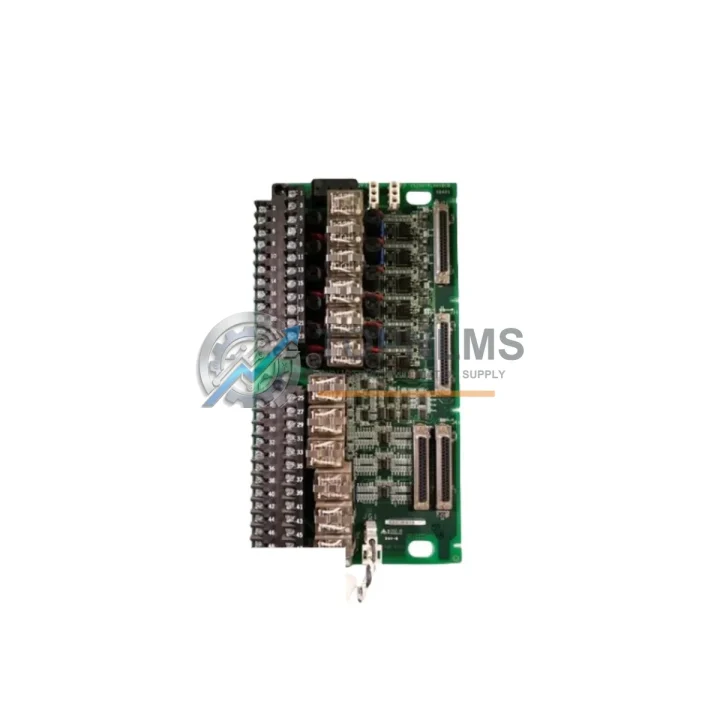

The GE IS200TRLYH1BHH is a Relay Terminal Board designed for the GE Mark VI Turbine Control System, functioning as a discrete output interface module that routes relay-switched signals between the controller backplane and field wiring terminals. When your existing IS200TRLYH1BHH reaches end-of-life, sustains damage, or becomes unavailable through OEM channels, a direct replacement or a validated upgrade path is essential to maintaining turbine availability and avoiding unplanned outages.

This product page covers the IS200TRLYH1BHH as a replacement and upgrade solution — including wiring compatibility, communication architecture, physical installation requirements, and procurement assurance — to help your engineering and maintenance teams make a confident, low-risk sourcing decision.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IS200TRLYH1BHH replacement rarely happens in isolation. In most Mark VI turbine control modernization projects, the relay terminal board works in close coordination with several other modules and components that may also require attention during the same maintenance window.

The IS200VTURH1B turbine control I/O board and the IS200DSPXH1B digital signal processor board are frequently serviced alongside the IS200TRLYH1BHH, as they share the same Mark VI rack and backplane bus. If your system uses the IS200TBAIH1C analog input terminal board or the IS200TBCIH1C contact input terminal board in adjacent slots, inspecting those modules during the same outage window reduces future downtime risk.

For sites running redundant control architectures, the IS200VSVOH1B servo output board and the IS200TREGH1B relay board are common companions in the same control cabinet. Communication between the Mark VI controller and the plant DCS or SCADA system typically passes through an IS200EIOCH1A Ethernet I/O communication module — verifying its firmware and connection integrity during a relay board swap is standard practice.

On the power distribution side, the Mark VI rack relies on a dedicated IS200EPCTG1A power converter module. If the relay board failure was preceded by voltage irregularities, the power module should be tested before commissioning the replacement IS200TRLYH1BHH. Field wiring connections to the terminal board are also a good time to inspect associated IS200TTURH1B turbine terminal boards and any signal isolators used on high-voltage discrete output circuits.

For sites planning a broader Mark VI to Mark VIe migration, the IS200TRLYH1BHH replacement can serve as the first step in a phased upgrade, with the IS200VCRCH1B VME controller card and updated ToolboxST configuration files forming the next phase of the modernization roadmap.

Retrofit Guidance FAQ

Q: Do I need to rewire field cables when replacing the IS200TRLYH1BHH?
No. The IS200TRLYH1BHH uses the same terminal block layout as previous relay terminal board revisions in the Mark VI family. Field wiring connections remain unchanged, eliminating the most time-consuming part of a typical board swap.

Q: Will my existing ToolboxST I/O configuration work with the replacement board?
Yes. The IS200TRLYH1BHH is recognized by ToolboxST using the same hardware descriptor as earlier revisions. Your existing I/O assignment, relay output mapping, and alarm configuration do not need to be rebuilt.

Q: Is the IONet backplane communication protocol compatible?
Fully compatible. The IS200TRLYH1BHH communicates over the Mark VI internal IONet bus, which is consistent across all Mark VI and Mark VIe I/O terminal boards. No protocol bridging or gateway hardware is required.

Q: Does the replacement board fit the existing cabinet and rack space?
Yes. The IS200TRLYH1BHH matches the standard Mark VI terminal board form factor. It installs into the same rack slot without any panel modification, bracket change, or DIN rail adjustment.

Q: What is the recommended commissioning procedure after installation?
After seating the board and reconnecting field wiring, perform a ToolboxST hardware scan to confirm module recognition, verify relay output channel assignments, and execute a forced output test on each discrete channel before returning the turbine to service. This procedure typically takes 30–60 minutes for an experienced controls technician.

Q: Can this board be used in a TMR (Triple Modular Redundant) Mark VI configuration?
Yes. The IS200TRLYH1BHH is compatible with both simplex and TMR Mark VI architectures. In TMR systems, ensure all three relay terminal board slots are populated with matched revision boards to maintain voting logic integrity.

Warranty Assurance

Every IS200TRLYH1BHH supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes a multi-point outgoing inspection that includes visual examination, connector integrity verification, and functional bench testing against Mark VI electrical specifications.

If a warranty claim arises within the coverage period, TOPNLMS provides a replacement unit or full refund based on the confirmed failure mode. Our after-sales response target is 24 hours for initial diagnosis and 72 hours for replacement dispatch. Units are shipped with full ESD-protective packaging, anti-static bags, and foam-lined cartons to prevent transit damage.

Stock is maintained in our Xiamen warehouse, enabling same-day or next-business-day dispatch for in-stock orders. Express international freight options (DHL, FedEx, UPS) are available for emergency replacement scenarios where minimizing turbine downtime is the primary concern.

For bulk procurement, long-term service agreements, or consignment stock arrangements, contact our industrial controls team directly to discuss pricing, lead times, and quality documentation (test reports, certificates of conformance).
