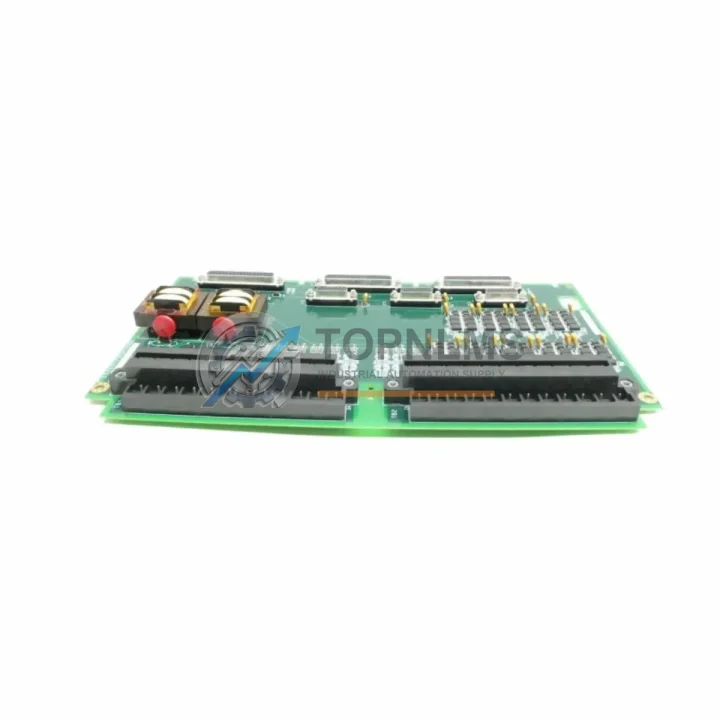

GE IS200TPROH1B Ruggedized Protective Termination Board

Product Overview

GE IS200TPROH1B Ruggedized Protective Termination Board: Industrial Resilience for Harsh Environments

The GE IS200TPROH1B is a Protective Termination Board engineered for the Mark VI Speedtronic turbine control platform — one of General Electric’s most widely deployed gas and steam turbine management systems in continuous heavy-industry operation. Designed to withstand the rigors of high-temperature enclosures, high-humidity coastal facilities, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference, the IS200TPROH1B delivers the signal integrity and circuit protection that mission-critical turbine control demands.

In power generation plants, petrochemical refineries, offshore platforms, and metallurgical facilities, the Mark VI Speedtronic system governs turbine start-up sequencing, speed regulation, flame detection, and emergency shutdown. The IS200TPROH1B serves as the protective termination interface between field wiring and the Mark VI I/O core, ensuring that transient voltage spikes, ground faults, and wiring faults are intercepted before they can propagate into the control electronics. This board is a non-negotiable component for maintaining system availability in environments where unplanned downtime carries six-figure-per-hour cost consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200TPROH1B does not operate in isolation — it is one node in a tightly integrated Mark VI control architecture. In a typical turbine control cabinet, this board interfaces directly with GE Mark VI I/O packs such as the IS200VTURH1B turbine protection module and the IS200DSPXH1B digital signal processor board, which together manage speed sensing, flame detection, and protective relay logic. Field signals from thermocouples, pressure transmitters, and proximity probes are routed through the IS200TPROH1B before reaching the I/O core, making its protective function indispensable.

Within the same control enclosure, the IS200TPROH1B works alongside power supply modules such as the IS200EPCTG1A and distribution boards that regulate 28 VDC and 125 VDC bus voltages across the Mark VI rack. Reliable DC power integrity is a prerequisite for the termination board’s protection circuits to function correctly — any power rail instability can compromise the board’s ability to clamp transient voltages. Operators managing Mark VI systems also frequently pair this board with IS200TRLYH1B relay output boards and IS200TSVOH1B servo output boards, which handle actuator commands for fuel valves, inlet guide vanes, and bleed valves in gas turbine applications.

For facilities running redundant Mark VI configurations — common in combined-cycle power plants and LNG compression stations — the IS200TPROH1B is deployed in triplicated TMR (Triple Modular Redundant) architectures alongside communication modules such as the IS200ECTBG1A Ethernet communication board, ensuring that protective termination is maintained across all three control lanes simultaneously. This redundancy is critical for SIL-rated safety loops where a single point of failure in the termination layer could trigger a spurious trip or, worse, mask a genuine fault condition.

Beyond the Mark VI ecosystem, facilities that operate mixed-vendor control environments — combining GE turbine controls with Siemens SIMATIC S7 PLCs, ABB AC800M DCS controllers, or Rockwell Automation ControlLogix systems — rely on properly protected termination boards to prevent ground loops and common-mode noise from corrupting cross-system analog signals. The IS200TPROH1B’s robust termination design makes it a reliable anchor point in these complex, multi-vendor signal chains.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities — including wellhead compression stations, gas gathering networks, and LNG liquefaction trains — the GE Mark VI Speedtronic system governs compressor and turbine-driven pump sets that operate continuously for months between planned maintenance windows. The IS200TPROH1B is exposed to hydrogen sulfide-laden atmospheres, salt-fog corrosion in coastal installations, and extreme diurnal temperature cycling in desert environments. Its protective termination function prevents field wiring faults — caused by insulation degradation, rodent damage, or connector corrosion — from propagating into the Mark VI I/O core and triggering unplanned shutdowns.

In coal-fired and combined-cycle power generation, the Mark VI platform controls steam and gas turbines that must maintain synchronization with the grid under rapidly varying load conditions. The IS200TPROH1B protects the signal paths for speed pickups, exhaust temperature thermocouples, and vibration probes — all of which are critical inputs to the turbine’s protective relay logic. A failed or degraded termination board in this context can result in nuisance trips, loss of protective monitoring, or in extreme cases, turbine overspeed events.

In metallurgical and heavy industrial applications — steel mills, aluminum smelters, and cement plants — turbine-driven blowers, compressors, and generators operate in environments with extreme airborne particulate contamination, high radiated heat from furnaces, and intense electromagnetic interference from large variable-frequency drives and arc furnaces. The IS200TPROH1B’s shielded termination design and transient suppression capability make it well-suited to maintaining signal integrity in these electromagnetically hostile environments.

In water and wastewater treatment infrastructure, large pumping stations and aeration blower systems driven by gas turbines or turbine-generator sets rely on Mark VI controls for speed regulation and protective shutdown. The IS200TPROH1B ensures that moisture ingress, chemical vapors, and ground potential differences between field instruments and the control room do not compromise the protective monitoring system.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the IS200TPROH1B?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the board fails to perform its specified protective termination function within the warranty period, TOPNLMS will provide a replacement or full refund. The warranty applies to both new and certified-refurbished units and is supported by our pre-shipment functional test documentation.

Q2: How is each IS200TPROH1B tested before shipment?
Every unit undergoes a multi-stage inspection process prior to dispatch: visual inspection for physical damage, connector integrity verification, continuity and isolation testing of all termination circuits, and where applicable, functional bench testing against GE Mark VI reference specifications. A test report is available upon request. Units are shipped in anti-static packaging with humidity indicator cards to ensure they arrive in the same condition they left our facility.

Q3: Is the IS200TPROH1B compatible with both Mark VI and Mark VIe systems?
The IS200TPROH1B is designed for the GE Mark VI Speedtronic platform. Compatibility with Mark VIe systems depends on the specific I/O pack and rack configuration in your installation. TOPNLMS technical staff can review your system’s Bill of Materials and confirm compatibility before order confirmation. We strongly recommend providing your existing rack configuration details to ensure a drop-in replacement without modification.

Q4: Can TOPNLMS support long-term supply of IS200TPROH1B for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of Mark VI Speedtronic components including the IS200TPROH1B to support planned maintenance shutdowns, emergency spares programs, and long-term service agreements. We can provide blanket purchase order arrangements, reserved stock allocations, and expedited shipping for emergency breakdown situations. Lead times for standard orders are typically 3–7 business days from our Xiamen warehouse, with express international freight options available for urgent requirements.
