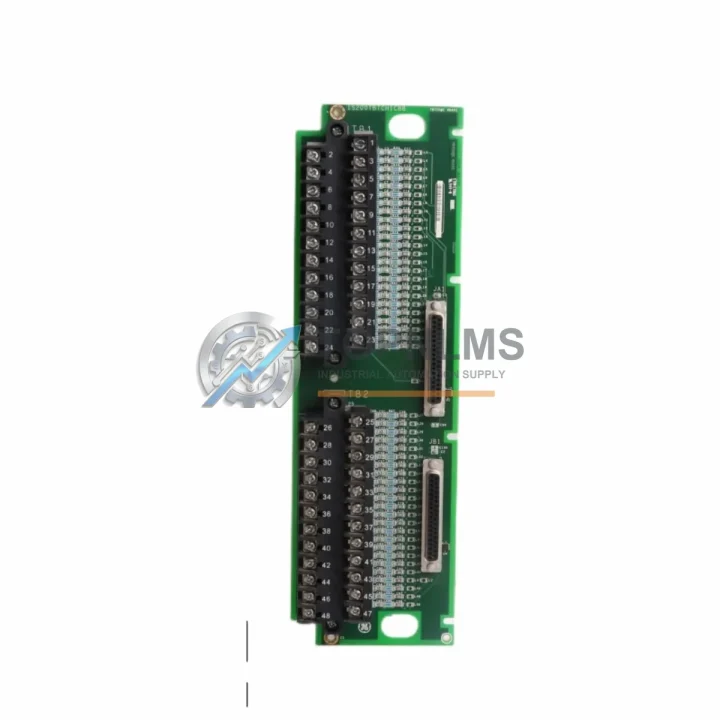

GE IS200TBTCH1C Ruggedized Thermocouple Terminal Board

Product Overview

GE IS200TBTCH1C Ruggedized Thermocouple Terminal Board: Industrial Resilience for Harsh Environments

The GE IS200TBTCH1C is a precision-engineered thermocouple terminal board designed for the General Electric Mark VI Turbine Control System and the broader IS200 series distributed control architecture. Built to operate reliably in the most demanding industrial environments — including high-temperature turbine halls, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the signal conditioning accuracy and structural integrity that mission-critical control systems demand.

In continuous production environments where even a momentary signal fault can cascade into unplanned downtime, the IS200TBTCH1C provides stable thermocouple input termination with robust EMI/RFI shielding, ensuring clean temperature data reaches the Mark VI controller without noise-induced errors. Its rugged PCB construction and conformal coating make it resistant to condensation, airborne particulates, and corrosive atmospheres commonly found in oil & gas processing, power generation, and metallurgical plants.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200TBTCH1C does not operate in isolation — it is a critical node within a tightly integrated Mark VI control architecture. In a typical turbine control cabinet, this thermocouple terminal board works in concert with the IS200VCMIH2C VCMI controller board, which processes the conditioned thermocouple signals and executes turbine protection logic. Alongside it, the IS200TTURH1C turbine terminal board handles speed and vibration inputs, while the IS200AEPAH1A analog I/O board manages process variable feedback loops.

For power distribution within the same control enclosure, the IS200EPSMH1A power supply module provides regulated DC rails to all IS200 series boards, ensuring that voltage transients from heavy motor starts or grid switching events do not propagate into the sensitive signal conditioning circuitry of the IS200TBTCH1C. The IS200TRLYH1B relay output terminal board handles discrete trip and alarm outputs, forming the final protective layer between the Mark VI logic and field actuators.

Communication integrity is maintained through the IS200VCMIH2C‘s IONet Ethernet backbone, which links the I/O racks to the Mark VI HMI and historian. In facilities where legacy MODBUS RTU or Profibus DP devices coexist with the Mark VI system, the IS200BIICH1A bus interface board bridges protocol boundaries without introducing latency that could compromise safety response times. For installations requiring redundant I/O, the IS200ISBAH1A I/O board provides hot-standby capability, ensuring that a single board failure does not interrupt thermocouple monitoring on critical turbine bearing or exhaust temperature channels.

Safety relay modules such as the IS200SRLYH1B safety relay board integrate directly with the Mark VI’s triple-modular redundancy (TMR) voting logic, providing SIL-rated trip outputs that respond within milliseconds to over-temperature conditions detected by the IS200TBTCH1C’s thermocouple inputs. This end-to-end signal chain — from thermocouple junction through terminal board, controller, and safety relay — represents the backbone of turbine overheat protection in gas-fired power plants and combined-cycle facilities worldwide.

Application in Critical Infrastructure

The GE IS200TBTCH1C is deployed across the full spectrum of heavy industrial and critical infrastructure sectors where temperature monitoring is a safety-critical function, not merely a process optimization tool.

In gas turbine power generation, the module monitors exhaust gas temperature (EGT) profiles across multiple thermocouple channels simultaneously, feeding real-time data to the Mark VI’s combustion control algorithms. Any deviation beyond programmed limits triggers automatic load shedding or emergency shutdown, preventing catastrophic hot-section damage. Plants operating in desert climates — where ambient temperatures routinely exceed 45°C — rely on the IS200TBTCH1C’s extended thermal tolerance to maintain measurement accuracy without drift.

In oil & gas upstream and midstream facilities, including offshore platforms and onshore compression stations, the module operates within explosion-proof or purged-and-pressurized control enclosures. Its compatibility with the Mark VI’s ATEX/IECEx-rated system architecture makes it suitable for Zone 2 hazardous area installations when properly housed. Compressor train temperature monitoring, heat exchanger outlet sensing, and fired heater tube skin temperature measurement are all typical applications.

In metallurgical and steel production environments, where electric arc furnaces and continuous casting lines generate intense electromagnetic interference, the IS200TBTCH1C’s shielded signal paths maintain thermocouple measurement integrity even in the presence of high-frequency switching noise from variable frequency drives (VFDs) and large transformer banks. Mold temperature monitoring, ladle preheating control, and annealing furnace profiling are representative use cases.

Water treatment and municipal utility facilities benefit from the module’s resistance to high-humidity environments, where condensation on unprotected electronics is a persistent failure mode. The conformal coating applied to the IS200TBTCH1C’s PCB prevents moisture-induced short circuits, extending mean time between failures (MTBF) in pump station control rooms and digester gas handling systems.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the IS200TBTCH1C?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified thermocouple signal conditioning function within the warranty period, TOPNLMS will provide a replacement or full refund. The warranty period begins from the date of confirmed delivery. Damage resulting from incorrect installation, overvoltage events beyond rated limits, or unauthorized modification is excluded.

Q2: How is each IS200TBTCH1C tested before shipment?
Every unit undergoes a multi-point functional verification process prior to dispatch. This includes power-on self-test (POST) validation, thermocouple channel continuity checks, backplane connector integrity inspection, and visual PCB examination for cold solder joints, corrosion, or component damage. Units that do not pass all test criteria are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement.

Q3: Is the IS200TBTCH1C compatible with both Mark VI and Mark VIe systems?
The IS200TBTCH1C is natively designed for the GE Mark VI I/O architecture. Compatibility with Mark VIe systems depends on the specific I/O rack configuration and firmware revision in use at your site. TOPNLMS technical staff can assist with cross-referencing your Mark VIe rack part numbers to confirm direct interchangeability or identify the appropriate Mark VIe equivalent (such as IS200TBTCH1D or later revisions) before purchase. Please provide your existing rack assembly number when inquiring.

Q4: Can TOPNLMS support long-term or repeat supply of the IS200TBTCH1C for planned maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand Mark VI IS200 series boards and can support scheduled maintenance programs, annual spare parts contracts, and emergency breakdown supply. Lead times for in-stock units are typically 3–7 business days for international shipment. For customers managing multi-unit turbine fleets, volume pricing and reserved stock arrangements are available. Contact our team to discuss a tailored supply agreement.
