GE IS200TBTCH1BBB Replacement Solution for Mark VI

Product Overview

GE IS200TBTCH1BBB Replacement Solution for Mark VI — Seamless Turbine Control Upgrade

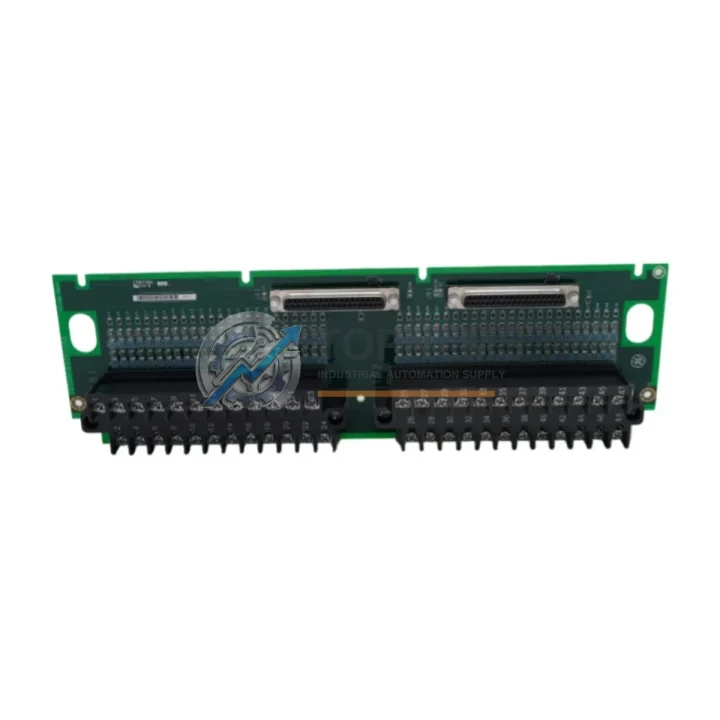

The GE IS200TBTCH1BBB is a Thermocouple Terminal Board designed for the GE Mark VI Turbine Control System — one of the most widely deployed turbine management platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As aging Mark VI systems approach end-of-life and OEM support windows narrow, sourcing a verified, original-specification IS200TBTCH1BBB becomes a critical priority for maintenance engineers and reliability teams managing gas turbines, steam turbines, and combined-cycle units.

At TOPNLMS, every IS200TBTCH1BBB unit is sourced from original manufacturing channels, subjected to pre-shipment functional verification, and backed by a 12-month replacement warranty. Whether you are executing an emergency swap during an unplanned outage or building a strategic spare inventory ahead of a scheduled overhaul, this board ships ready for immediate installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the IS200TBTCH1BBB is rarely an isolated action. In a Mark VI turbine control cabinet, the thermocouple terminal board operates as part of a tightly integrated I/O architecture. During a planned outage or emergency repair, maintenance teams routinely inspect and — where necessary — replace adjacent components to ensure the entire control loop is restored to full reliability.

The IS200TBTCH1BBB interfaces directly with the Mark VI I/O processor boards. If the thermocouple board has failed due to age or thermal stress, it is prudent to simultaneously inspect the IS200VTURH1B Turbine Control I/O Board and the IS200TRLYH1B Relay Output Board, both of which share the same I/O rack and are subject to similar environmental aging. A failed TC board often signals broader thermal fatigue across the rack.

On the power supply side, the Mark VI cabinet relies on redundant IS200EPCTG1A Power Supply Boards to maintain continuous operation. During a board swap, verifying the health of the power supply modules prevents a secondary failure from interrupting the restoration process. Similarly, the IS200DSPXH1D Digital Signal Processor Board — which handles the computational workload for turbine protection logic — should be confirmed operational before returning the unit to service.

For facilities migrating from Mark V to Mark VI, the upgrade path involves not only the thermocouple terminal boards but also the IS200STCIH1A Static Contact Input Board and the IS200AAIAH1A Analog Input Board, which handle discrete and analog field signals respectively. Field wiring re-termination to Mark VI terminal conventions is required, and the IS200TTURH1B Terminal Board is commonly used as the interface point for field cable connections in the upgraded rack.

Communication infrastructure is another key consideration. The Mark VI system uses IONet Ethernet-based I/O communication, a significant architectural shift from the Mark V’s ARCNET serial bus. Facilities upgrading from Mark V will need to provision IONet switches and communication modules compatible with the Mark VI controller, such as the IS200ECTBG1A Ethernet Communication Terminal Board, to complete the network migration.

Finally, for HMI and operator interface continuity, many sites pair the Mark VI controller with GE Cimplicity SCADA or upgrade to modern HMI panels that support Mark VI’s OPC-DA/UA data interface. Ensuring the HMI configuration is updated to reflect any I/O address changes resulting from the board replacement is a critical final step before returning the turbine to automatic control.

TOPNLMS maintains stock of IS200-series boards across the Mark VI platform, enabling customers to source multiple components in a single order — reducing lead time, simplifying logistics, and minimizing total outage duration.

Retrofit Guidance FAQ

Q1: Can the IS200TBTCH1BBB be used as a direct drop-in replacement without reprogramming?
Yes — within a Mark VI system, the IS200TBTCH1BBB is a direct hardware replacement. The Mark VI controller automatically recognizes the board via the I/O rack configuration stored in the Toolbox software. No reprogramming is required for a like-for-like swap. However, if the replacement board has a different revision suffix, verify compatibility against your site’s Mark VI Toolbox configuration file before installation.

Q2: Is this board compatible with Mark V systems?
No — the IS200TBTCH1BBB is designed exclusively for the Mark VI I/O rack architecture. Mark V systems use a different board form factor, connector pinout, and communication bus (ARCNET vs. IONet). Cross-generation use requires a full rack and backplane replacement, which constitutes a Mark V-to-Mark VI migration project rather than a simple board swap.

Q3: What field wiring changes are needed when replacing a failed IS200TBTCH1BBB?
For a like-for-like replacement within an existing Mark VI installation, field wiring connections at the terminal board are identical. Disconnect and reconnect thermocouple leads to the same terminal positions on the new board. Verify thermocouple type jumper settings (if applicable) match the original board configuration before powering up. No changes to the IONet communication wiring are required.

Q4: How do I verify the board is functioning correctly after installation?
After installation, use the GE Mark VI Toolbox diagnostic software to confirm the board is recognized in the I/O rack and that all thermocouple channels are reading within expected ranges. Compare live temperature readings against known reference values or portable calibrators. Any channel showing open-circuit or out-of-range readings should be investigated for field wiring continuity before concluding the board is at fault.

Warranty Assurance

Every IS200TBTCH1BBB supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Our pre-shipment testing protocol includes board-level functional verification to confirm signal conditioning integrity and connector condition prior to dispatch. In the event of a warranty claim, our after-sales team responds within one business day to initiate the replacement process, minimizing the impact on your maintenance schedule.

We support customers across power generation, petrochemical, cement, and heavy manufacturing sectors with reliable spare part sourcing, competitive lead times, and documented traceability. Orders are processed with full export documentation to support international customs clearance, and shipments are tracked end-to-end.

For procurement inquiries, bulk orders, or technical compatibility questions, contact our team directly.
