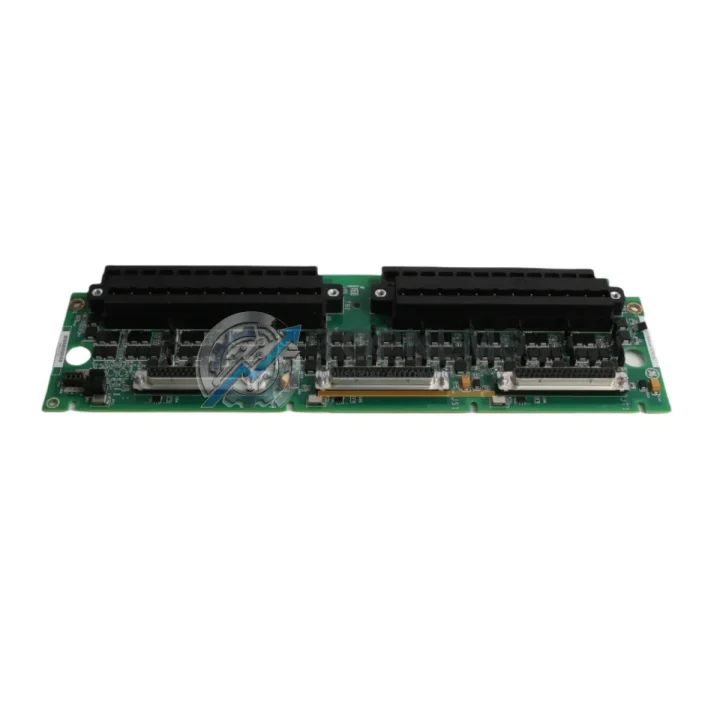

GE IS200TBAIS1C Replacement for Mark VI Series: Smooth Transition & Legacy System Compatibility

The GE IS200TBAIS1C is a critical Analog I/O Terminal Board designed for the GE Mark VI Turbine Control System — one of the most widely deployed gas turbine and steam turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As GE progressively phases out legacy Mark VI hardware, plant engineers and procurement teams face increasing pressure to source reliable, tested replacement boards that maintain full backward compatibility with existing wiring harnesses, I/O signal conditioning circuits, and control system architectures.

At TOPNLMS, we stock the IS200TBAIS1C as a direct drop-in replacement for failed or end-of-life units. Whether your facility is executing a planned Mark VI lifecycle extension, responding to an unplanned board failure, or preparing a phased migration toward the GE Mark VIe platform, the IS200TBAIS1C can be integrated with minimal disruption to your existing control cabinet layout and field wiring infrastructure.

The IS200TBAIS1C interfaces directly with the VCMI or VCRC core I/O processor modules within the Mark VI rack assembly. It handles analog input signal termination — including thermocouple, RTD, 4–20 mA current loop, and millivolt-level process signals — making it indispensable in turbine exhaust temperature monitoring, fuel flow measurement, vibration signal conditioning, and generator excitation feedback loops. When replacing a failed IS200TBAIS1C, field technicians can reuse the existing terminal wiring without re-labeling or re-routing, as the board’s screw terminal layout and signal mapping are preserved across production revisions.

For facilities running mixed Mark VI and Mark VIe architectures, the IS200TBAIS1C continues to serve as the analog front-end for legacy I/O packs such as the TBAI, TBTC, and TBQC terminal board family. Engineers migrating from older Mark V systems will find that the IS200TBAIS1C’s signal conditioning range and terminal pitch are compatible with most existing field cable assemblies, significantly reducing retrofit labor costs and commissioning time.

In practice, a typical IS200TBAIS1C replacement workflow involves: powering down the affected I/O pack, documenting the existing terminal wiring with photographic records, removing the failed board from the DIN-rail or rack-mount position, installing the replacement IS200TBAIS1C, reconnecting field wiring to the corresponding terminal blocks, and performing a loop check against the Mark VI Toolbox configuration. No firmware changes or I/O configuration edits are required when replacing like-for-like within the same Mark VI revision family. The IS200TBAIS1C is fully compatible with GE’s Mark VI Toolbox software environment, and signal scaling parameters defined in the VCMI or VCRC processor are retained without modification.

For facilities undertaking a broader control system modernization — such as migrating from a standalone Mark VI turbine controller to an integrated Mark VIe distributed control architecture — the IS200TBAIS1C can serve as a bridge component during the transition period. It allows continued operation of legacy analog I/O loops while new IS200 series I/O modules, such as the IS200VCRCH1B VCRC controller board or the IS200VCMIH2C VCMI module, are commissioned in parallel. This phased approach minimizes turbine downtime and allows control engineers to validate new I/O mappings against live process data before cutover.

Procurement teams should also note that the IS200TBAIS1C is frequently required alongside companion components in the same control cabinet. During a Mark VI analog I/O section rebuild, it is common to simultaneously replace the IS200TBAIH1C terminal board interface, the IS200VCMIH2C VCMI processor, the IS200VCRCH1B VCRC board, and associated JR1 or JR2 ribbon cable assemblies that interconnect the terminal board to the I/O processor. Power supply modules such as the IS200EPSMH1A or IS200EPSMH1B are also frequently evaluated during the same maintenance window, as aging power supplies are a common root cause of intermittent analog signal errors that are initially misdiagnosed as terminal board failures.

For communication-intensive Mark VI installations where the turbine controller interfaces with a plant DCS via Modbus RTU, Profibus DP, or GE’s proprietary IONet Ethernet protocol, replacing the IS200TBAIS1C does not affect the communication layer. The analog I/O terminal board operates independently of the communication modules, and existing IONet or serial communication configurations in the Mark VI Toolbox remain intact after board replacement. However, if the replacement is part of a broader upgrade that includes installing a new IS200BIICH1A or IS200BICIH1A IONet interface board, communication parameters should be re-verified post-commissioning.

All IS200TBAIS1C units shipped by TOPNLMS are sourced from verified industrial surplus channels, subjected to visual inspection, functional bench testing, and ESD-safe packaging before dispatch. Units are shipped with full traceability documentation and are backed by our 12-month replacement warranty. We maintain stock in Xiamen, China, with express DHL, FedEx, and UPS shipping options available for urgent plant maintenance requirements globally.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IS200TBAIS1C replacement or Mark VI analog I/O section upgrade typically involves coordinating several interconnected components within the same control cabinet or rack assembly. The IS200TBAIH1C terminal board interface module is the most common companion part, providing the physical bridge between the IS200TBAIS1C screw terminals and the I/O processor ribbon cable. In systems where the VCMI processor is also being refreshed, the IS200VCMIH2C VCMI module should be evaluated simultaneously to ensure firmware revision compatibility with the terminal board.

For facilities replacing aging power infrastructure within the Mark VI cabinet, the IS200EPSMH1A power supply module is a frequent co-replacement item — intermittent 24 VDC rail instability is a known cause of false analog signal errors that can be misattributed to the terminal board itself. Similarly, the JR1 and JR2 ribbon cable assemblies that connect the IS200TBAIS1C to the I/O processor should be inspected and replaced if they show signs of connector wear or insulation degradation.

In turbine control applications where the Mark VI system communicates with a plant-level DCS or SCADA via serial protocols, the IS200BIICH1A IONet interface board and IS200BICIH1A communication module are often part of the same maintenance scope. For installations migrating toward GE Mark VIe architecture, the IS200VCRCH1B VCRC controller board serves as the next-generation I/O processor that can operate alongside legacy IS200 terminal boards during a phased cutover. HMI workstations running GE’s Cimplicity or iFIX SCADA software do not require reconfiguration when the IS200TBAIS1C is replaced like-for-like, as the I/O tag database and signal scaling parameters are stored in the Mark VI Toolbox project file, not on the terminal board itself.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing the IS200TBAIS1C?
A: Yes. The IS200TBAIS1C uses the same terminal block layout and signal assignment as previous production revisions. Existing field cables can be reconnected to the same terminal positions without modification, provided the wiring documentation matches the installed Mark VI Toolbox I/O configuration.

Q: Do I need to update the Mark VI Toolbox project after replacing the board?
A: No changes to the Toolbox project are required for a like-for-like IS200TBAIS1C replacement. Signal scaling, engineering unit conversions, and alarm setpoints stored in the VCMI or VCRC processor are unaffected by the terminal board swap.

Q: Is the IS200TBAIS1C compatible with both Mark VI and Mark VIe systems?
A: The IS200TBAIS1C is natively designed for the Mark VI platform. In Mark VIe installations that retain legacy IS200 I/O packs for backward compatibility, the board can continue to function within its original I/O pack assembly. Full Mark VIe native I/O uses a different terminal board family.

Q: What communication protocols are supported?
A: The IS200TBAIS1C is an analog I/O termination board and does not directly handle communication protocols. Protocol support (IONet Ethernet, Modbus RTU, Profibus DP) is managed by the VCMI or VCRC processor module and the associated communication interface boards. Replacing the IS200TBAIS1C has no impact on the communication configuration.

Q: How much physical space does the IS200TBAIS1C require?
A: The IS200TBAIS1C occupies the same rack slot or DIN-rail position as the original board. No additional cabinet space is required for a direct replacement. If the replacement is part of a broader rack rebuild, consult the GE Mark VI hardware installation manual for rack slot assignments and I/O pack spacing requirements.

Q: What is the typical commissioning time for an IS200TBAIS1C replacement?
A: For an experienced Mark VI technician performing a like-for-like replacement with pre-documented wiring, the physical swap and loop check can typically be completed within 2–4 hours, depending on the number of analog channels in service and the accessibility of the control cabinet.

Warranty Assurance

Every IS200TBAIS1C unit shipped by TOPNLMS is covered by a 12-Month Replacement Warranty from the date of delivery. Our pre-shipment process includes visual inspection for physical damage, ESD-safe handling throughout storage and packaging, and functional verification where test equipment is applicable. Units are shipped in anti-static packaging with foam protection suitable for international air freight.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit at no additional cost, with priority processing for customers experiencing active plant downtime. Our technical support team is available via email at [email protected] to assist with pre-purchase compatibility verification, installation guidance, and post-delivery commissioning questions.

We ship globally from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide Express options available. Most in-stock orders are dispatched within 1–2 business days. Export documentation, including commercial invoices, packing lists, and certificates of origin, is provided with every shipment to facilitate customs clearance in all major industrial markets.

For bulk procurement, long-term supply agreements, or emergency plant maintenance requirements, please contact our sales team directly to discuss lead times, pricing, and consignment stock arrangements.
