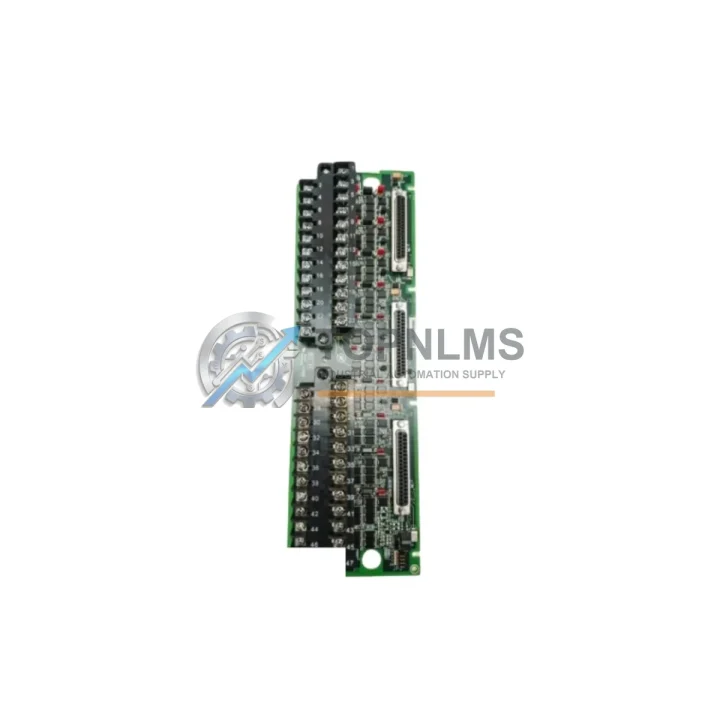

GE IS200TBAIH1CDD Original Industrial Spare Mark VI Compatible

Product Overview

GE IS200TBAIH1CDD: Sustaining Mark VI Speedtronic System Stability

The GE IS200TBAIH1CDD is an original analog input terminal board engineered for the GE Mark VI Speedtronic turbine control system — one of the most widely deployed DCS/turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As aging Mark VI systems continue to serve critical production lines, maintaining a verified spare inventory of key I/O boards like the IS200TBAIH1CDD is a frontline strategy for minimizing unplanned downtime and extending the operational life of existing control infrastructure.

This board serves as the primary interface for analog signal conditioning within the Mark VI I/O rack, accepting 4–20 mA and voltage-based process signals from field instruments including thermocouples, RTDs, pressure transmitters, and flow sensors. Its role in the turbine control loop makes it a high-priority spare: a failed or degraded IS200TBAIH1CDD can trigger turbine trips, loss of process visibility, or unsafe operating conditions that force emergency shutdowns.

Critical Technical Specs

Preventive Maintenance Strategy

Effective maintenance of a GE Mark VI Speedtronic system goes well beyond replacing a single I/O board. When scheduling a planned outage or responding to an unplanned turbine trip, maintenance engineers should treat the IS200TBAIH1CDD replacement as an opportunity to audit the broader I/O and control architecture. Signal integrity issues that cause analog input errors frequently originate upstream or downstream of the terminal board itself.

Begin by inspecting the IS200TBCIH1C analog output terminal board in the same rack — output signal drift can mask what appears to be an input fault. Simultaneously, verify the condition of the IS200VCMIH1C VME communication module, which manages IONet data exchange between the I/O boards and the Mark VI controller; a degraded VCMI can cause intermittent analog read failures that are misdiagnosed as terminal board faults.

The IS200VCRCH1BBB controller board should be inspected for firmware version compatibility whenever an I/O board is replaced — mismatched firmware revisions between the VCRC and updated terminal boards have caused configuration errors in field deployments. While the rack is open, check the IS200EPSMH1A power supply module for output voltage stability; an under-voltage condition on the 28 VDC backplane rail is a common root cause of analog channel noise and false trip signals.

For facilities running redundant Mark VI configurations (TMR — Triple Modular Redundancy), it is best practice to stock the IS200TBAIH1CDD in sets of three. Alongside the terminal board, maintain spares for the IS200TRLYH1C relay output terminal board and the IS200TBCIH1C analog output board to ensure full I/O redundancy can be restored without waiting on procurement lead times during a live outage.

Field wiring integrity is equally critical. Inspect Mark VI I/O terminal connectors and field wiring harnesses for corrosion, loose terminations, or insulation breakdown — particularly in high-humidity or high-vibration environments such as offshore platforms or outdoor gas turbine enclosures. Pair this inspection with a review of signal isolator modules on 4–20 mA loops feeding the IS200TBAIH1CDD; degraded isolators introduce ground loops that corrupt analog readings and accelerate terminal board wear.

Finally, document the replacement in your CMMS and update the Mark VI ToolboxST configuration backup to reflect any hardware revision changes. Proactive spare management — including stocking the IS200TBAIH1CDD alongside related boards — is the most cost-effective strategy for sustaining turbine availability in aging Speedtronic installations.

Strategic Replacement Solutions

The IS200TBAIH1CDD is a direct replacement for earlier Mark VI analog input terminal board revisions, including the IS200TBAIH1CAA and IS200TBAIH1CBB. These legacy variants are increasingly difficult to source as GE’s authorized service network deprioritizes end-of-life Mark VI hardware. Stocking the IS200TBAIH1CDD provides a forward-compatible solution that maintains full electrical and software compatibility with existing Mark VI racks without requiring controller reconfiguration or ToolboxST project modifications.

For facilities managing a fleet of GE Frame 5, Frame 6, Frame 7, or Frame 9 gas turbines, the IS200TBAIH1CDD is a high-frequency failure item due to its exposure to process signal transients and thermal cycling. Establishing a minimum stock level of 1–2 units per turbine train significantly reduces mean time to repair (MTTR) and eliminates the 4–12 week lead time associated with sourcing obsolete GE Mark VI components through OEM channels.

Our IS200TBAIH1CDD units are sourced from verified industrial surplus channels, inspected for physical integrity, and tested for electrical functionality prior to shipment. Each unit ships with full traceability documentation and is covered by a 12-month warranty against manufacturing defects and functional failure — providing procurement teams with the confidence needed to approve non-OEM spare sourcing for critical turbine control applications.

Support FAQ

Q1: Is the IS200TBAIH1CDD compatible with all Mark VI Speedtronic configurations?
The IS200TBAIH1CDD is designed for GE Mark VI Speedtronic systems and is compatible with standard simplex and TMR rack configurations. Compatibility with specific controller board revisions (VCRC, VCMI) should be verified against your ToolboxST hardware configuration file. Contact our technical team with your existing board revision for confirmation before ordering.

Q2: What is the lead time and shipping process?
In-stock units ship within 1–3 business days via DHL, FedEx, or UPS international express. All units are inspected and tested before dispatch. Export documentation, including commercial invoice and packing list, is provided for customs clearance. Expedited shipping options are available for emergency maintenance situations.

Q3: How is the 12-month warranty applied?
The 12-month warranty covers functional failure under normal operating conditions and begins from the date of shipment. Warranty claims are processed by returning the defective unit for inspection. Confirmed defective units are replaced at no charge. Physical damage caused by incorrect installation, overvoltage, or environmental exposure is excluded from warranty coverage.

Q4: Can I use this board to replace an IS200TBAIH1CAA or IS200TBAIH1CBB?
Yes. The IS200TBAIH1CDD is a later hardware revision of the same terminal board family and is electrically and mechanically compatible with earlier CAA and CBB revisions in the same rack slot. No ToolboxST software changes are required for a direct swap. We recommend performing a full analog channel calibration check after installation to confirm signal accuracy.
