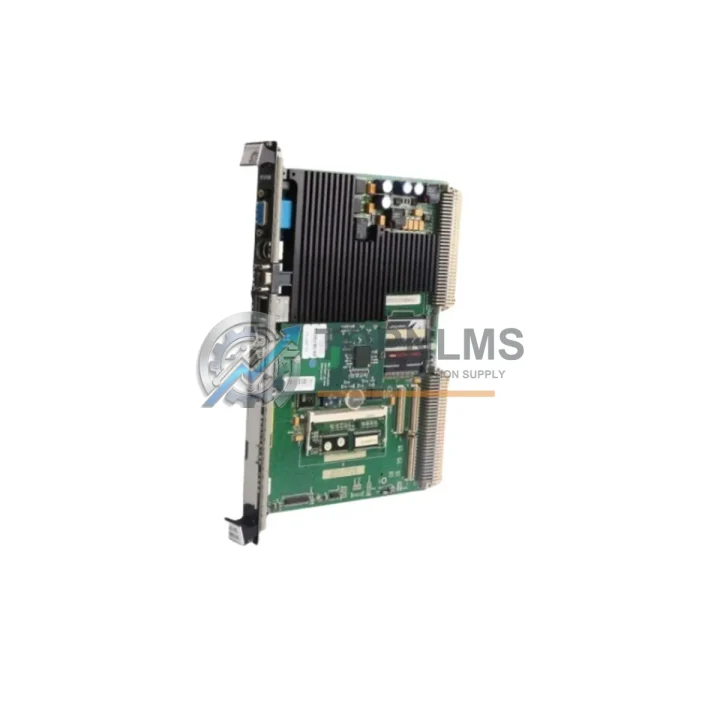

GE IS200SRTDH2ACV Ruggedized Relay Terminal Module for Harsh Environments

Product Overview

GE IS200SRTDH2ACV Ruggedized Relay Terminal Module for Harsh Environments

The GE IS200SRTDH2ACV is a Simplex Relay Terminal Board engineered for the GE Mark VI Turbine Control System — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. Designed to operate reliably under extreme thermal cycling, high-humidity conditions, persistent vibration, and elevated electromagnetic interference (EMI), this module delivers the signal integrity and relay switching performance that mission-critical control loops demand.

In continuous production environments — from combined-cycle power plants and offshore gas compression platforms to steel rolling mills and water treatment facilities — relay terminal boards serve as the hardened interface between the control system’s logic outputs and field-level actuators, solenoids, and safety interlocks. The IS200SRTDH2ACV fulfills this role within the Mark VI architecture, providing robust relay contact outputs that maintain switching accuracy even when subjected to the electrical noise generated by nearby variable frequency drives (VFDs), large motor starters, and high-current bus systems.

Procurement engineers and maintenance teams sourcing replacement boards for GE Mark VI systems will find the IS200SRTDH2ACV fully compatible with the standard Mark VI I/O rack form factor, requiring no firmware modification when used as a like-for-like replacement. This direct interchangeability significantly reduces planned maintenance windows and eliminates the risk of extended unplanned downtime in facilities where turbine availability is directly tied to revenue.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200SRTDH2ACV does not operate in isolation — it is one node in a tightly integrated Mark VI control architecture. In a typical turbine control cabinet, this relay terminal board works in concert with the IS200STCIH1A terminal board for thermocouple inputs, the IS200SVPAH1A servo valve position amplifier, and the IS200SHVOH1A high-voltage output board, all coordinated by the IS215UCVEH2A VME controller card. Together, these modules form a redundant, fault-tolerant control loop capable of managing turbine speed, temperature, and fuel valve positioning with millisecond response times.

On the power supply side, the Mark VI system typically relies on the IS200EPSMG1A power supply module to deliver regulated DC rails to the I/O racks. Stable power conditioning is essential: voltage transients caused by large inductive loads — such as motor starters or transformer switching — can propagate through the control cabinet and induce relay chatter or logic faults if the power supply lacks adequate transient suppression. The IS200SRTDH2ACV’s relay outputs are designed to tolerate these transient conditions, but pairing it with a properly rated power supply module ensures the entire control loop remains stable.

For facilities running mixed-protocol architectures, the Mark VI system communicates over Ethernet Global Data (EGD) and Modbus TCP, interfacing with SCADA platforms, historian servers, and safety instrumented systems (SIS). Communication integrity modules such as the IS215UCVEH2A handle protocol translation, while dedicated I/O modules — including analog input boards like the IS200SAIAH1A and digital output boards like the IS200SDOEH1A — extend the system’s field connectivity. The relay terminal board complements these I/O modules by providing the hardened switching contacts needed for high-current field devices that cannot be driven directly by solid-state outputs.

In safety-critical applications, the IS200SRTDH2ACV is often installed alongside dedicated safety relay modules and emergency shutdown (ESD) logic solvers. Its dry contact outputs are well-suited for interfacing with safety interlocks, flame detectors, vibration trip circuits, and overspeed protection relays — all of which require reliable, bounce-free switching under fault conditions. When combined with a properly configured Mark VI safety logic controller and a Bently Nevada 3500 series vibration monitoring system, the relay terminal board becomes an integral part of a layered machine protection strategy.

Application in Critical Infrastructure

The GE IS200SRTDH2ACV sees its most demanding deployments in facilities where unplanned downtime carries severe operational and financial consequences. In combined-cycle power plants, the Mark VI system governs gas turbine start sequences, load ramp rates, and protective shutdowns. The relay terminal board’s outputs drive fuel valve solenoids, inlet guide vane actuators, and lube oil pump starters — all of which must respond within defined time windows to prevent turbine damage during transient events.

In offshore oil and gas platforms, the IS200SRTDH2ACV operates in environments characterized by salt-laden air, persistent mechanical vibration from compressor trains, and the ever-present risk of hydrocarbon ignition. Control cabinets in these environments are typically rated to IP54 or higher, and the relay terminal board’s conformal-coated PCB construction provides an additional layer of protection against moisture ingress and corrosive atmospheric contaminants.

In metallurgical and steel production facilities, the module contends with intense electromagnetic interference generated by arc furnaces, induction heaters, and large DC drive systems. The shielded relay contact design ensures that switching signals remain clean and unambiguous even in the presence of high-frequency EMI fields that would compromise lesser-grade terminal boards.

Water treatment and municipal utility operators rely on the Mark VI platform — and by extension the IS200SRTDH2ACV — to manage pump station controls, chemical dosing systems, and aeration blower sequencing. In these applications, the module’s long mean time between failures (MTBF) and the availability of tested spare units from TOPNLMS directly supports the operational continuity requirements mandated by environmental regulators.

Mining operations, particularly in hard-rock underground environments, subject control hardware to extreme dust loading, ground vibration, and wide ambient temperature swings. The IS200SRTDH2ACV’s industrial-grade relay contacts and robust PCB construction make it a dependable choice for conveyor control, ventilation fan management, and hoisting system interlocks in these challenging settings.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all functional defects attributable to manufacturing or component failure under normal operating conditions as specified in the GE Mark VI documentation. If a unit fails within the warranty period, TOPNLMS will arrange return shipping, perform diagnostic testing, and provide a replacement or repaired unit at no additional cost. Warranty claims are initiated by contacting [email protected] with the order reference and a description of the observed fault.

Q2: How is each IS200SRTDH2ACV unit tested before shipment?
Every unit undergoes a multi-stage inspection process that includes visual inspection for physical damage, relay contact continuity and isolation testing, power-on functional verification, and where applicable, rack-level integration testing against a reference Mark VI I/O chassis. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for customers with documented quality assurance requirements.

Q3: Is the IS200SRTDH2ACV compatible with both Mark VI and Mark VIe systems?
The IS200SRTDH2ACV is designed for the GE Mark VI platform. Compatibility with Mark VIe systems depends on the specific I/O rack revision and backplane configuration in use at your facility. TOPNLMS technical staff can assist in confirming compatibility based on your system’s serial number and rack configuration data. Contact us before ordering if you are uncertain about cross-platform compatibility.

Q4: Can TOPNLMS support long-term or recurring supply of this module?
Yes. TOPNLMS maintains standing inventory of high-demand Mark VI spare parts, including the IS200SRTDH2ACV, to support both emergency replacement and planned maintenance programs. For facilities operating multiple Mark VI units or managing a multi-year maintenance contract, we offer priority stock reservation and volume pricing arrangements. Contact our procurement team to discuss a long-term supply agreement tailored to your maintenance schedule.
