GE IS200SHRAH2A Replacement for Mark VI Turbine Control

Product Overview

GE IS200SHRAH2A Replacement for Mark VI Turbine Control: Seamless Migration & Upgrade

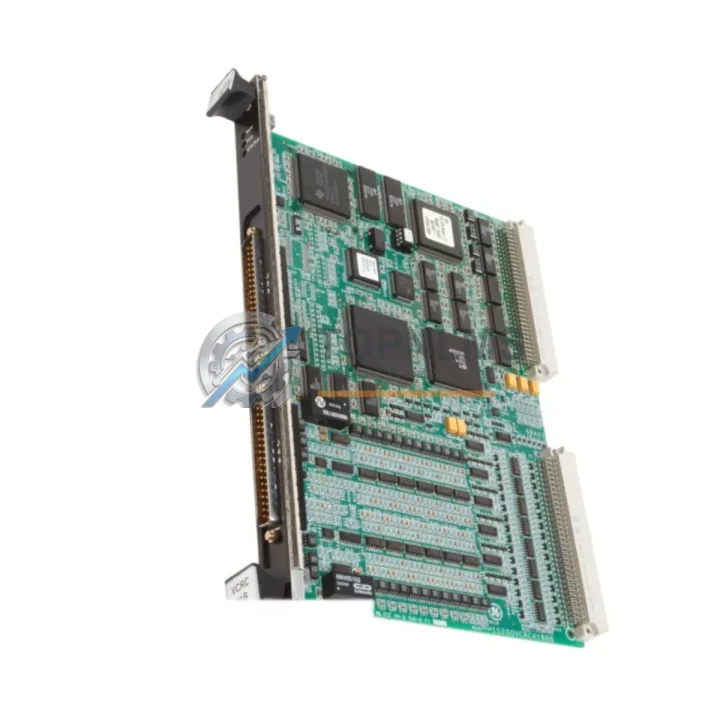

The GE IS200SHRAH2A is a HART-protocol Analog I/O Board designed for the GE Mark VI Speedtronic Turbine Control System. As GE progressively phases out legacy Mark VI hardware, plant engineers and procurement teams face increasing pressure to source reliable, tested replacements that preserve existing wiring infrastructure, cabinet layouts, and control logic — without triggering a full system overhaul.

TOPNLMS supplies the IS200SHRAH2A as a direct replacement module for facilities operating gas turbines, steam turbines, and combined-cycle power plants where the Mark VI platform remains the backbone of the control architecture. Each unit is sourced from verified supply chains, subjected to pre-shipment functional testing, and backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the IS200SHRAH2A rarely happens in isolation. In a typical Mark VI turbine control cabinet, the analog I/O board works in close coordination with several other modules. During a planned outage or emergency replacement, engineers commonly address adjacent components to reduce future downtime risk.

The IS200SHRAH2A interfaces directly with the IS200TTURH1B terminal board, which provides the physical wiring connection between field instruments and the I/O board. If the terminal board shows signs of corrosion or damaged screw terminals, replacing it alongside the SHRAH2A is strongly recommended to ensure signal integrity across all HART loops.

In multi-controller Mark VI architectures, the SHRAH2A operates within a rack that may also house the IS200VCMIH2C VME Communication Module, responsible for coordinating data exchange between the I/O boards and the main controller. Verifying the firmware version of the VCMI module during the SHRAH2A swap prevents communication mismatches that can trigger nuisance alarms.

Power distribution within the Mark VI cabinet is managed by the IS200EPCTG1A power supply board. A degraded power supply is a common root cause of intermittent analog I/O faults — if the SHRAH2A failure was preceded by erratic 4–20 mA readings, inspecting or replacing the EPCTG1A simultaneously is a prudent step.

For facilities also upgrading their turbine protection logic, the IS200TRPGH1B Trip Relay Board is frequently replaced in the same maintenance window. The TRPGH1B governs emergency shutdown relay outputs and shares the same IS200 rack infrastructure, making co-replacement logistically efficient.

Sites migrating from older Mark V to Mark VI architecture often need to re-terminate field wiring. The IS200TSVOH1B servo output terminal board and associated IS200TBCIH1B terminal boards are commonly sourced together with the SHRAH2A to complete the I/O layer of the migration without revisiting the cabinet a second time.

Where HART communication diagnostics are required post-installation, a HART Field Communicator (e.g., Emerson 475) is used to verify loop integrity and instrument configuration — a standard step in commissioning any HART analog I/O replacement in turbine control environments.

Finally, for sites that have upgraded to Mark VIe or are running a hybrid Mark VI / Mark VIe architecture, the IS200ECTBG1A Ethernet Communication Board may be part of the same upgrade scope, enabling modern Modbus TCP or EGD protocol communication alongside the legacy HART I/O layer.

Retrofit Guidance FAQ

Q: Can I replace the IS200SHRAH2A without modifying existing field wiring?
A: Yes. The IS200SHRAH2A uses the same terminal board interface (typically IS200TTURH1B) as its predecessor. Field wiring connected to the terminal board remains untouched. Only the I/O board itself is swapped.

Q: Do I need to re-download the control application after replacement?
A: In most cases, no. The Mark VI controller retains the application in the VCMI and controller memory. However, it is best practice to verify I/O configuration in ToolboxST after the swap and perform a forced I/O check before returning the turbine to service.

Q: Is the IS200SHRAH2A compatible with HART revision 5 and HART revision 7 instruments?
A: The IS200SHRAH2A supports HART communication as implemented in the Mark VI platform. Compatibility with specific HART revisions depends on the field instrument. Most HART 5 and HART 7 devices operate correctly in point-to-point mode with this board.

Q: What is the physical installation procedure?
A: Power down the affected rack section following GE Mark VI maintenance procedures. Discharge ESD. Remove the failed board by releasing the ejector levers. Insert the IS200SHRAH2A, seat firmly, and restore power. Verify LED status indicators before proceeding with ToolboxST diagnostics.

Q: Can this board be used in a Mark VIe system?
A: The IS200SHRAH2A is designed for the Mark VI platform. Mark VIe uses a different I/O architecture (IONET-based). Cross-platform use is not supported without engineering review.

Q: What if my cabinet space is constrained?
A: The IS200SHRAH2A has an identical form factor to all IS200-series boards. No additional cabinet space, DIN rail modification, or mounting hardware is required.

Warranty Assurance

Every IS200SHRAH2A supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment process includes visual inspection, board-level functional testing, and packaging in anti-static ESD bags with foam-lined cartons to prevent transit damage.

If a unit fails within the warranty period due to a manufacturing or component defect, TOPNLMS will arrange a replacement or refund — no lengthy RMA bureaucracy. Our technical team responds to after-sales inquiries within one business day and can provide installation guidance, ToolboxST configuration support, and compatibility verification for your specific Mark VI revision.

Stock is maintained in Xiamen, China, with express international shipping available to minimize plant downtime. Lead times for in-stock units are typically 3–7 business days to most destinations. Expedited shipping is available upon request.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices suitable for customs clearance and internal purchasing records.

Contact us before ordering if you need to confirm compatibility with your specific Mark VI cabinet revision, rack configuration, or terminal board variant — our engineering team will verify fit before shipment.
