GE IS200RCSAG1ABB Ruggedized RC Snubber Module for Harsh Environments

Product Overview

GE IS200RCSAG1ABB Ruggedized RC Snubber Module for Harsh Environments

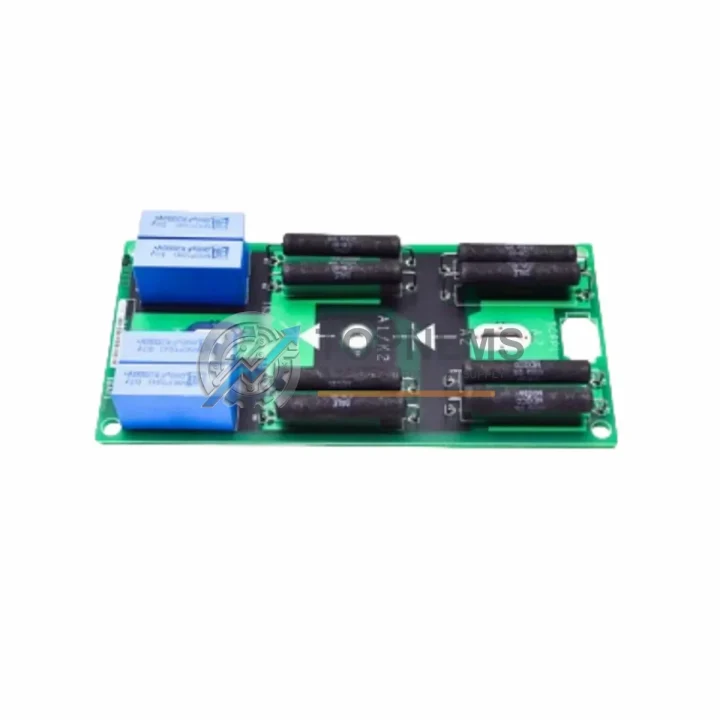

The GE IS200RCSAG1ABB is a precision-engineered RC Snubber Board designed for the GE Mark VI Speedtronic turbine control system — one of the most demanding and safety-critical control platforms deployed in power generation, oil & gas, and heavy industrial facilities worldwide. Built to GE’s stringent industrial-grade specifications, this module delivers reliable transient voltage suppression and electromagnetic interference (EMI) attenuation in environments where electrical noise, thermal stress, and mechanical vibration are constant operational realities.

In turbine control architectures, transient voltage spikes and inductive kickback from relay coils, solenoids, and motor contactors represent a persistent threat to the integrity of sensitive I/O circuits. The IS200RCSAG1ABB addresses this threat directly by providing RC snubber networks that clamp voltage transients at the source, protecting downstream Mark VI processor boards, I/O terminal boards, and communication modules from premature degradation or catastrophic failure. This protection is not a convenience — in continuous-production environments such as combined-cycle power plants, LNG terminals, and petrochemical refineries, an unprotected transient event can cascade into unplanned downtime costing tens of thousands of dollars per hour.

The board integrates seamlessly within the Mark VI Speedtronic control cabinet alongside companion boards such as the IS200TBAIH1B terminal board, IS200VCRCH1B VME carrier board, and IS200DSPXH1B digital signal processor board. Its passive RC network design ensures zero firmware dependency and full backward compatibility with existing Mark VI and Mark VIe system configurations, making it an ideal drop-in replacement for aging or failed snubber assemblies without requiring system reconfiguration or software updates.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200RCSAG1ABB does not operate in isolation — it is one component within a layered protection and control architecture that defines the reliability of the entire Mark VI Speedtronic system. In a typical turbine control cabinet, this snubber board works in concert with the IS200TBAIH1B analog input terminal board, which conditions field signals before they reach the processor. Upstream, the IS200VCRCH1B VME carrier board provides the structural backbone for housing multiple I/O and control boards, while the IS200DSPXH1B digital signal processor board executes the real-time turbine control algorithms that govern speed, temperature, and load management.

On the power distribution side, the Mark VI system relies on dedicated IS200EPCTG1A power conditioning boards and industrial-grade 24 VDC panel power supplies to maintain stable voltage rails across all control modules. Any voltage instability introduced by switching transients — precisely what the IS200RCSAG1ABB suppresses — can propagate through these power rails and corrupt the operation of communication modules such as the IS200BICIH1B board interface card or the IS200STCIH1B servo terminal board used in turbine valve control applications.

For facilities operating mixed control architectures, the IS200RCSAG1ABB’s passive design also makes it compatible with adjacent safety instrumented system (SIS) panels where relay output modules, safety relays, and emergency shutdown (ESD) solenoid drivers generate the highest transient energy levels. Pairing this snubber board with properly rated surge protection devices (SPDs) on incoming field wiring and shielded cable assemblies on I/O terminal boards creates a defense-in-depth approach to electrical noise management that meets the reliability expectations of IEC 61511 functional safety frameworks.

Application in Critical Infrastructure

The GE IS200RCSAG1ABB is deployed across some of the world’s most demanding industrial environments, where control system reliability is directly linked to operational safety and production continuity.

In power generation — including gas turbine, steam turbine, and combined-cycle plants — the Mark VI Speedtronic system governs turbine start-up sequences, speed control, load sharing, and protective shutdown. The IS200RCSAG1ABB protects the relay output circuits that drive fuel control solenoids, inlet guide vane actuators, and lube oil system contactors. A single unprotected transient event in these circuits can trigger a spurious trip or, worse, mask a genuine protective shutdown signal, creating both production loss and safety risk.

In oil and gas upstream and midstream facilities — including offshore platforms, onshore compression stations, and LNG liquefaction trains — the Mark VI system controls gas turbine-driven compressors operating in classified hazardous areas. The IS200RCSAG1ABB’s transient suppression capability is essential in these environments, where long cable runs between the control room and field devices act as antennas for induced electrical noise from high-voltage switchgear and variable frequency drives (VFDs).

In mining and mineral processing operations, where heavy crushing, grinding, and conveying equipment generates continuous electrical noise on shared power infrastructure, the IS200RCSAG1ABB provides the last line of defense for Mark VI I/O circuits monitoring critical process variables such as bearing temperatures, vibration levels, and lube oil pressure — parameters that, if misread due to electrical interference, can lead to catastrophic equipment failure.

In water treatment and municipal utility applications, where Mark VI systems are increasingly deployed for pump station and generation control, the IS200RCSAG1ABB ensures that relay-driven control outputs for valve actuators and motor starters remain electrically clean and operationally reliable across decades of continuous service.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the IS200RCSAG1ABB?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the IS200RCSAG1ABB fails to perform its specified transient suppression function within the warranty period due to a component or assembly defect, TOPNLMS will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated suppression capacity, or physical mishandling.

Q2: How is the IS200RCSAG1ABB tested before shipment?
Every IS200RCSAG1ABB unit undergoes pre-shipment functional verification including visual inspection for PCB integrity, component continuity testing across all RC snubber networks, and insulation resistance checks. Refurbished units are additionally subjected to a burn-in cycle to screen for latent component failures before dispatch. A test report is available upon request for critical spare applications.

Q3: Is the IS200RCSAG1ABB compatible with both Mark VI and Mark VIe systems?
Yes. The IS200RCSAG1ABB is a passive board assembly with no firmware or software dependency, making it fully compatible with both the original GE Mark VI and the upgraded Mark VIe Speedtronic platforms. It is a direct form-fit-function replacement for the OEM part and requires no system reconfiguration upon installation. Always verify the revision suffix (G1ABB) matches your existing board to ensure connector and mounting compatibility.

Q4: Can TOPNLMS support long-term supply of the IS200RCSAG1ABB for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated inventory of Mark VI Speedtronic spare parts, including the IS200RCSAG1ABB, to support planned maintenance shutdowns, emergency replacements, and long-term service agreements. We can provide volume pricing for multi-unit orders and work with your procurement team to establish a consignment or blanket purchase order arrangement for critical spare coverage. Contact our technical sales team to discuss your site’s specific spare parts strategy.
