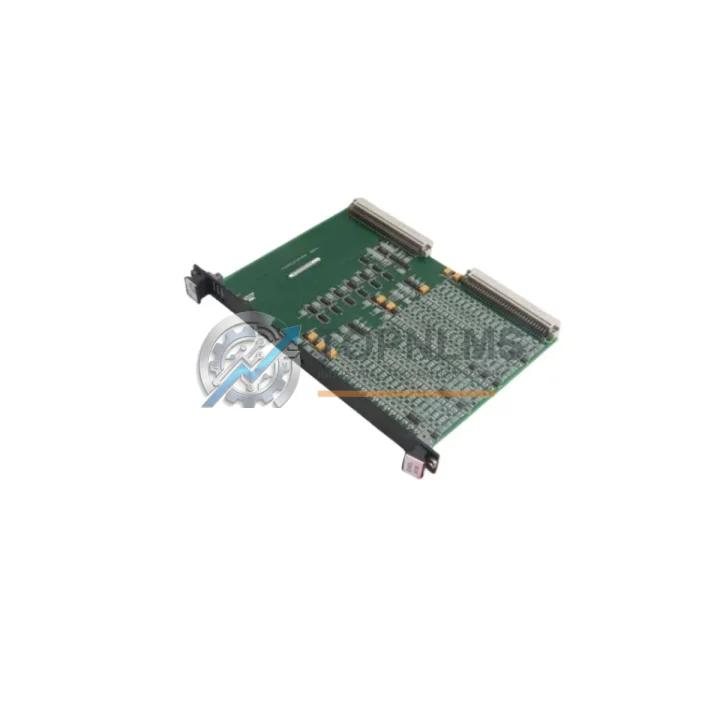

GE IS200JPDMG1ADC Original Industrial Spare Mark VI Compatible

Product Overview

GE IS200JPDMG1ADC Original Industrial Spare Mark VI Compatible: System Stability and Maintenance Value

The GE IS200JPDMG1ADC is an original General Electric Mark VI series JPDM (Junction Protection and Distribution Module) printed circuit board, purpose-built for turbine control and power generation automation systems. In industrial facilities where continuous uptime is non-negotiable, having a verified, tested spare of this board on hand is one of the most cost-effective decisions a maintenance team can make. Whether you are managing a gas turbine, steam turbine, or combined-cycle plant, the IS200JPDMG1ADC sits at the heart of your Mark VI control cabinet — and its failure without a ready replacement can translate directly into unplanned downtime measured in hours or days.

This listing covers a genuine, original-manufacture IS200JPDMG1ADC board, not a counterfeit or reverse-engineered substitute. Each unit is inspected and functionally tested prior to shipment, and is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Worldwide shipping is available with full export documentation support.

Critical Technical Specs

Preventive Maintenance Strategy

When a Mark VI control cabinet requires inspection or the IS200JPDMG1ADC is flagged during a scheduled outage, experienced maintenance engineers know that replacing a single board in isolation rarely tells the full story. The JPDM module interfaces directly with the cabinet’s power distribution network and I/O signal routing, meaning that adjacent components are subject to the same thermal cycling, vibration, and electrical stress over the same service interval.

During any planned replacement of the IS200JPDMG1ADC, it is standard practice to simultaneously inspect the IS200TBCIH1C terminal board and associated IS200TBAIH1C analog input terminal board, as these share the same signal conditioning path. The IS215VCMIH2A VME communication module should also be checked for firmware integrity and connector wear, particularly in systems that have been in continuous service for more than five years. Power supply modules such as the IS200EPSMG1A power supply board are frequent co-failure candidates — a degraded power rail is often the root cause of JPDM board faults, and replacing the PCB without addressing upstream power quality will result in repeat failures.

For facilities running Mark VI systems in parallel redundant configurations, the IS200DSPXH1DBB digital signal processor board and IS200TRLYH1BCC relay output board should be included in the inspection checklist. Relay output boards in particular accumulate contact wear that is invisible to software diagnostics but becomes apparent during physical inspection. Similarly, the IS200BIASH1A bias board and IS200EXHSG3A exciter board are worth verifying during the same maintenance window, as they operate in the same thermal zone as the JPDM module.

Facilities that maintain a minimum viable spare parts inventory for Mark VI systems should also consider stocking the IS200VCRCH1BBA VME crate controller and at least one spare IS200TTURH1CBB turbine trip relay board. These components have long lead times from OEM channels and are disproportionately responsible for extended outages when they fail unexpectedly. A proactive procurement strategy that includes the IS200JPDMG1ADC alongside these related modules significantly reduces the mean time to repair (MTTR) for Mark VI-based turbine control systems.

Connector integrity, cable seating, and backplane slot condition should all be verified during installation of a replacement IS200JPDMG1ADC. Oxidized connectors or loose cable assemblies can cause intermittent faults that are misdiagnosed as board-level failures, leading to unnecessary replacements and wasted maintenance budget.

Strategic Replacement Solutions

The IS200JPDMG1ADC has been in service across GE Mark VI installations worldwide for over two decades. Many of these systems are operating well beyond their original design life, and OEM support for legacy Mark VI hardware has become increasingly limited. For plant operators committed to extending the life of their existing control infrastructure rather than undertaking a full DCS migration, sourcing verified original spare boards like the IS200JPDMG1ADC from specialist industrial suppliers is the most practical and cost-effective path forward.

Unlike remanufactured or cloned alternatives, an original IS200JPDMG1ADC maintains full hardware and firmware compatibility with the existing Mark VI system without requiring reconfiguration, re-parameterization, or software updates. This is critical in regulated industries such as power generation and oil & gas, where any modification to a certified control system configuration must be formally documented and validated. A like-for-like original replacement eliminates this compliance burden entirely.

For facilities managing multiple turbine units or operating a fleet of Mark VI-equipped assets, establishing a centralized spare parts pool that includes the IS200JPDMG1ADC reduces per-unit downtime risk and improves overall maintenance scheduling flexibility. Bulk procurement of two to four units per site is a common strategy among reliability-focused maintenance organizations, particularly where the cost of a single unplanned outage far exceeds the cost of maintaining a small on-site inventory.

Replacement of the IS200JPDMG1ADC is a straightforward field procedure for qualified Mark VI technicians. The board is hot-swappable in redundant configurations, and in simplex systems the replacement procedure typically requires less than 30 minutes of hands-on time, excluding system restart and functional verification. This low replacement complexity makes it an ideal candidate for inclusion in a rapid-response spare parts kit.

Support FAQ

Q: What is the warranty coverage for the IS200JPDMG1ADC?
A: Every IS200JPDMG1ADC shipped from TOPNLMS is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to dispatch. If a unit fails within the warranty period under normal use, we will provide a replacement or full refund.

Q: How do I verify compatibility with my existing Mark VI system before ordering?
A: The IS200JPDMG1ADC is compatible with GE Mark VI and Mark VIe turbine control systems using the standard IS200/IS215 series architecture. To confirm compatibility, provide your existing board revision code (suffix letters, e.g., ADC) and your system’s cabinet configuration. Our technical team can cross-reference your system’s BOM and confirm fit before shipment.

Q: What is the typical lead time and how is the board shipped?
A: In-stock units are dispatched within 1–3 business days. International shipments are handled via DHL, FedEx, or EMS with full export documentation including commercial invoice, packing list, and country-of-origin certificate. Estimated delivery is 5–10 business days for most destinations.

Q: Can I return the board if it does not resolve my system fault?
A: Yes. If the IS200JPDMG1ADC does not resolve the diagnosed fault and is returned in its original condition within 30 days of receipt, we will issue a full refund or exchange. We recommend performing a board swap test in a controlled environment before full system restart to confirm the fault is board-level rather than systemic.
