GE IS200ESELH1A Replacement for Mark VI EX2100

Product Overview

GE IS200ESELH1A Replacement for Mark VI EX2100: Seamless Exciter System Upgrade

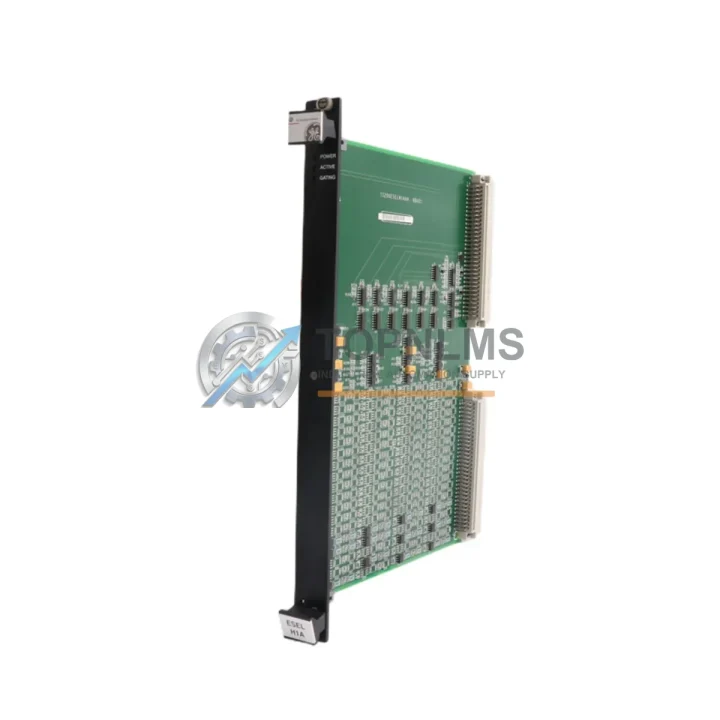

The GE IS200ESELH1A (also catalogued as IS200ESELH1AAA) is a critical Exciter Selector Board used within the GE Mark VI turbine control platform, specifically integrated into EX2100 static excitation systems. As GE progressively phases out legacy Mark VI hardware, many power generation facilities operating gas turbines, steam turbines, and combined-cycle units are now facing the challenge of sourcing reliable replacement boards to sustain uptime without committing to a full system overhaul.

TOPNLMS maintains verified stock of the IS200ESELH1A / IS200ESELH1AAA, fully tested prior to shipment and backed by a 12-month warranty. Whether you are executing an emergency swap-out or planning a scheduled maintenance window, our inventory is ready to ship from Xiamen within 24–48 hours of order confirmation.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the IS200ESELH1A is rarely an isolated action — it typically occurs within a broader Mark VI EX2100 excitation system maintenance or modernization effort. During the retrofit process, engineers frequently address adjacent components to ensure system-wide reliability.

In many EX2100 installations, the exciter selector board works in close coordination with the IS200VCRCH1B voltage regulator card, which governs AVR (Automatic Voltage Regulator) functions. If the IS200ESELH1A shows signs of failure, it is prudent to simultaneously inspect the IS200VCRCH1B for thermal stress or capacitor degradation, as both boards share the same power rail and operate under similar thermal loads.

The IS200EACFH1A exciter AC feedback board is another component commonly replaced in the same maintenance window. This board processes generator terminal voltage and current feedback signals, and its failure mode often mimics exciter selector faults — making concurrent replacement a cost-effective field decision.

For facilities running dual-channel excitation architectures, the IS200EPCTG1A exciter protection card should be verified for firmware compatibility after the IS200ESELH1A swap. The protection card communicates with the selector board via the Mark VI IONet backbone, and a firmware mismatch can trigger nuisance trips during commissioning.

The Mark VI UCSC controller board (IS200UCSCS1A) serves as the primary processing unit coordinating excitation, protection, and I/O sequencing. When performing an IS200ESELH1A replacement, it is standard practice to verify that the UCSC firmware version supports the board revision being installed — this is confirmed via GE Mark VI Toolbox before the replacement card is inserted into the rack.

Power integrity is equally important. The IS200PSCDH1A power supply conditioning board distributes regulated DC voltages across the Mark VI rack. Any instability in the 28 VDC rail can accelerate wear on selector and regulator boards alike, so a power supply health check is recommended as part of the IS200ESELH1A replacement procedure.

For sites that have already migrated portions of their control architecture to the Mark VIe platform, the IS200ESELH1A can coexist with Mark VIe I/O packs via the IONet-to-Ethernet gateway modules, allowing a phased migration strategy without requiring simultaneous replacement of the entire excitation cabinet.

Finally, if the replacement is being performed as part of a broader turbine control upgrade, the IS200TRLYH1B relay output terminal board and IS200TBCIH1C I/O terminal board are frequently inspected and replaced in the same outage window, as their wiring interfaces directly with the excitation and protection circuits managed by the IS200ESELH1A.

Retrofit Guidance FAQ

Q: Does replacing the IS200ESELH1A require rewiring the excitation cabinet?
A: No. The IS200ESELH1A uses the standard Mark VI backplane connector. The replacement board slots directly into the existing card slot without any wiring changes. Retain the existing wiring harness and terminal connections.

Q: Do I need to reprogram the replacement board?
A: The IS200ESELH1A does not store application logic independently. Configuration is downloaded from the GE Mark VI Toolbox to the UCSC controller, which then distributes parameters to the exciter selector board. After physical installation, a standard Toolbox download and I/O force test is sufficient for commissioning.

Q: Is the IS200ESELH1AAA variant interchangeable with IS200ESELH1A?
A: Yes. The AAA suffix denotes a minor revision (typically conformal coating or component sourcing update) with no functional or pinout differences. Both variants are direct replacements for each other within the Mark VI EX2100 platform.

Q: Will the replacement board fit in the existing Mark VI rack without cabinet modification?
A: Yes. The IS200ESELH1A conforms to the standard Mark VI PCB card dimensions and uses the same rack slot. No cabinet modification, additional mounting hardware, or DIN rail adaptation is required.

Q: What communication protocol does the IS200ESELH1A use?
A: The board communicates via GE proprietary IONet protocol, which is the standard I/O communication backbone for the Mark VI platform. No protocol conversion or additional gateway hardware is needed for a like-for-like replacement.

Q: How do I verify the replacement board is functioning correctly after installation?
A: After installation and Toolbox download, perform a forced I/O test on the exciter selector outputs, verify AVR mode switching between channels, and confirm no diagnostic alarms are present in the Mark VI HMI. TOPNLMS recommends a 30-minute warm-up observation period before returning the unit to automatic control.

Warranty Assurance

Every IS200ESELH1A / IS200ESELH1AAA shipped by TOPNLMS is subject to a rigorous pre-shipment inspection protocol. Each board undergoes visual inspection for physical damage, component-level verification, and functional bench testing against Mark VI platform specifications before packaging.

12-Month Warranty Coverage: All units are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, component failure under normal operating conditions, and board-level functional faults. Warranty claims are processed within 5 business days of receipt of the returned unit.

Replacement Support: In the event of a warranty claim, TOPNLMS will ship a verified replacement unit upon confirmation of the fault. For critical applications where downtime cost is high, advance replacement arrangements can be discussed at the time of order.

After-Sales Response: Our technical support team is available via email and phone to assist with installation questions, Toolbox configuration guidance, and commissioning support. Response time is within 24 hours on business days.

Procurement Assurance: All units are sourced through verified supply channels. Certificates of conformance and test reports are available upon request. Export documentation, including commercial invoices and packing lists compliant with international shipping requirements, is provided with every order.

For urgent requirements or volume procurement inquiries, contact our team directly to confirm lead time and availability.
