GE IS200ERSDG1A Replacement Solution for EX2100

Product Overview

GE IS200ERSDG1A Replacement Solution for EX2100 Mark VI: Seamless Transition for Legacy Exciter Control Systems

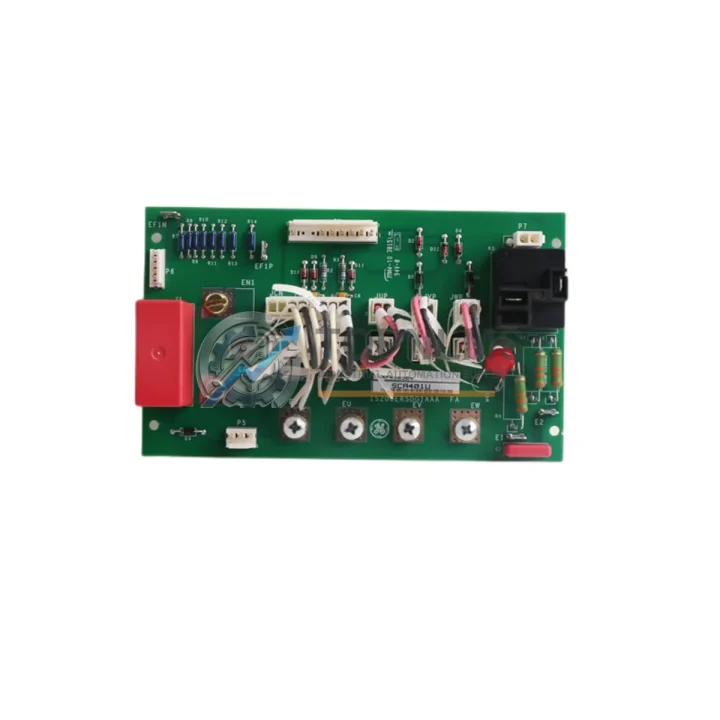

When a critical exciter control board fails in a gas turbine or steam turbine plant, every hour of unplanned downtime translates directly into lost revenue and operational risk. The GE IS200ERSDG1A Exciter Regulator Signal Distribution Board is a precision-engineered component within the GE EX2100 excitation system, operating as part of the broader Mark VI turbine control platform. TOPNLMS maintains verified stock of this board to support urgent replacement, planned maintenance, and system migration projects across power generation, oil & gas, and heavy industrial facilities worldwide.

This board serves as the signal distribution backbone of the EX2100 exciter regulator, routing analog and digital signals between the exciter controller, field flashing circuits, AVR (Automatic Voltage Regulator) feedback loops, and protective relay interfaces. Its failure — or the failure of an adjacent component — can trigger generator trips, AVR faults, or excitation loss alarms that require immediate corrective action. Having a pre-tested, ready-to-ship IS200ERSDG1A on hand is the most effective way to minimize mean time to repair (MTTR) in these scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or within the EX2100 platform rarely involves a single board replacement in isolation. In practice, the IS200ERSDG1A works in close coordination with several other Mark VI and EX2100 components, and understanding these interdependencies is essential for a smooth retrofit.

The IS200EACFG1A Exciter AC Feedback Board is frequently replaced alongside the IS200ERSDG1A, as both boards share the same card cage and exchange analog feedback signals related to generator terminal voltage and stator current. If one board has experienced a surge event or thermal stress, the adjacent board should be inspected and tested as a precaution.

The IS200EPSMG1ADC Power Supply Module provides regulated DC power to the EX2100 card cage. A degraded power supply is a common root cause of intermittent board faults — including signal distribution errors that may initially appear to originate from the IS200ERSDG1A itself. Verifying power supply integrity before or during board replacement is standard practice.

For facilities upgrading from a Mark V excitation system, the transition typically also involves replacing the IS200EXHSG1A Exciter HMI Interface Board and reconfiguring the UCVEH Mark VI VCMI Controller to accommodate the new signal architecture. The IS200ERSDG1A is designed to integrate directly into this updated controller framework without requiring custom signal conditioning.

Communication between the EX2100 exciter and the main turbine control system is handled via the IS200ESELH1A Ethernet Switch Board or legacy ARCNET interfaces, depending on the site’s network topology. During migration, ensuring that the replacement IS200ERSDG1A is configured to match the existing IONet or ARCNET communication settings is a critical commissioning step that TOPNLMS technical support can assist with remotely.

In installations where the exciter control cabinet also houses IS200TRLYH1B Relay Output Boards for protective tripping functions, the signal distribution paths managed by the IS200ERSDG1A must be verified against the relay logic to confirm that trip setpoints and signal polarities remain consistent after board replacement. This is particularly important in nuclear auxiliary, combined-cycle, and large hydro applications where protective relay coordination is subject to regulatory review.

Finally, for sites performing a full EX2100 panel refurbishment, the IS200EPDMG1A Exciter Protection and Diagnostics Module and the IS200EDCFG1A DC Feedback Board are commonly replaced as a matched set with the IS200ERSDG1A to restore the full diagnostic and protection capability of the excitation system to as-new condition.

Retrofit Guidance FAQ

Q1: Can the IS200ERSDG1A be installed as a direct drop-in replacement without rewiring?
Yes — within the EX2100 platform, the IS200ERSDG1A is a slot-compatible replacement. The board connects via the standard EX2100 VME-style backplane, so no field wiring changes are required for a like-for-like swap. However, if you are migrating from a Mark V EX2000 system, wiring adaptation at the terminal block level will be necessary, and TOPNLMS can provide a wiring compatibility checklist upon request.

Q2: Is firmware reconfiguration required after replacing the IS200ERSDG1A?
In most cases, the replacement board will adopt the existing EX2100 firmware configuration stored in the UCVEH controller without requiring manual re-entry of parameters. However, if the replacement board has a different hardware revision suffix (e.g., G1A vs. G1B), a firmware compatibility check against the site’s ToolboxST configuration is recommended before energizing the exciter.

Q3: How does the IS200ERSDG1A handle communication protocol compatibility during a Mark V to Mark VI migration?
The Mark V platform used ARCNET as its primary inter-board communication protocol, while the Mark VI / EX2100 platform uses GE’s proprietary IONet protocol over Ethernet. The IS200ERSDG1A is native to the IONet architecture. During migration, the site’s communication network must be updated to IONet, and any legacy ARCNET devices must be replaced or bridged. TOPNLMS can advise on compatible IONet switch boards and communication modules available from stock.

Q4: What physical space and mounting requirements apply when retrofitting the IS200ERSDG1A into an existing control cabinet?
The IS200ERSDG1A occupies a single slot in the standard EX2100 card cage (R, S, or T controller chassis). The card cage dimensions are fixed by the EX2100 panel design, so no additional cabinet space is required for a like-for-like replacement. For cross-series migrations from Mark V, the EX2100 card cage assembly must be installed in place of the legacy Mark V panel, which typically requires a cabinet depth of at least 600 mm and a dedicated 24 VDC or 125 VDC power feed depending on the site specification.

Warranty Assurance

Every IS200ERSDG1A shipped by TOPNLMS is covered by a 12-month warranty against functional failure under normal operating conditions. This warranty period begins from the date of delivery and covers defects in materials, workmanship, and electronic component performance. If a board fails within the warranty period, TOPNLMS will provide a replacement unit or full refund — no lengthy RMA bureaucracy.

Prior to shipment, each IS200ERSDG1A undergoes a multi-point inspection process that includes visual inspection for physical damage, connector integrity verification, and where test equipment permits, functional power-on testing. Boards that do not pass inspection are quarantined and not offered for sale. A test report or inspection certificate can be provided upon request for quality-critical procurement processes.

TOPNLMS maintains ongoing stock of IS200ERSDG1A and related EX2100 / Mark VI components to support both emergency replacement and planned maintenance schedules. Orders placed before 14:00 CST on business days are typically dispatched the same day via DHL Express, FedEx International Priority, or TNT, with tracking provided immediately upon shipment. Delivery to most destinations in Europe, the Middle East, Southeast Asia, and the Americas is achievable within 3–7 business days.

For procurement teams requiring long-term supply assurance, TOPNLMS offers blanket order arrangements and reserved stock agreements for high-demand Mark VI and EX2100 components. Contact our technical sales team to discuss your site’s specific requirements and annual maintenance schedule.
