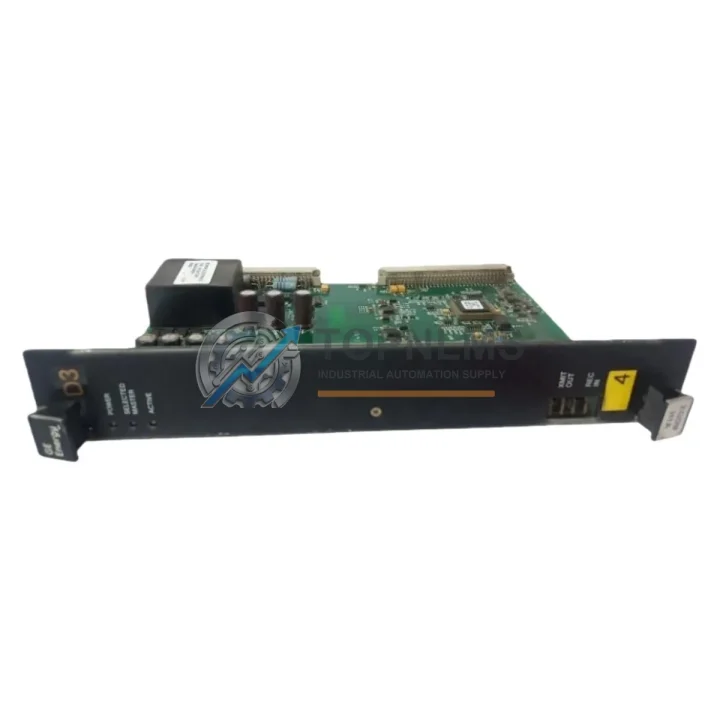

GE IS200EGDMH1AFG Ruggedized Exciter Ground Detector Module

Product Overview

GE IS200EGDMH1AFG Ruggedized Exciter Ground Detector Module: Industrial Resilience for Harsh Environments

The GE IS200EGDMH1AFG is a precision-engineered Exciter Ground Detector Module designed for deployment within the GE EX2100 excitation control system and Mark VI turbine control platform. Built to operate continuously in the most demanding industrial environments — including high-temperature generator halls, high-humidity coastal power stations, dust-laden mining facilities, and vibration-intensive heavy manufacturing lines — this module delivers the fault-detection reliability that critical infrastructure demands.

Ground faults in excitation circuits represent one of the most serious risks in rotating machinery protection. The IS200EGDMH1AFG continuously monitors the exciter field winding for insulation degradation and ground fault conditions, providing early warning signals that allow operators to schedule maintenance before a single ground fault escalates into a catastrophic double-ground event. In power generation, petrochemical, and metallurgical applications where unplanned downtime can cost tens of thousands of dollars per hour, this module is not optional — it is foundational.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200EGDMH1AFG does not operate in isolation — it is one critical node within a layered protection architecture. In a typical Mark VI-based turbine control cabinet, this module works in concert with the IS200EACFG1A AC Feedback Module, which monitors generator terminal voltage and current feedback signals, and the IS200EPCTG1A Exciter Protection and Control Terminal Board, which aggregates protection logic across the excitation system. Together, these boards form the backbone of generator electrical protection.

On the I/O layer, the IS200VTURH1BEE Turbine Protection Module and IS200TRLYH1BDD Relay Output Terminal Board handle trip relay outputs when the IS200EGDMH1AFG detects a ground fault condition, ensuring that the generator protection chain from detection to trip action is fully closed. For sites running redundant Mark VI configurations, the IS200DSPXH1DBB Digital Signal Processor Board provides the computational backbone that processes ground fault data in real time.

Power integrity is equally critical. The IS200EPSMH1A Power Supply Module provides stable 28 VDC backplane power to the IS200EGDMH1AFG and adjacent modules, while the IS200STCIH2BED Terminal Board provides the field wiring interface for exciter current transformers and voltage sensing circuits. In high-EMI environments such as arc furnace facilities or large motor drive rooms, the shielded wiring practices supported by these terminal boards are essential for maintaining signal integrity to the ground detector circuit.

For communication-intensive installations integrating with plant DCS or SCADA systems, the IS200VSVOH1B Servo and Valve Output Board and IS200BICLH1A Bus Interface and Communication Logic Board extend the Mark VI platform’s connectivity, allowing ground fault status to be reported upstream to Modbus, Profibus, or OPC-UA supervisory systems without additional protocol converters.

Application in Critical Infrastructure

In thermal and combined-cycle power plants, the IS200EGDMH1AFG is deployed on gas turbine generators and steam turbine alternators where the EX2100 excitation system is the standard of record. A single undetected ground fault in the rotor field winding can progress within hours to a double-ground fault, causing severe rotor damage, forced outage, and repair costs that routinely exceed USD 1 million. Continuous ground monitoring with this module is the primary line of defense.

In oil and gas upstream and midstream facilities — including offshore platforms, LNG compression trains, and pipeline booster stations — generator reliability is non-negotiable. The IS200EGDMH1AFG’s tolerance for high ambient temperatures, salt-laden air, and persistent vibration from rotating machinery makes it the preferred choice for excitation protection in these environments. Its compatibility with the Mark VIe distributed control architecture allows seamless integration into modern safety instrumented systems (SIS) and emergency shutdown (ESD) logic.

In mining and mineral processing operations, where large synchronous motors drive SAG mills, ball mills, and hoisting equipment, the EX2100 excitation system — and by extension the IS200EGDMH1AFG — provides the field ground protection that keeps these high-inertia drives running safely. Dust ingress, mechanical shock, and wide temperature swings are daily realities in these environments, and the module’s ruggedized design ensures consistent performance without nuisance trips.

In metallurgical and steel production facilities, where arc furnaces and rolling mill drives generate extreme electromagnetic interference, the IS200EGDMH1AFG’s EMI-hardened design maintains measurement accuracy even in the presence of high-frequency switching transients. Water treatment and municipal power utilities similarly rely on this module for continuous, unattended ground fault monitoring across their generator fleets.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the IS200EGDMH1AFG?
All IS200EGDMH1AFG modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. Warranty claims are processed with priority turnaround, and advance replacement units are available for critical-site customers to minimize downtime.

Q2: How is each module tested before shipment?
Every IS200EGDMH1AFG undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, board-level continuity testing, functional power-on verification, and where applicable, dynamic signal testing using GE-compatible test fixtures. Refurbished units additionally undergo full cleaning, component inspection, and burn-in testing. A test report is available upon request for quality-assurance documentation.

Q3: Is the IS200EGDMH1AFG compatible with both EX2100 and Mark VIe systems?
Yes. The IS200EGDMH1AFG is designed for the GE EX2100 excitation platform and is fully compatible with Mark VI and Mark VIe turbine control architectures that incorporate EX2100 excitation. For Mark VIe installations, confirm the specific backplane revision and firmware version with your GE service representative or contact TOPNLMS for compatibility verification before ordering.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains a dedicated inventory of GE Mark VI and EX2100 series modules, including the IS200EGDMH1AFG, to support both planned maintenance schedules and emergency breakdown situations. We offer expedited shipping to minimize plant downtime, and our technical team can assist with cross-referencing obsolete part numbers, identifying compatible substitutes, and advising on system-level compatibility for aging Mark VI installations.
