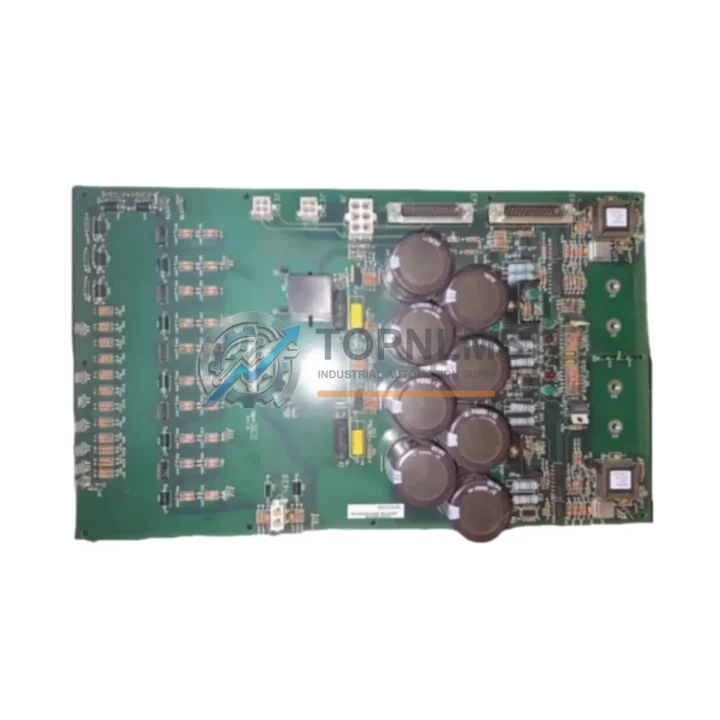

GE IS200EDEXG1AFA Replacement for Mark VI EX2100

Product Overview

GE IS200EDEXG1AFA Replacement for Mark VI EX2100: Seamless Transition & Legacy System Compatibility

The GE IS200EDEXG1AFA is a de-excitation control board designed for the Mark VI turbine control platform and the EX2100 static excitation system. For power generation facilities, petrochemical plants, and heavy industrial sites still operating legacy GE Mark V, Mark VI, or early EX2100 configurations, this board represents the most direct and lowest-risk upgrade path available. Whether your existing IS200EDEXG1AFA has failed, is approaching end-of-life, or has been flagged as a discontinued component in your spare parts audit, a verified replacement unit from TOPNLMS allows your engineering team to restore full excitation control without redesigning the surrounding architecture.

The IS200EDEXG1AFA interfaces directly with the Mark VI VCMI (VME Communication and Mark Interface) backplane and operates within the standard Mark VI I/O rack. Facilities migrating from older Mark V excitation boards — such as those using IS200 series predecessors — will find that the physical form factor, connector pinout, and rack slot dimensions are preserved, eliminating the need for custom bracket fabrication or cable harness rework. The board communicates over the Mark VI IONet protocol, which remains fully compatible with existing UCVEH, UCVEG, and UCVEM controller cards already installed in your control cabinet.

During a typical retrofit, the IS200EDEXG1AFA is installed alongside the IS200EACFG1A AC feedback board and the IS200EPSMG1A power supply module, both of which remain in service without modification. The EX2100 excitation controller’s field flashing circuit, AVR (Automatic Voltage Regulator) loop, and de-excitation discharge resistor network connect to the IS200EDEXG1AFA through the standard terminal block assignments documented in GE’s Mark VI System Guide (GEH-6421). No re-termination of field wiring is required when replacing a like-for-like unit, which is the primary reason plant engineers prefer this board over third-party alternatives that require signal conditioning or intermediate relay panels.

For sites upgrading from a Mark V SDCC (Simplex, Dual, or Triple Redundant) architecture to a Mark VI simplex or TMR (Triple Modular Redundant) configuration, the IS200EDEXG1AFA plays a central role in the excitation subsystem migration. The board’s de-excitation logic integrates with the Mark VI’s TCEA (Turbine Control Excitation Application) software block, and existing ToolboxST configuration files can be adapted with minimal changes to the excitation control function blocks. This significantly reduces commissioning time compared to a full excitation system replacement using a new EX2100e or EX2100e+ platform.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IS200EDEXG1AFA migration rarely involves a single board in isolation. In practice, plant engineers replacing the de-excitation control board as part of a broader Mark VI or EX2100 system refresh will also evaluate the condition of adjacent components. The IS200EACFG1A AC feedback board, which processes generator terminal voltage and current signals feeding into the AVR loop, is frequently replaced in the same maintenance window to eliminate latent signal drift. Similarly, the IS200EPSMG1A power supply module should be inspected and replaced if it has exceeded its recommended service interval, as power quality directly affects de-excitation discharge timing.

On the controller side, facilities running a Mark VI TMR configuration will want to verify the firmware revision of their UCVEH or UCVEG controller cards to ensure compatibility with the IS200EDEXG1AFA’s IONet communication stack. In some EX2100 installations, the IS200ESELH1A selector board and IS200ERLYH1A relay output board are also part of the excitation protection chain and should be tested before returning the unit to service. For sites where the HMI (Human-Machine Interface) is still running on a legacy Cimplicity or WorkstationST platform, the ToolboxST application engineer will need to verify that the TCEA excitation control application version supports the IS200EDEXG1AFA’s diagnostic feedback registers.

In control cabinet installations where space is constrained, the IS200EDEXG1AFA’s standard VME 6U form factor ensures it occupies the same slot footprint as the unit it replaces, with no need to modify DIN rail mounting, cable duct routing, or adjacent module spacing. For facilities also upgrading their field I/O infrastructure, the IS215VCMIH2B VME communication module and IS200IOCIH1A I/O controller interface board are commonly procured alongside the IS200EDEXG1AFA to complete a full excitation I/O subsystem refresh in a single planned outage.

Retrofit Guidance FAQ

Q: Can the IS200EDEXG1AFA be installed without re-terminating field wiring?
A: Yes. When replacing a like-for-like IS200EDEXG1AFA unit, all field wiring connections at the terminal block remain unchanged. The connector pinout and signal assignments are identical to the original board, so no re-termination, re-labeling, or cable harness modification is required.

Q: Is the IS200EDEXG1AFA compatible with both Mark VI simplex and TMR configurations?
A: Yes. The board supports both simplex and Triple Modular Redundant (TMR) Mark VI architectures. In TMR systems, three IS200EDEXG1AFA boards operate in voting logic, and each can be replaced individually without taking the full excitation system offline, provided the remaining two boards are healthy.

Q: What communication protocol does the IS200EDEXG1AFA use?
A: The board communicates over GE’s proprietary IONet protocol, which is an Ethernet-based deterministic network used exclusively within the Mark VI platform. It is not compatible with Modbus, PROFIBUS, or DeviceNet without an external gateway module.

Q: How long does commissioning take after installing a replacement IS200EDEXG1AFA?
A: For a direct like-for-like replacement with no ToolboxST configuration changes, commissioning typically requires 2–4 hours, including board initialization, IONet address assignment, AVR loop verification, and de-excitation discharge test. Sites migrating from Mark V will require additional time for TCEA function block adaptation.

Q: Does the replacement board require any firmware updates before installation?
A: TOPNLMS ships the IS200EDEXG1AFA with firmware pre-verified against the standard Mark VI EX2100 compatibility matrix. If your site requires a specific firmware revision, please specify this at the time of order so our technical team can confirm compatibility before shipment.

Q: What physical space is required in the Mark VI I/O rack?
A: The IS200EDEXG1AFA occupies a single VME 6U slot in the standard Mark VI I/O rack. No additional clearance, spacer cards, or bracket modifications are required for a direct replacement installation.

Warranty Assurance

Every IS200EDEXG1AFA unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each board undergoes a multi-stage outgoing inspection process that includes visual inspection for physical damage, functional power-on testing, IONet communication verification, and de-excitation logic output validation. Units that do not pass all inspection stages are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is available to assist with technical troubleshooting, installation guidance, and warranty processing. For urgent plant situations where downtime cost is critical, expedited replacement shipment can be arranged upon request.

TOPNLMS maintains stock of IS200EDEXG1AFA and related Mark VI EX2100 components in our Xiamen warehouse, enabling fast dispatch to global destinations including Southeast Asia, the Middle East, Europe, and the Americas. Standard shipping lead time is 3–7 business days via DHL, FedEx, or UPS, with express options available for next-day or 2-day delivery to major industrial hubs.

All units are shipped in anti-static packaging with individual serial number documentation, enabling full traceability for your plant’s spare parts management system. A certificate of conformance and test report are available upon request for quality-controlled procurement processes.
