GE IS200DSPXH1D Replacement/Upgrade Solution for Mark VI

Product Overview

GE IS200DSPXH1D Replacement/Upgrade Solution for Mark VI: Seamless Transition from Legacy DSP Boards

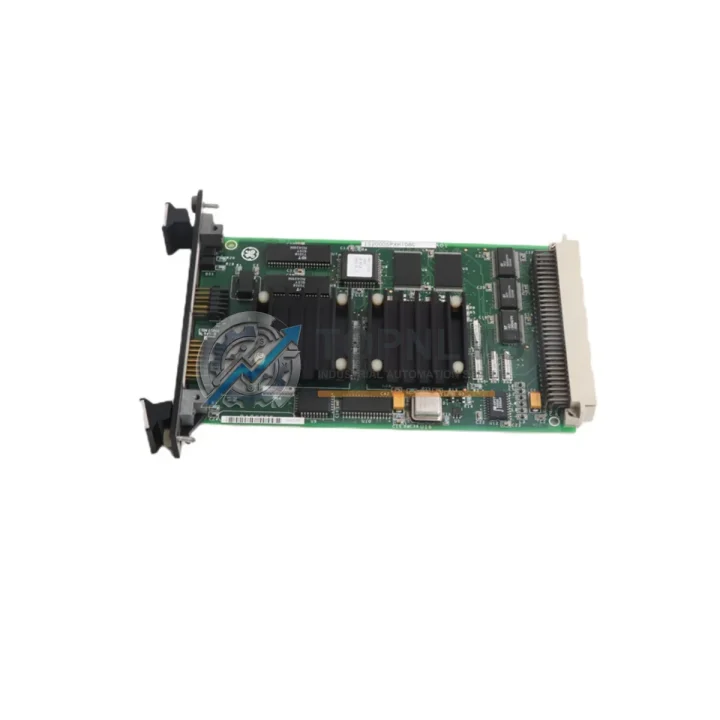

The GE IS200DSPXH1D (also identified as IS200DSPXH1DBC) is a Digital Signal Processor (DSP) board designed for the GE Mark VI Turbine Control System — one of the most widely deployed gas turbine and steam turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As GE progressively phases out legacy Mark VI hardware, plant engineers and procurement teams face increasing pressure to source reliable, tested replacement boards before critical spares become unavailable.

At TOPNLMS, we specialize in sourcing, testing, and supplying hard-to-find GE Mark VI control modules — including the IS200DSPXH1D — to support your system’s continued operation or facilitate a structured migration to newer control architectures. Whether you are replacing a failed board on an emergency basis or building a strategic spare inventory, our stock is inspected, verified, and ready to ship.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing or upgrading the IS200DSPXH1D rarely occurs in isolation. A complete Mark VI system retrofit or emergency repair typically involves coordinating several interdependent components across the control cabinet. During the migration process, engineers commonly address the following associated hardware:

The IS200TBAIH1C terminal board serves as the primary analog I/O interface within the Mark VI rack, and its wiring harness must be verified for compatibility when swapping the DSP board. Similarly, the IS200TBCIH1C handles contact input termination and is frequently inspected alongside DSP board replacements to rule out cascading signal faults.

For systems experiencing communication degradation, the IS200VCRCH1BBB VME communication board is often evaluated in parallel — IONET communication integrity depends on both the DSP board and the communication layer functioning correctly. In triple-redundant Mark VI configurations (TMSR), the IS200TRPGH1B protection board must also be assessed to ensure voting logic remains intact after any DSP board swap.

Power integrity is critical during any board replacement. The IS200EPCTG1A power converter board regulates backplane voltages and should be tested before and after DSP board installation to confirm stable +5 VDC and ±15 VDC rails. If the control cabinet also houses an IS200DSPXH1DBC variant (the B-revision of this same DSP board), it is advisable to standardize both slots to the same revision level to avoid firmware compatibility issues.

For facilities undertaking a broader migration from Mark V to Mark VI, the IS200VCMIH1B VME communication module and the IS200SRLYH1B relay output board are commonly part of the upgrade bill of materials. The relay board handles discrete output signals to actuators and trip circuits, and its wiring interface must be re-mapped when transitioning between control generations.

Finally, for commissioning and firmware verification after DSP board installation, a GE Mark VI programming cable (Toolbox interface) and a laptop running GE ToolboxST software are required to validate control block execution, I/O calibration, and alarm setpoints before returning the turbine to service.

Retrofit Guidance FAQ

Q: Is the IS200DSPXH1D a direct drop-in replacement within an existing Mark VI system?
A: Yes. Within a Mark VI control cabinet, the IS200DSPXH1D slots directly into the VME rack without physical modification. The backplane connector, power rails, and IONET communication interface are standardized across the IS200 series. No wiring changes to terminal boards are required for a like-for-like board swap.

Q: Can this board be used to replace a Mark V DSP module?
A: No — the IS200DSPXH1D is Mark VI-specific. Migrating from Mark V to Mark VI requires a full system engineering assessment, including new I/O terminal boards, updated wiring schedules, and ToolboxST configuration. The DSP board alone is not a cross-generation drop-in replacement.

Q: What communication protocols does the IS200DSPXH1D support?
A: The board operates on GE’s proprietary IONET protocol for internal Mark VI rack communication. External connectivity (Modbus, Profibus, or Ethernet/IP) is handled by dedicated communication modules within the Mark VI architecture, not by the DSP board itself.

Q: How much physical space does the replacement require?
A: The IS200DSPXH1D occupies a single VME slot in the standard Mark VI control rack. No additional cabinet space or mounting hardware is required for a direct replacement. For new installations or cabinet retrofits, standard Mark VI rack dimensions apply.

Q: What is required to commission the board after installation?
A: After physical installation, the board must be configured using GE ToolboxST software via the Mark VI programming cable. Configuration steps include loading the application program, verifying I/O assignments, calibrating analog inputs, and confirming alarm and trip setpoints before returning the unit to service.

Q: Are there firmware or revision compatibility concerns between IS200DSPXH1D and IS200DSPXH1DBC?
A: The IS200DSPXH1DBC is a B-revision of the IS200DSPXH1D. In most applications, both revisions are functionally interchangeable, but it is recommended to match the revision level of the board being replaced to avoid potential firmware version conflicts. Contact our technical team if you need revision-specific sourcing.

Warranty Assurance

Every IS200DSPXH1D and IS200DSPXH1DBC unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a multi-point inspection process that includes visual examination for physical damage, connector integrity verification, and functional bench testing where applicable.

If a unit develops a fault within the warranty period, TOPNLMS provides replacement support with priority processing to minimize your plant’s downtime exposure. Our after-sales response team is reachable via email and phone to coordinate warranty claims, provide technical documentation, and arrange expedited replacement shipments.

For procurement teams managing critical spare inventories, we offer batch sourcing, pre-shipment inspection reports, and documentation packages (including test records and traceability information) upon request. Stock availability is confirmed at time of order, and lead times for in-stock units are typically 3–7 business days for international destinations.

We understand that unplanned turbine downtime carries significant operational and financial consequences. Our sourcing and logistics processes are structured to support emergency procurement requirements, with expedited shipping options available to most global destinations.
