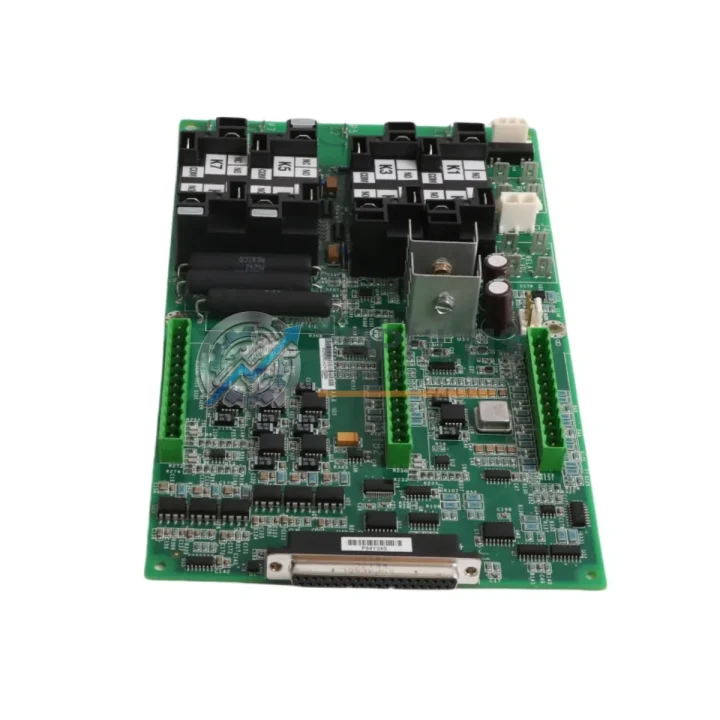

GE IS200AEADH4A Ruggedized Input Terminal Board Mark VI

Product Overview

GE IS200AEADH4A Ruggedized Input Terminal Board Mark VI: Industrial Resilience for Harsh Environments

The GE IS200AEADH4A is a high-integrity input terminal board engineered for the GE Mark VI Turbine Control System — one of GE’s most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial facilities. Designed to operate continuously in environments characterized by extreme temperature swings, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the signal conditioning and I/O termination reliability that mission-critical turbine control demands.

In continuous-production facilities where unplanned downtime translates directly into lost revenue and safety risk, the IS200AEADH4A serves as the hardened front-end interface between field instrumentation and the Mark VI controller core. Its robust terminal architecture accepts thermocouple, RTD, and discrete signal inputs from sensors mounted directly on gas turbines, steam turbines, and combined-cycle units — environments where ambient temperatures routinely exceed 55 °C and vibration levels challenge conventional electronics.

The board integrates seamlessly within the Mark VI I/O rack alongside companion modules such as the IS200AEPAH1A analog I/O processor, the IS200TRLYH1A relay output terminal board, and the IS200TTURH1B turbine trip relay board. Together, these modules form a tightly coupled I/O subsystem that feeds real-time process data to the UCSC or UCCE controller cards, enabling closed-loop turbine speed, temperature, and load control with sub-millisecond scan cycles. The IS200AEADH4A’s field-side terminal blocks are rated for the full industrial temperature range and maintain contact integrity even under sustained vibration — a critical requirement in rotating-machinery applications.

Beyond the immediate Mark VI ecosystem, the IS200AEADH4A is frequently deployed alongside the IS200EACFG1A excitation analog I/O board and IS200EPCTG1A power converter terminal board in generator excitation control panels. In these configurations, the module handles precision analog inputs that govern AVR (Automatic Voltage Regulator) response, where signal accuracy directly affects grid stability. The board’s differential input architecture provides inherent common-mode noise rejection — essential in switchgear rooms and generator halls where high-voltage switching events generate significant electromagnetic transients.

For facilities operating in classified hazardous areas — including offshore platforms, petrochemical complexes, and LNG terminals — the IS200AEADH4A’s galvanically isolated input channels provide an additional layer of protection, preventing fault currents from propagating from field wiring into the control system backplane. This isolation characteristic, combined with the module’s conformal-coated PCB, makes it suitable for deployment in Zone 2 / Division 2 environments when installed within appropriately rated enclosures.

Procurement teams evaluating the IS200AEADH4A as a spare or replacement part will find that TOPNLMS maintains verified stock sourced through controlled supply channels. Every unit undergoes functional verification prior to shipment, including terminal continuity checks, isolation resistance testing, and visual inspection against GE’s published workmanship standards. This pre-shipment testing protocol is particularly valuable for facilities that cannot afford the risk of installing an untested board during a planned outage window. All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200AEADH4A does not operate in isolation — it is one node in a layered protection and control architecture. In a typical Mark VI TMR (Triple Modular Redundant) configuration, three IS200AEADH4A boards operate in parallel, each feeding independent controller cards. This redundancy ensures that a single board failure does not interrupt turbine control, a design philosophy that underpins the Mark VI’s suitability for baseload power plants where continuous availability is contractually mandated.

On the output side, the IS200TRLYH1A relay output terminal board handles the discrete trip and alarm outputs that the IS200AEADH4A’s input data ultimately drives. The IS200AEPAH1A analog I/O processor board sits between the terminal board and the controller, performing signal conditioning and A/D conversion. For communication-intensive installations, the IS200VCMIH2C VME communication interface module provides Ethernet and serial connectivity that allows the Mark VI to exchange data with plant DCS systems, SCADA platforms, and historian servers over Modbus TCP or SRTP protocols.

Power integrity is equally critical. The IS200EPCTG1A power converter terminal board and associated IS200EACFG1A excitation analog I/O board ensure that the control system’s internal power rails remain stable even during grid disturbances. Upstream, industrial-grade 24 VDC power supplies with redundant feeds and UPS backup protect the entire I/O rack from power interruptions. Surge protection devices installed at the field terminal entry points — particularly on long cable runs from outdoor sensors — prevent transient overvoltages from reaching the IS200AEADH4A’s input circuits.

For facilities managing a broader GE Mark VI spare parts inventory, complementary modules such as the IS200TTURH1B turbine trip relay board, IS200VSVOH1B servo output terminal board, and IS200DSPXH1A digital signal processor board are available from TOPNLMS, enabling procurement teams to consolidate sourcing and reduce lead times across the entire control system BOM.

Application in Critical Infrastructure

The IS200AEADH4A has established a proven track record across the most demanding segments of global critical infrastructure. In combined-cycle power plants, the module manages thermocouple inputs from combustion liner thermocouples and exhaust temperature arrays, providing the real-time data that the Mark VI uses to optimize fuel-air ratios and protect hot-section components from thermal fatigue. A single gas turbine unit may rely on dozens of thermocouple inputs routed through IS200AEADH4A boards, making the module’s long-term reliability a direct factor in plant availability.

In upstream oil and gas applications — including offshore production platforms and onshore compression stations — the IS200AEADH4A operates in environments where salt-laden air, hydrocarbon vapors, and mechanical vibration from reciprocating compressors create an exceptionally hostile operating context. The module’s conformal coating and galvanic isolation are not optional features in these settings; they are fundamental to safe, continuous operation. Facilities in this sector typically maintain a minimum of one spare IS200AEADH4A per turbine train as part of their critical spare parts strategy, given the potential consequence of an unplanned outage.

Mining and mineral processing operations present a different but equally challenging profile: heavy dust loading, wide ambient temperature ranges, and high-current motor drives that generate substantial conducted and radiated EMI. The IS200AEADH4A’s differential input design and robust terminal construction allow it to maintain signal integrity in these conditions, supporting the turbine-driven ventilation and hoisting systems that are central to mine safety.

Water treatment and wastewater facilities operating large pump-turbine sets rely on the Mark VI and IS200AEADH4A for the precise speed and flow control that regulatory compliance demands. In metallurgical plants — blast furnaces, electric arc furnaces, and rolling mills — the module supports the turbine-driven blower and compressor systems that are integral to continuous production. Across all these sectors, the IS200AEADH4A’s value as a long-term-supported, readily available spare part is as important as its technical performance.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures that occur under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will provide a replacement or full refund after fault verification. Claims are initiated by contacting [email protected] with the order reference and a description of the failure mode. Return shipping for warranty claims is covered by TOPNLMS.

Q2: What pre-shipment testing does each IS200AEADH4A undergo?
Every IS200AEADH4A unit is subject to a pre-shipment inspection protocol that includes terminal block continuity verification, isolation resistance measurement between field terminals and backplane connectors, visual inspection for PCB damage or component anomalies, and functional power-on verification where test equipment permits. Units that do not pass all inspection criteria are quarantined and not shipped. A test report summary is available upon request for critical procurement applications.

Q3: Is the IS200AEADH4A compatible with both simplex and TMR Mark VI configurations?
Yes. The IS200AEADH4A is designed for use in both simplex (single-controller) and TMR (Triple Modular Redundant) Mark VI rack configurations. In TMR systems, three boards are installed in parallel; each board is electrically independent, and the controller voting logic handles any discrepancy between channels. TOPNLMS can advise on quantity requirements based on your specific rack configuration — contact [email protected] with your system architecture details.

Q4: What is the long-term supply outlook, and can TOPNLMS support ongoing replacement needs?
TOPNLMS maintains a managed inventory of IS200AEADH4A and related Mark VI I/O modules to support facilities with long-term maintenance contracts and multi-year spare parts programs. As GE transitions legacy Mark VI sites to newer control platforms, the availability of tested, warranted spare boards from specialist distributors becomes increasingly important. TOPNLMS actively sources and quality-screens stock to ensure continuity of supply for customers with extended maintenance horizons. Blanket order arrangements and reserved stock agreements are available for high-volume or time-critical requirements.
