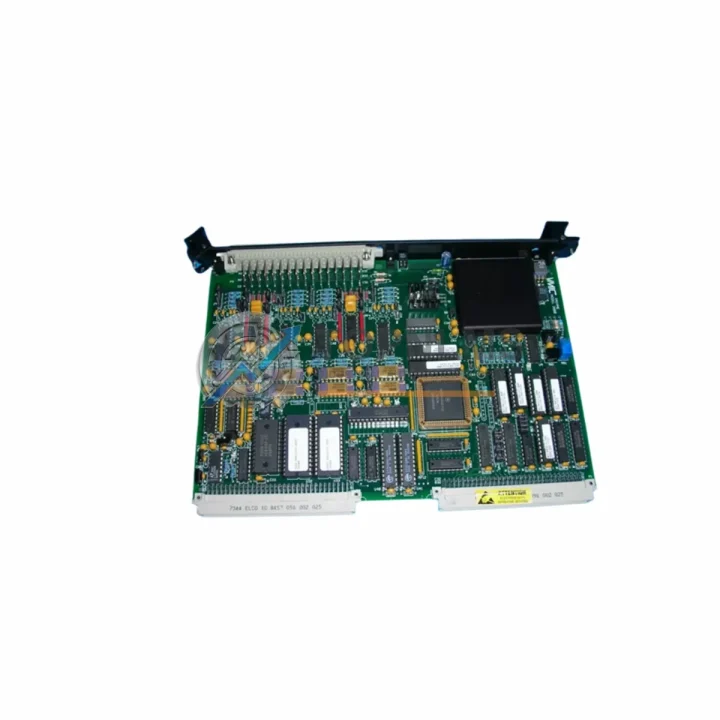

GE IC697VRD008 Ruggedized Strain Input Module for Harsh Industrial Environments

The GE Fanuc IC697VRD008 is an 8-channel strain bridge analog input module engineered for the Series 90-70 PLC platform — one of the most proven and widely deployed programmable logic controller architectures in heavy industry. Designed to operate reliably under the demanding conditions found in continuous production lines, hazardous processing zones, and critical infrastructure facilities, the IC697VRD008 delivers precise strain measurement data directly to the Series 90-70 CPU rack, enabling real-time structural load monitoring, force measurement, and process weight control without signal degradation.

In environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — such as those encountered in steel mills, mining operations, offshore platforms, and chemical processing plants — the IC697VRD008 maintains stable analog acquisition performance. Its robust backplane interface and shielded signal conditioning circuitry suppress common-mode noise and ground loop interference, ensuring measurement integrity even when installed adjacent to high-power variable frequency drives, large motor starters, or high-current bus systems.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC697VRD008 is rarely deployed in isolation. In a fully configured Series 90-70 control cabinet, it operates alongside a suite of complementary modules that together form a resilient, fault-tolerant automation architecture. The IC697CPX935 CPU module serves as the central processing unit, executing ladder logic and function block programs while managing I/O data exchange across the VME backplane. Discrete I/O is typically handled by modules such as the IC697MDL340 24 VDC input module and the IC697MDL940 relay output module, which interface directly with field devices including proximity sensors, solenoid valves, and motor contactors.

For analog process control loops — temperature, pressure, and flow — the IC697ALG230 analog input module and IC697ALG320 analog output module complement the strain bridge data provided by the IC697VRD008, giving the CPU a complete picture of both structural and process variables. In applications where network communication is critical, the IC697CMM742 Ethernet communications module or the IC697BEM731 Genius Bus Controller enables seamless integration with SCADA systems, distributed control networks, and plant-level historians.

Power integrity is maintained through the IC697PWR710 and IC697PWR724 power supply modules, which provide regulated 5 VDC and 24 VDC backplane power with built-in overvoltage and short-circuit protection — essential in environments where power quality fluctuates due to large inductive loads. The IC697CHS750 and IC697CHS790 rack chassis provide the physical housing and backplane bus for all these modules, with options for 5-slot, 9-slot, and 12-slot configurations to match the scale of the control system. Together, these components form a complete, hardened control solution capable of sustaining continuous operation in the most demanding industrial environments.

Application in Critical Infrastructure

The GE Fanuc IC697VRD008 finds its most demanding deployments in sectors where measurement accuracy and system uptime are non-negotiable. In oil and gas facilities — including wellhead control panels, pipeline compression stations, and offshore production platforms — the module monitors structural loads on pressure vessels, pipe supports, and lifting equipment, providing early warning of mechanical stress before failure occurs. Its resistance to salt-laden air, hydrocarbon vapors, and wide temperature swings makes it well-suited for Zone 2 classified areas when installed within appropriately rated enclosures.

In mining operations, the IC697VRD008 is deployed on conveyor belt weigh bridges, crusher load cells, and hoist rope tension monitoring systems. The module’s ability to reject vibration-induced noise — common in underground and open-cut mining environments — ensures that weight and force data reaching the Series 90-70 CPU remains accurate even when heavy machinery operates nearby. In electric power generation plants, the module monitors turbine bearing loads and generator stator frame stress, contributing to predictive maintenance programs that reduce unplanned outages.

Water treatment and wastewater facilities rely on the IC697VRD008 for pump and valve actuator force monitoring, ensuring that mechanical components operate within design limits and that maintenance interventions are scheduled proactively rather than reactively. In steel and aluminum smelting operations, where ambient temperatures regularly exceed 50 °C and electromagnetic interference from arc furnaces is severe, the module’s shielded analog front end and robust backplane connection maintain signal fidelity throughout the production cycle.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the IC697VRD008?
Every IC697VRD008 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. If the module fails under normal operating conditions within this period, we will provide a replacement unit at no additional cost. Our warranty covers manufacturing defects and functional failures; it does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q2: How is each IC697VRD008 tested before shipment?
All units undergo a multi-stage inspection process prior to dispatch. This includes visual inspection for physical damage, backplane connector integrity verification, power-on functional testing in a Series 90-70 rack environment, and channel-level analog signal verification across the full input range. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement.

Q3: Is the IC697VRD008 compatible with all Series 90-70 CPU and rack configurations?
The IC697VRD008 is compatible with the full range of Series 90-70 CPU modules, including the IC697CPX935, IC697CPX928, IC697CPU772, and IC697CPU771, as well as all standard Series 90-70 rack chassis from 5-slot to 12-slot configurations. It communicates over the standard VME-based Series 90-70 backplane and requires no special firmware or hardware modification. Compatibility with specific application programs should be verified against the GE Fanuc Series 90-70 Hardware Reference Manual.

Q4: Can TOPNLMS support long-term and repeat supply of the IC697VRD008?
Yes. TOPNLMS maintains dedicated stock of Series 90-70 modules, including the IC697VRD008, to support both emergency replacement and planned maintenance programs. We understand that industrial facilities often require multiple units over extended maintenance cycles, and we work with procurement teams to establish supply agreements that ensure consistent availability. For volume inquiries or scheduled delivery programs, contact our technical sales team directly.
