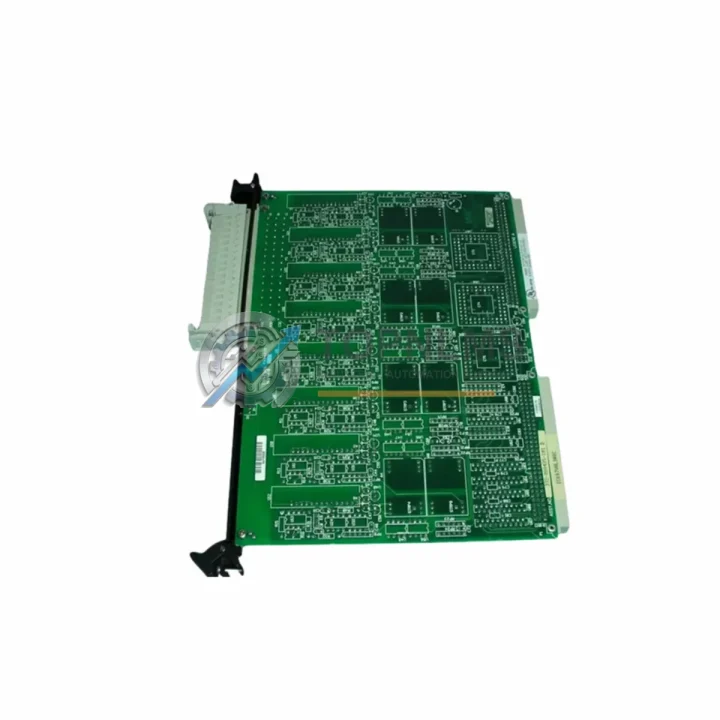

GE IC697VAL308/4800 Ruggedized Analog Output Module

Product Overview

GE IC697VAL308/4800 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

The GE IC697VAL308/4800 is an 8-channel analog output module engineered for the GE Series 90-70 PLC platform — one of the most widely deployed distributed control architectures in heavy industry. Designed to deliver precise, stable analog signal output under demanding operational conditions, this module is a cornerstone component for process control engineers who cannot afford signal drift, unexpected shutdowns, or unreliable field instrumentation in critical production environments.

Built to GE Fanuc’s industrial-grade standards, the IC697VAL308/4800 operates reliably across wide temperature ranges, high-humidity atmospheres, and environments subject to continuous mechanical vibration and airborne particulate contamination. Its robust backplane connector and conformal-coated PCB construction provide a meaningful layer of protection against the corrosive and electrically noisy conditions found in oil refineries, chemical processing plants, mining operations, and metallurgical facilities. Whether installed in a climate-controlled control room or a field-mounted enclosure exposed to ambient industrial conditions, this module maintains output accuracy and signal integrity across all eight channels simultaneously.

In systems where the Series 90-70 rack hosts a mix of discrete and analog I/O — including the IC697MDL340 discrete input module, IC697MDL341 discrete output module, and IC697ALG320 analog input module — the IC697VAL308/4800 completes the analog output layer with consistent 4–20 mA or 0–10 V signal ranges suitable for driving control valves, variable frequency drives (VFDs), proportional solenoids, and positioners. Its compatibility with the IC697CPU772 and IC697CPU781 central processing units ensures seamless integration into existing Series 90-70 architectures without firmware conflicts or rack reconfiguration.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC697VAL308/4800 does not operate in isolation — it is part of a broader control architecture that demands equally rugged supporting components. In a typical Series 90-70 control cabinet, the module works alongside the IC697PWR710 or IC697PWR711 power supply modules, which provide stable, filtered DC power to the rack even when upstream AC supply quality is degraded by heavy motor loads or switching transients. Reliable power delivery is the first line of defense for analog output accuracy.

On the communications side, the IC697CMM711 communications coprocessor module enables the Series 90-70 rack to exchange process data over Ethernet TCP/IP networks, while the IC697BEM711 bus expansion module allows multi-rack configurations to extend I/O capacity across large control panels without sacrificing scan cycle performance. These modules share the same VME backplane architecture as the IC697VAL308/4800, ensuring deterministic data exchange between the CPU and all I/O modules.

For safety-critical loops, the IC697VAL308/4800 is frequently paired with IC697MDL671 relay output modules that provide hardwired interlock capability independent of the PLC scan cycle. In high-vibration environments such as compressor stations or rolling mills, terminal block assemblies and field wiring connectors rated for continuous mechanical stress are essential companions to the module’s field-side connections. Surge protection devices installed at the cabinet entry point further shield the analog output channels from lightning-induced transients and ground potential differences common in large industrial facilities.

When the IC697VAL308/4800 is used to drive variable frequency drives — such as those controlling pump motors in water treatment or cooling tower applications — proper shielded cable routing and grounding practices are critical. The module’s optical isolation between channels and backplane significantly reduces the risk of common-mode noise coupling from VFD output cables back into the control system, protecting both the PLC CPU and adjacent I/O modules from interference-induced faults.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the GE IC697VAL308/4800 is deployed in wellhead control panels, compressor station automation systems, and pipeline SCADA outstations where analog output signals command control valves, pressure regulators, and flow control elements. The module’s ability to maintain calibrated output under wide ambient temperature swings — from cold desert nights to hot summer afternoons in exposed field enclosures — makes it a trusted choice for remote unmanned installations where maintenance access is infrequent.

In power generation facilities, including coal-fired, gas turbine, and hydroelectric plants, the Series 90-70 platform with IC697VAL308/4800 modules manages turbine governor control signals, excitation system setpoints, and auxiliary equipment speed references. The module’s 12-bit resolution provides the fine control granularity required for stable frequency regulation and load-following operations.

In mining and mineral processing, where conveyor systems, crushers, and flotation cells operate continuously under heavy dust loads and vibration, the IC697VAL308/4800’s conformal coating and robust backplane connection resist the ingress of conductive particulates that can cause insulation breakdown in lesser-grade modules. Planned preventive maintenance programs in these facilities typically include stocking certified replacement modules to minimize unplanned downtime — a practice that TOPNLMS directly supports through its verified inventory and rapid dispatch capability.

In water and wastewater treatment plants, the module drives analog setpoints to dosing pump controllers, aeration blower VFDs, and UV disinfection intensity controllers. The 4–20 mA output standard ensures compatibility with virtually all field instruments regardless of manufacturer, making the IC697VAL308/4800 a universal analog output solution within mixed-vendor automation environments.

In metallurgical and steel production environments, where electromagnetic interference from arc furnaces and induction heaters is severe, the module’s EMI-hardened design and optical isolation provide the signal integrity necessary for precise temperature control, rolling speed regulation, and cooling water flow management — processes where analog output errors directly translate to product quality defects or equipment damage.

Security & Quality FAQ

Q1: What warranty coverage is provided with the GE IC697VAL308/4800?
Every IC697VAL308/4800 unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This covers functional defects under normal operating conditions. Our technical team provides post-sale support to assist with installation, configuration, and troubleshooting throughout the warranty period.

Q2: How is each module tested before shipment?
All modules undergo pre-shipment functional verification including power-on self-test confirmation, backplane interface continuity checks, and visual inspection for physical damage or counterfeit indicators. Units sourced from verified supply chains are cross-referenced against GE Fanuc original part markings to ensure authenticity before dispatch.

Q3: Is the IC697VAL308/4800 compatible with my existing Series 90-70 rack and CPU?
Yes. The IC697VAL308/4800 is fully compatible with all standard Series 90-70 VME racks and is supported by GE Fanuc CPUs including the IC697CPU772 and IC697CPU781. No special firmware or rack modification is required. The module is configured via the GE Proficy Machine Edition (formerly Logicmaster 90) programming environment using standard I/O configuration tables.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS maintains stock of the IC697VAL308/4800 and related Series 90-70 components to support both emergency replacement and planned maintenance procurement programs. We provide lead time estimates, quantity availability confirmation, and export documentation for international shipments. Contact our team at [email protected] or +86 18359293191 for a formal quotation.
