GE IC697MDL970 Ruggedized Relay Output Module for Harsh Environments

Product Overview

GE IC697MDL970 Ruggedized Relay Output Module for Harsh Environments

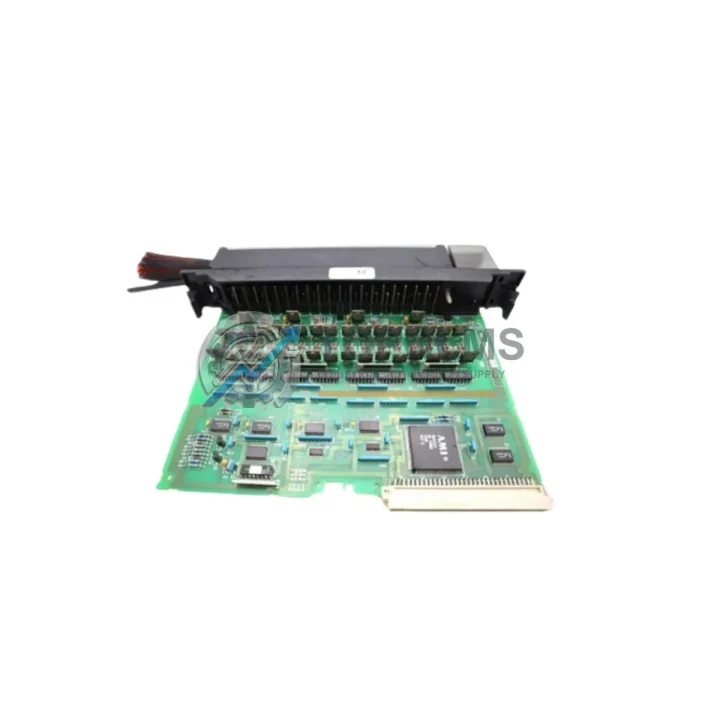

The GE Fanuc IC697MDL970 is a 16-point relay output module engineered for the Series 90-70 PLC platform — one of the most widely deployed programmable logic controller architectures in heavy industrial automation. Designed to operate reliably in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the IC697MDL970 delivers the output switching performance and electrical isolation that mission-critical control systems demand.

In continuous production environments — from petrochemical refineries and offshore platforms to underground mining operations and high-voltage power substations — relay output modules are the last line of defense between the control system and field actuators. The IC697MDL970 provides robust dry-contact relay outputs capable of switching both AC and DC loads, making it universally compatible with a broad range of field devices including solenoid valves, motor starters, alarm annunciators, and safety interlock circuits. Its wide operating voltage range and high contact current rating ensure stable performance even when field wiring is subject to voltage transients and inductive load switching.

The module slots directly into the Series 90-70 VME-based backplane alongside companion modules such as the IC697MDL940 discrete input module, the IC697MDL753 analog output module, and the IC697ALG320 analog input module, forming a tightly integrated I/O subsystem. When paired with the IC697CPU772 or IC697CPU781 central processing units, the IC697MDL970 participates in deterministic scan-cycle execution, ensuring that relay switching commands are executed within the guaranteed cycle time — a non-negotiable requirement for safety-instrumented systems and emergency shutdown (ESD) logic.

In distributed control architectures, the IC697MDL970 is frequently deployed alongside IC697BEM711 bus expansion modules and IC697CMM742 communications modules to extend the Series 90-70 rack across remote I/O drops in large-scale plant environments. This architecture is common in water treatment facilities, where relay outputs control pump motor contactors, valve actuators, and chemical dosing systems across geographically dispersed process areas. The module’s inherent electrical isolation between the logic-side circuitry and the relay contacts provides a critical safety barrier, preventing field-side fault currents from propagating back into the CPU backplane.

For facilities operating in classified hazardous areas — including Zone 1 and Zone 2 gas environments or Class I Division 2 locations under NEC standards — the IC697MDL970 is typically installed in purged and pressurized control enclosures or paired with certified intrinsic safety barriers and galvanic isolators. Its compatibility with standard Series 90-70 power supply modules such as the IC697PWR711 and IC697PWR724 ensures that the entire rack assembly can be powered from redundant 24 VDC or 120/240 VAC sources, supporting the high-availability requirements of continuous process industries.

Metallurgical plants and steel mills represent another demanding application domain for the IC697MDL970. In these environments, relay output modules must withstand radiated electromagnetic fields generated by large induction furnaces, arc welders, and variable-frequency drives (VFDs). The Series 90-70 platform’s shielded backplane design and the IC697MDL970’s optically isolated input stage provide effective suppression of common-mode noise, maintaining signal integrity even in the presence of severe EMI. When integrated with IC697CMM711 Ethernet communications modules or IC697BEM731 Genius Bus controllers, the module participates in plant-wide SCADA and DCS networks without compromising control loop stability.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC697MDL970 is most effective when deployed as part of a fully integrated Series 90-70 protection and control architecture. In a typical heavy industrial control cabinet, the relay output module works in concert with the IC697MDL940 16-point discrete input module to form a complete digital I/O pair — inputs monitoring field sensor states, outputs commanding actuators and safety devices. Analog process variables are handled by the IC697ALG320 8-channel analog input module and the IC697MDL753 analog output module, enabling closed-loop PID control of temperature, pressure, and flow parameters alongside the relay switching functions of the IC697MDL970.

For applications requiring high-speed fault detection and safety interlock execution, the IC697MDL970 is paired with dedicated safety relay modules and hardwired emergency stop circuits that bypass the PLC scan cycle entirely, ensuring sub-100ms response times for ESD activation. The IC697PWR711 rack power supply provides regulated 5 VDC and 24 VDC backplane power with built-in overvoltage and short-circuit protection, while the IC697BEM711 bus expansion module allows the relay output module to be located in remote racks up to 15 meters from the main CPU rack — essential for large switchgear rooms and distributed motor control centers (MCCs).

Communications integration is achieved through the IC697CMM742 serial communications module supporting Modbus RTU and ASCII protocols, or the IC697CMM711 Ethernet module for TCP/IP-based SCADA connectivity. These communication modules allow the IC697MDL970’s relay output states to be monitored and commanded remotely from DCS operator workstations, historian servers, and plant information management systems (PIMS), providing full operational visibility without requiring physical access to the control cabinet.

Application in Critical Infrastructure

The GE Fanuc IC697MDL970 has established a proven track record across the most demanding sectors of critical infrastructure. In oil and gas processing facilities — including upstream wellhead control panels, midstream compressor stations, and downstream refinery units — the module controls high-integrity pressure protection systems (HIPPS), emergency depressurization valves, and fire and gas detection relay outputs. Its ability to switch inductive loads reliably over extended duty cycles makes it well-suited for the repetitive valve actuation sequences common in gas injection and pipeline pigging operations.

In electric power generation and transmission substations, the IC697MDL970 interfaces with protection relays, circuit breaker trip coils, and alarm annunciator panels. The module’s dry-contact outputs are inherently compatible with the 48 VDC and 125 VDC station battery systems used in substation protection schemes, eliminating the need for intermediate signal converters. Coal-fired and hydroelectric power plants rely on Series 90-70 systems with IC697MDL970 modules to manage turbine governor controls, boiler feed pump sequencing, and auxiliary equipment protection.

In mining and mineral processing operations, the module controls conveyor belt drives, crusher motor starters, and ventilation fan contactors in environments where coal dust, silica particulates, and explosive methane concentrations demand the highest standards of electrical safety and enclosure integrity. Water treatment and wastewater management facilities deploy the IC697MDL970 to automate pump station sequencing, chemical feed systems, and UV disinfection equipment across multiple remote lift stations, leveraging the Series 90-70’s remote I/O expansion capability to minimize field wiring costs.

In metallurgical and steel production plants, the module withstands the intense electromagnetic environment generated by electric arc furnaces and ladle refining units, maintaining reliable relay switching performance for casting machine controls, rolling mill interlocks, and fume extraction system management. Its long-term availability as a stocked spare part at TOPNLMS ensures that plant maintenance teams can execute rapid module replacement during scheduled outages or unplanned failures, minimizing production downtime and protecting revenue-critical continuous casting operations.

Security & Quality FAQ

Q1: What warranty coverage is provided for the IC697MDL970?
Every IC697MDL970 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects under normal operating conditions and includes technical support for installation and commissioning. Replacement or repair is provided at no additional cost for verified warranty claims, ensuring your production continuity is protected.

Q2: How is each unit tested before shipment?
All IC697MDL970 modules undergo a multi-stage pre-shipment inspection process including visual examination for physical integrity, functional relay output testing across all 16 points, backplane connector verification, and power-on self-test (POST) validation. Units that do not pass all inspection criteria are quarantined and not shipped. Test records are retained and available upon request for quality-audited procurement processes.

Q3: Is the IC697MDL970 compatible with my existing Series 90-70 rack and CPU?
Yes. The IC697MDL970 is fully compatible with all standard Series 90-70 VME racks including the IC697CHS750, IC697CHS782, and IC697CHS790 chassis, and operates with all Series 90-70 CPU variants from IC697CPU731 through IC697CPU788. No firmware modifications or special configuration files are required — the module is recognized automatically during PLC rack configuration in Proficy Machine Edition (PME) software.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
TOPNLMS maintains dedicated inventory of IC697MDL970 and related Series 90-70 I/O modules to support both planned maintenance schedules and emergency breakdown replacement scenarios. Orders placed before 3:00 PM CST on business days are processed for same-day dispatch. For critical infrastructure operators requiring guaranteed spare parts availability, TOPNLMS offers reserved stock arrangements and priority fulfillment agreements. Contact our technical sales team at [email protected] or +86 18359293191 to discuss your long-term supply requirements.
