GE IC697MDL750H Replacement Solution for Series 90-70

Product Overview

GE IC697MDL750H Replacement Solution for Series 90-70: Seamless Transition & Legacy System Upgrade

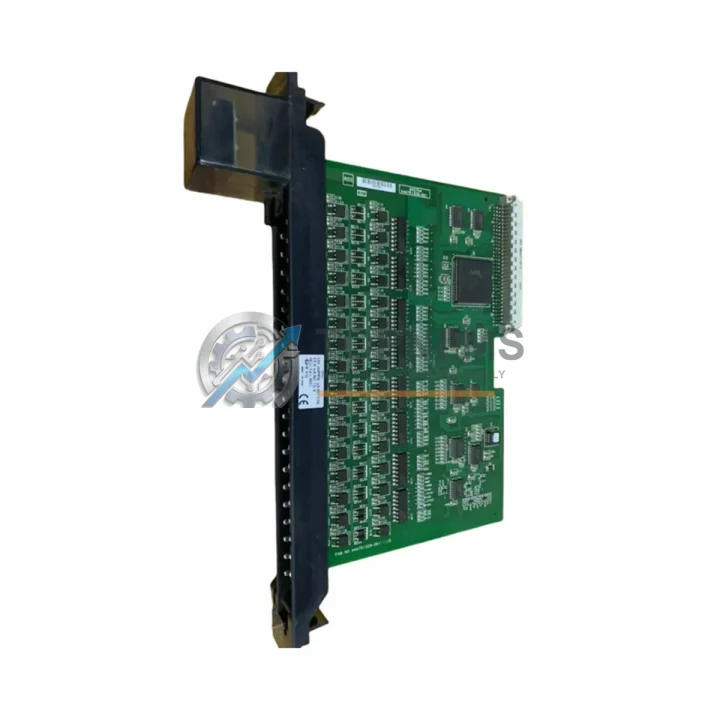

The GE Fanuc IC697MDL750H is a 16-point relay output module designed for the Series 90-70 PLC platform — one of the most widely deployed programmable logic controller architectures in heavy industry, power generation, water treatment, and discrete manufacturing. As GE Fanuc has transitioned its automation portfolio and the Series 90-70 line has moved toward end-of-life support, facilities running IC697MDL750 and IC697MDL750D variants face increasing pressure to source reliable replacement modules that maintain full backward compatibility with existing rack infrastructure, field wiring, and ladder logic programs.

TOPNLMS stocks verified IC697MDL750H units sourced through controlled supply channels, each subject to functional testing prior to dispatch. Whether you are replacing a failed module on an active production line or building a strategic spare-parts inventory to extend the operational life of your Series 90-70 system, this module provides a direct, drop-in solution with no rewiring, no program modification, and no rack reconfiguration required.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IC697MDL750H replacement or system migration rarely involves a single module in isolation. In most Series 90-70 installations, the relay output module operates alongside a broader set of I/O and control components that must be evaluated as part of any upgrade or spare-parts strategy.

For facilities managing aging discrete input infrastructure, the IC697MDL651 16-point 120 VAC input module is a common companion to the MDL750H in mixed I/O racks, and sourcing both simultaneously reduces the risk of cascading failures during a planned maintenance window. Similarly, the IC697MDL653 and IC697MDL654 analog input modules are frequently found in the same rack assemblies in process control applications where relay outputs drive field actuators based on analog sensor feedback.

Power supply integrity is critical in any Series 90-70 retrofit. The IC697PWR711 and IC697PWR724 power supply modules provide the regulated backplane voltage that all I/O modules depend on, and a degraded power supply is often the root cause of intermittent relay output faults that are misdiagnosed as module failures. Replacing the IC697MDL750H without auditing the power supply condition is a common oversight in field maintenance.

For systems using Genius Bus communications — a distributed I/O architecture common in large Series 90-70 installations — the IC697BEM711 Bus Controller Module manages the Genius Bus network that connects remote I/O drops to the main rack. Ensuring the BEM711 firmware is current is a prerequisite for stable operation after any I/O module swap. In installations where the Genius Bus has been partially migrated to Ethernet-based I/O using the IC697CMM742 Communications Module, the relay output module replacement must be validated against the updated I/O map in Proficy Machine Edition to confirm address assignments remain consistent.

Control cabinet space is a practical constraint in many retrofit projects. The IC697CHS750 5-slot rack and IC697CHS782 9-slot rack are the most common chassis configurations in the field, and the IC697MDL750H occupies a single slot in either configuration, preserving the physical layout of the existing installation. For facilities planning a phased migration toward a newer control platform, the IC697MDL750H serves as a cost-effective bridge solution that maintains production continuity while the broader system architecture is redesigned.

Terminal block accessories, specifically the IC697ACC724 field wiring terminal block, connect directly to the MDL750H without modification, preserving the existing field wiring harness and eliminating the labor cost and downtime associated with rewiring during an emergency replacement.

Retrofit Guidance FAQ

Q: Can I replace IC697MDL750 or IC697MDL750D with IC697MDL750H without modifying my ladder logic program?
A: Yes. The IC697MDL750H is a direct functional replacement for earlier MDL750 variants. The I/O addressing, output point count, and backplane interface are identical. No program changes are required in Logicmaster 90-70 or Proficy Machine Edition.

Q: Does the IC697MDL750H require any changes to field wiring?
A: No. The module uses the same IC697ACC724 terminal block as earlier MDL750 variants. Existing field wiring connections are preserved without modification.

Q: Is the IC697MDL750H compatible with all Series 90-70 rack configurations?
A: Yes. The module is compatible with IC697CHS750 (5-slot), IC697CHS782 (9-slot), and IC697CHS790 (12-slot) chassis. It occupies a single slot and does not require adjacent slot clearance.

Q: What communication protocols does the Series 90-70 system support after this replacement?
A: The Series 90-70 platform supports Genius Bus, SNP (Serial Network Protocol), and SRTP (Service Request Transport Protocol) for Ethernet-connected CPUs. The IC697MDL750H replacement does not affect communication protocol configuration.

Q: How do I verify the module is functioning correctly after installation?
A: After seating the module in the rack and powering the system, use Proficy Machine Edition or the legacy Logicmaster 90-70 programmer to perform a forced output test on each of the 16 relay points. Confirm relay actuation with a continuity tester or by observing connected field devices. The module’s LED indicators will confirm output state for each point.

Q: Can this module be used in a system that has been partially migrated to a newer GE platform?
A: The IC697MDL750H is specific to the Series 90-70 VME backplane architecture and is not compatible with Series 90-30, VersaMax, or PACSystems RX7i racks. For hybrid installations, the module must remain in a dedicated Series 90-70 rack segment.

Q: What is the lead time and shipping origin?
A: Units are stocked in Xiamen, China. Standard international shipping is available with typical lead times of 3–7 business days depending on destination. Express options are available for urgent replacement requirements.

Warranty Assurance

Every IC697MDL750H unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification process that includes power-on testing, relay output actuation checks across all 16 points, and backplane interface validation. Units that do not meet functional specifications are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or full refund processing within 5 business days of claim confirmation. Customers are not required to return the defective unit before a replacement is dispatched for critical production applications — contact our technical team to arrange priority replacement under the warranty program.

Our after-sales support team is available to assist with installation questions, compatibility verification, and system integration guidance. We maintain documentation for Series 90-70 I/O modules and can provide configuration reference materials upon request.

For bulk procurement, system integrators, and OEM spare-parts programs, volume pricing and extended warranty options are available. Contact our sales team to discuss your specific requirements.
