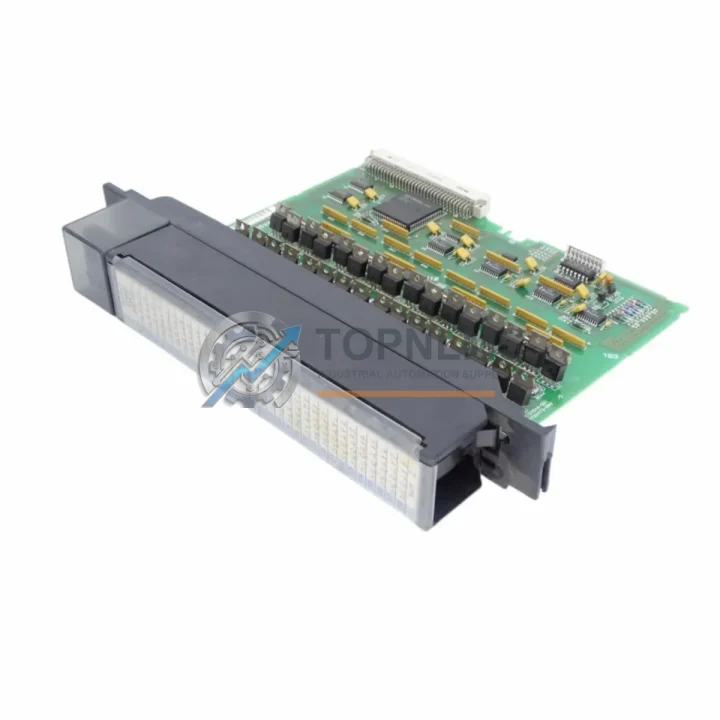

GE IC697MDL750 Ruggedized 32-Pt 120VAC Output Module

Product Overview

GE IC697MDL750 Ruggedized 32-Pt 120VAC Output Module: Industrial Resilience for Harsh Environments

The GE IC697MDL750 is a 32-point, 120VAC discrete output module engineered for the GE Series 90-70 PLC platform — one of the most widely deployed large-frame programmable logic controller architectures in heavy industry. Designed to deliver sustained, reliable switching performance in electrically noisy, thermally demanding, and mechanically stressful environments, the IC697MDL750 remains a cornerstone output module for facilities that cannot afford unplanned downtime.

In continuous production environments — including petrochemical plants, power generation facilities, water treatment stations, and steel mills — output modules are exposed to conditions that push standard electronics to their limits. The IC697MDL750 addresses these challenges with robust optoisolated output circuitry that provides galvanic separation between the field-side 120VAC loads and the backplane logic bus. This isolation architecture is critical when driving inductive loads such as motor starters, solenoid valves, and contactor coils, where voltage transients and inductive kickback are constant threats to module longevity.

The module slots directly into the GE IC697CHS750 or IC697CHS782 Series 90-70 baseplate, maintaining full compatibility with the rack’s power distribution and backplane communication architecture. When paired with the GE IC697PWR711 or IC697PWR724 power supply modules, the system delivers a stable, regulated DC bus to all installed modules — including the IC697MDL750 — even under fluctuating AC input conditions common in industrial substations.

Field wiring connects through a removable terminal block, allowing the IC697MDL750 to be replaced without disturbing field wiring — a critical advantage during emergency maintenance windows in live production environments. Each of the 32 output points is individually fused at the field level, and the module’s LED status indicators provide real-time point-by-point diagnostics visible from the front of the control cabinet, reducing fault isolation time during troubleshooting.

In high-electromagnetic-interference (EMI) environments such as arc furnace control rooms, variable frequency drive (VFD) panels, and high-voltage switchgear enclosures, the IC697MDL750’s optoisolated design and shielded backplane interface help maintain signal integrity. When installed alongside GE IC697MDL651 discrete input modules and IC697MDL940 relay output modules in the same rack, the system forms a complete I/O subsystem capable of handling both high-density digital sensing and high-current switching tasks within a single Series 90-70 chassis.

For facilities running GE IC697CPU772 or IC697CPU782 central processing units, the IC697MDL750 integrates seamlessly into the existing program logic without requiring I/O address remapping — a significant advantage when replacing a failed module during a scheduled maintenance window or an emergency shutdown. The module’s configuration is stored in the CPU, meaning a replacement IC697MDL750 is recognized and operational immediately upon insertion, with no handheld programmer or laptop required for basic restoration.

Communication-intensive installations that rely on GE IC697CMM742 or IC697BEM731 bus expansion modules benefit from the IC697MDL750’s low backplane latency, ensuring that output scan times remain within the deterministic control loop requirements of time-critical processes such as turbine control, compressor sequencing, and emergency shutdown (ESD) systems.

TOPNLMS maintains verified stock of the IC697MDL750, with each unit subjected to functional output testing prior to shipment. Units are shipped in anti-static packaging with full documentation, and every module is covered by a 12-month replacement warranty from the date of delivery.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable discrete output control in harsh industrial environments depends on a well-integrated system architecture. The IC697MDL750 is most effective when deployed as part of a complete Series 90-70 I/O strategy. In high-density applications, it is commonly installed alongside the GE IC697MDL651 32-point 120VAC discrete input module, creating a matched input/output pair that simplifies cabinet layout and wiring documentation. For applications requiring relay-isolated outputs — such as driving pilot lights, alarm annunciators, or low-current solenoids — the IC697MDL940 relay output module complements the IC697MDL750 in the same rack.

Power integrity is maintained by the IC697PWR711 120/240VAC power supply, which provides the regulated 5VDC and 24VDC backplane rails required by all Series 90-70 modules. In redundant power configurations, a second IC697PWR724 supply can be installed to provide automatic failover, eliminating the power supply as a single point of failure in critical process control loops.

For facilities with distributed I/O requirements — such as remote pump stations, field junction boxes, or satellite control panels — the IC697BEM731 bus expansion module extends the Series 90-70 I/O bus to remote racks, allowing the IC697MDL750 to be installed at the point of use rather than in a centralized control room. This reduces field wiring runs, lowers installation costs, and improves noise immunity by keeping signal paths short.

Signal conditioning and surge protection at the terminal block level — using DIN-rail-mounted surge arrestors and signal isolators — further protect the IC697MDL750’s output circuits from field-side transients in environments with long cable runs or proximity to high-voltage equipment. These protective components are standard practice in oil and gas, mining, and power generation installations where the IC697MDL750 is commonly deployed.

Application in Critical Infrastructure

The GE IC697MDL750 has a proven deployment history across some of the most demanding industrial sectors. In oil and gas upstream and midstream facilities, it controls wellhead valve actuators, pipeline isolation valves, and compressor station sequencing logic — applications where output module failure can trigger costly production shutdowns or safety system activations. Its optoisolated design provides the necessary separation between hazardous-area field devices and the control system electronics.

In power generation plants — including coal, gas turbine, and hydroelectric facilities — the IC697MDL750 manages auxiliary systems such as cooling water pumps, lube oil systems, and excitation control contactors. The module’s ability to switch 120VAC loads at high cycle rates without degradation makes it well-suited to the repetitive switching demands of turbine auxiliary control.

In water and wastewater treatment facilities, the IC697MDL750 controls pump motor starters, chemical dosing solenoids, and UV disinfection system contactors. The high-humidity operating environment of these facilities — often exceeding 80% relative humidity — is well within the module’s specified operating range, and its conformal-coated PCB provides additional protection against condensation and airborne contaminants.

In metals and mining operations, the IC697MDL750 is deployed in ore processing conveyors, crusher control panels, and smelter auxiliary systems. The high levels of airborne particulate, vibration from heavy machinery, and electromagnetic interference from large DC drive systems in these environments are conditions the Series 90-70 platform was specifically designed to withstand.

Security & Quality FAQ

Q: What warranty coverage is provided with the IC697MDL750?
A: Every IC697MDL750 shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. If the module fails under normal operating conditions within the warranty period, we will provide a replacement unit at no additional cost. Our warranty process is straightforward — contact us by email or phone, and we will arrange return logistics and expedited replacement shipment.

Q: How is each module tested before shipment?
A: Each IC697MDL750 undergoes functional output testing prior to packaging. We verify that all 32 output points switch correctly, that the backplane interface communicates properly, and that the module’s LED indicators respond accurately to output state changes. Units that do not pass functional testing are not shipped. A test report is available upon request for quality-critical procurement processes.

Q: Is the IC697MDL750 compatible with my existing Series 90-70 rack and CPU?
A: Yes. The IC697MDL750 is fully compatible with all standard Series 90-70 baseplates (IC697CHS750, IC697CHS782, and variants) and all Series 90-70 CPUs, including the IC697CPU772 and IC697CPU782. No firmware updates or configuration changes are required when replacing a failed module with a unit of the same model number. The replacement module is recognized automatically by the CPU upon power-up.

Q: Can TOPNLMS support long-term or repeat procurement of the IC697MDL750?
A: Yes. TOPNLMS maintains ongoing stock of the IC697MDL750 and other Series 90-70 components to support facilities with long-term maintenance contracts, annual spare parts budgets, or emergency replacement requirements. We can provide quantity pricing, lead time commitments, and reserved stock arrangements for high-volume or time-sensitive procurement programs. Contact us at [email protected] or +86 18359293191 to discuss your requirements.
