GE IC697MDL340 Replacement Upgrade for Series 90-70

Product Overview

GE IC697MDL340 Replacement Upgrade for Series 90-70: Smooth Migration from Legacy Discrete Output Systems

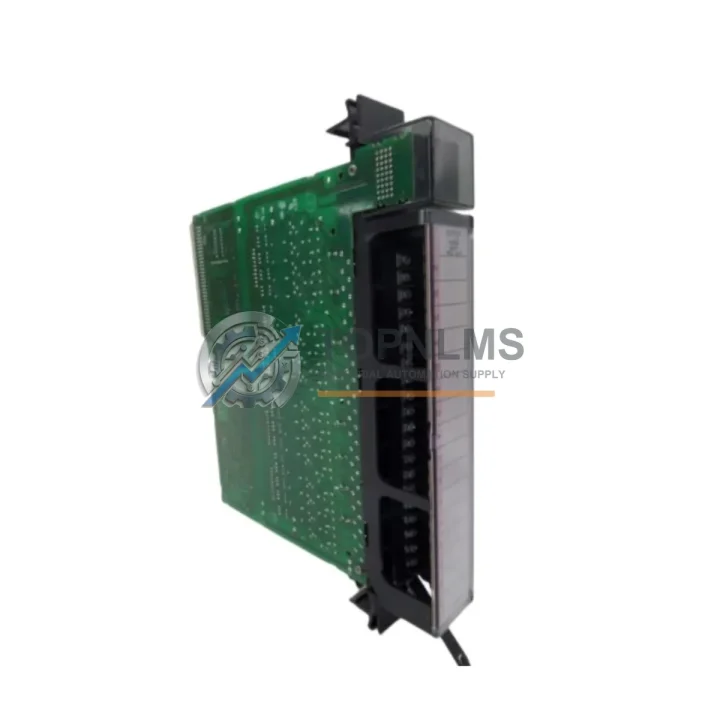

The GE Fanuc IC697MDL340 is a 32-point discrete output module designed for the Series 90-70 programmable logic controller platform. As industrial facilities continue to modernize aging control architectures, the IC697MDL340 remains a critical component for engineers managing the transition from obsolete or end-of-life output modules to a reliable, fully compatible replacement. Whether your facility is retiring a failed IC697MDL341 or consolidating a mixed rack populated with earlier-generation I/O modules, the IC697MDL340 delivers a direct, low-disruption upgrade path that preserves your existing wiring infrastructure, rack geometry, and ladder logic programs.

The Series 90-70 platform was engineered for high-density, high-reliability discrete control in process industries, automotive assembly, power generation, and heavy manufacturing. The IC697MDL340 slots directly into any Series 90-70 rack — including the IC697CHS750, IC697CHS782, and IC697CHS790 chassis — without requiring mechanical modification or additional mounting hardware. Field wiring connected to the original module’s terminal block can be reused in most replacement scenarios, significantly reducing the labor cost and downtime associated with a module swap.

From a communications and programming perspective, the IC697MDL340 is fully recognized by GE Fanuc’s Logicmaster 90-70 and Proficy Machine Edition software environments. Engineers migrating from a damaged or obsolete module do not need to modify the I/O configuration table or reassign reference addresses, provided the replacement module is installed in the same rack slot. This compatibility extends to the CPU modules that govern the rack — including the IC697CPU731, IC697CPU771, and IC697CPU782 — ensuring that the replacement module integrates seamlessly into the existing program scan cycle without requiring a cold restart or full system re-commissioning.

Power supply compatibility is another key consideration during module replacement. The IC697MDL340 operates within the standard Series 90-70 backplane power budget and is compatible with the IC697PWR711 and IC697PWR724 power supply modules. Facilities running redundant power configurations do not need to recalculate load distribution when substituting the IC697MDL340 for an equivalent discrete output module, provided the total rack load remains within specification.

For sites migrating from older 24 VDC or 120 VAC discrete output modules, the IC697MDL340’s output voltage and current ratings should be verified against the field device load requirements before installation. In most standard industrial applications — solenoid valves, motor starters, pilot lights, and relay coils — the module’s output specifications are a direct match for the devices previously driven by the legacy module. Where load characteristics differ, the addition of an interposing relay or signal isolator between the module output and the field device resolves the mismatch without requiring changes to the PLC program or rack configuration.

Facilities operating mixed-generation control cabinets — where Series 90-70 racks coexist with Series 90-30 or PACSystems RX7i hardware — will find that the IC697MDL340 fits within the established Series 90-70 form factor and does not require changes to the cabinet’s DIN rail layout, cable management, or grounding scheme. This is particularly relevant for phased modernization projects where only selected racks are being upgraded while the broader control system remains in service.

From a procurement standpoint, TOPNLMS maintains verified stock of the IC697MDL340 and ships from Xiamen with full pre-shipment functional testing. Each unit is inspected against GE Fanuc’s original module specifications before dispatch. Orders are processed within one business day, and international shipments are supported with commercial invoice documentation suitable for customs clearance in most industrial import markets. A 12-month warranty is included with every unit, covering manufacturing defects and functional failures under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Series 90-70 output module replacement rarely involves the IC697MDL340 in isolation. In practice, engineers sourcing a replacement output module often simultaneously audit adjacent components in the same rack. The IC697MDL340 is most commonly deployed alongside the IC697MDL653 analog input module and the IC697MDL671 discrete input module, which together form the standard I/O complement for a Series 90-70 process control rack. Where communication between the Series 90-70 rack and a supervisory SCADA system is required, the IC697CMM742 communications coprocessor module provides the Ethernet or serial interface layer without requiring changes to the CPU’s program logic.

For facilities migrating from older bus-based architectures, the IC697BEM731 bus expansion module allows the Series 90-70 rack to be extended across multiple physical cabinets, preserving the existing I/O address map while accommodating additional modules. Power distribution within the cabinet is typically managed by the IC697PWR724 power supply, which provides sufficient headroom for a fully populated rack including the IC697MDL340 and co-installed analog and communications modules.

In control cabinets where signal integrity between the PLC output and field devices is a concern — particularly in environments with high electromagnetic interference — an interposing signal isolator or relay module installed between the IC697MDL340 output terminals and the field wiring provides galvanic isolation without requiring changes to the PLC program. Programming and configuration changes during the migration are performed using a standard RS-232 programming cable connected to the IC697CPU’s serial port, with Proficy Machine Edition managing the I/O configuration table update.

Retrofit Guidance FAQ

Q: Can I replace the IC697MDL341 with the IC697MDL340 without modifying my ladder logic?
A: In most cases, yes. If the replacement module is installed in the same rack slot and the I/O reference addresses are unchanged, the CPU will recognize the module at the next power cycle without requiring a program modification. Verify the output point count and voltage rating match your field device requirements before installation.

Q: Is the field wiring compatible between the old module and the IC697MDL340?
A: The IC697MDL340 uses the standard Series 90-70 terminal block interface. If the original module used the same terminal block style, field wiring can be transferred directly. If the original module used a different connector type, a wiring adapter or re-termination at the terminal block will be required.

Q: What communications protocols does the Series 90-70 platform support?
A: The Series 90-70 platform supports Genius Bus, SRTP Ethernet (via communications coprocessor modules such as the IC697CMM742), and serial Modbus RTU. The IC697MDL340 itself is a local I/O module and does not require protocol configuration — it communicates with the CPU via the Series 90-70 backplane bus.

Q: Will the IC697MDL340 fit in my existing cabinet without mechanical modification?
A: Yes. The IC697MDL340 occupies a single Series 90-70 rack slot and uses the standard module form factor. No additional mounting hardware, DIN rail modification, or cabinet cutout is required for a same-slot replacement.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, perform a rack power cycle and verify that the CPU recognizes the module in the I/O configuration table within Proficy Machine Edition or Logicmaster 90-70. Force individual output points from the programming terminal to confirm field device response before returning the system to automatic operation.

Warranty Assurance

Every IC697MDL340 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a functional pre-shipment inspection that verifies output point operation, backplane connector integrity, and module identification. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund depending on the nature of the defect and the customer’s preference. Warranty claims are processed within 3 business days of receiving the returned unit. Return shipping for confirmed defective units is covered by TOPNLMS for customers in supported regions.

For urgent replacement requirements — including unplanned downtime situations — TOPNLMS offers expedited order processing and priority dispatch. Customers with active purchase orders can contact the sales team directly for same-day shipping confirmation. Stock availability is updated in real time, and customers are notified immediately if a unit is reserved for another order.

TOPNLMS maintains a dedicated after-sales support channel for technical questions related to installation, compatibility verification, and system commissioning. Support is available via email and phone during business hours, with response times typically under 4 hours for urgent inquiries.
