GE IC697CPX782-ED Ruggedized PLC CPU Module

Product Overview

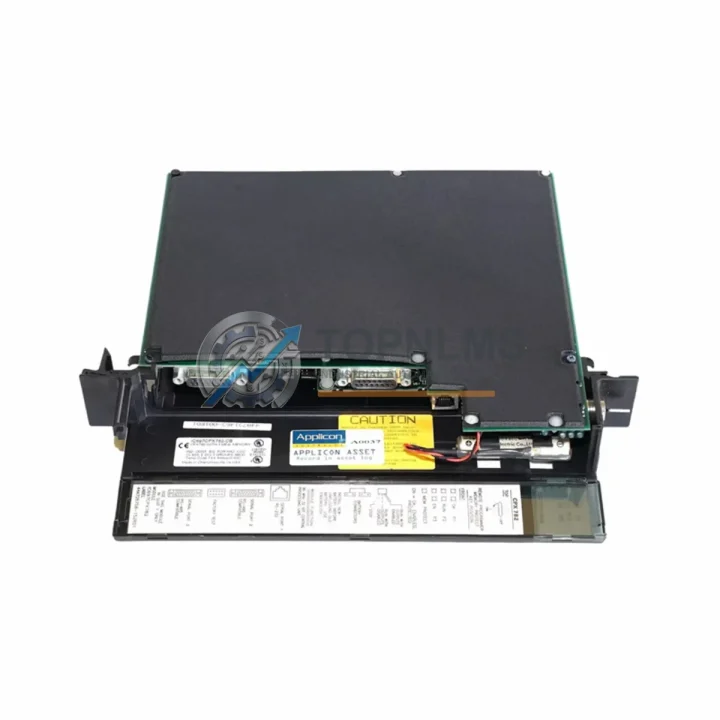

GE IC697CPX782-ED Ruggedized PLC CPU Module: Industrial Resilience for Harsh Environments

The GE IC697CPX782-ED is a high-performance CPU rack controller module from the renowned GE Series 90-70 programmable logic controller platform — one of the most widely deployed industrial control architectures in heavy manufacturing, power generation, oil & gas, and critical infrastructure worldwide. Engineered to operate continuously under extreme thermal stress, high-vibration conditions, corrosive atmospheres, and intense electromagnetic interference, this module delivers the processing reliability that mission-critical automation systems demand.

Designed for rack-mount integration within the GE Series 90-70 chassis, the IC697CPX782-ED provides deterministic scan-cycle execution, robust ladder logic and function block processing, and seamless coordination with the broader Series 90-70 ecosystem. Its hardened architecture ensures stable operation across the full industrial temperature range, making it equally suited to a climate-controlled control room or an exposed outdoor substation enclosure.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC697CPX782-ED does not operate in isolation — it anchors a complete, layered control architecture. In a typical Series 90-70 control cabinet, this CPU module coordinates directly with GE IC697MDL340 discrete input modules and IC697MDL341 output modules to manage field-level I/O signals from sensors, actuators, and safety interlocks. Analog process variables — temperature, pressure, flow — are handled by IC697ALG230 analog input modules, feeding real-time data to the CPU for closed-loop control decisions.

For distributed control topologies, the IC697CPX782-ED integrates with GE IC697BEM731 Bus Expansion Master modules, extending the control network across multiple racks without sacrificing scan-cycle determinism. In facilities where Genius Bus communication is the backbone of the field network, the IC697BEM711 Genius Bus Controller module provides the protocol bridge between the CPU and remote I/O blocks deployed across the plant floor.

Power integrity is maintained by dedicated GE IC697PWR711 and IC697PWR724 rack power supply modules, which deliver regulated, noise-filtered DC power to every slot in the chassis — critical in environments where voltage transients from variable frequency drives (VFDs), motor starters, and large inductive loads can otherwise corrupt control logic. Surge protection and proper grounding of the control cabinet further shield the CPU from conducted and radiated EMI.

Safety-critical applications pair the IC697CPX782-ED with dedicated safety relay modules and hardwired emergency stop circuits, ensuring that even in the event of a CPU fault, the process defaults to a safe state. Communication gateways such as the IC697CMM742 Ethernet Interface module extend supervisory connectivity to SCADA systems and historian servers, enabling remote monitoring without exposing the control network to external threats.

For facilities standardizing on modern fieldbus protocols, the Series 90-70 platform supports PROFIBUS-DP and DeviceNet adapter modules, allowing the IC697CPX782-ED to serve as the master controller for distributed I/O nodes, smart transmitters, and intelligent motor control centers — all within a single, unified programming environment.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the IC697CPX782-ED controls wellhead automation panels, compressor station logic, and pipeline SCADA integration points. Its tolerance for wide temperature swings and resistance to hydrogen sulfide-laden atmospheres — when housed in appropriately rated enclosures — makes it a trusted choice for remote unmanned stations where maintenance access is infrequent and reliability is non-negotiable.

In power generation and electrical substations, this CPU module manages turbine auxiliary systems, transformer protection logic, and load-shedding sequences. The deterministic scan cycle ensures that protection relay coordination commands are executed within the millisecond tolerances required by grid stability standards. Utilities operating aging Series 90-70 infrastructure rely on the IC697CPX782-ED as a direct drop-in replacement to extend the operational life of existing control panels without requiring full system re-engineering.

In mining and mineral processing, the module supervises conveyor belt interlocks, crusher control sequences, and slurry pump automation in environments characterized by heavy dust loading, ground vibration from blasting operations, and wide ambient temperature variation between surface and underground installations. Its robust rack-mount form factor and passive cooling design eliminate the fan-failure failure mode common in less ruggedized computing platforms.

In water and wastewater treatment facilities, the IC697CPX782-ED orchestrates pump station sequencing, chemical dosing control, and SCADA telemetry — operating continuously in high-humidity pump rooms and outdoor lift stations where condensation management is a persistent challenge. In metallurgical and steel mill environments, it withstands radiated heat from furnaces and the intense electromagnetic fields generated by large arc furnaces and induction heating systems, maintaining control loop integrity where lesser hardware fails.
