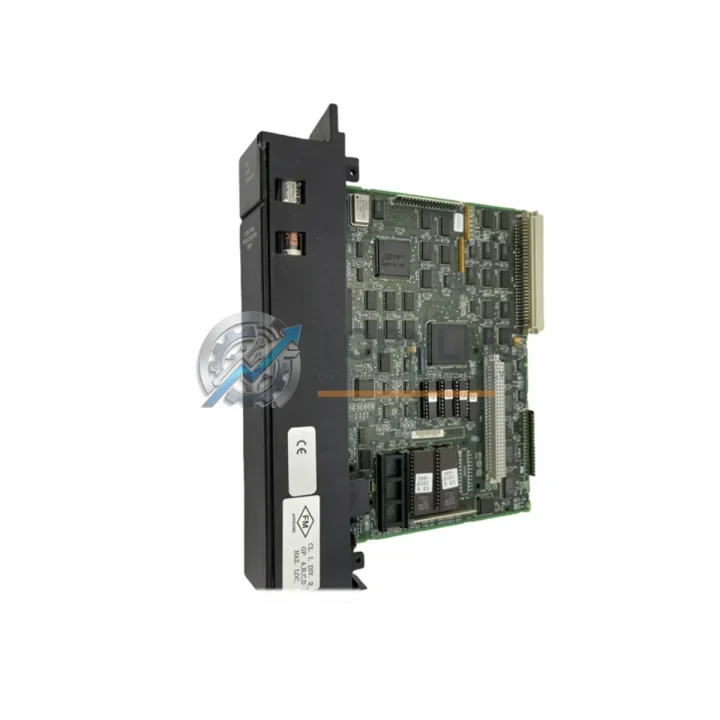

GE IC697CPU789 Original Industrial Spare Series 90-70 Compatible

Product Overview

GE IC697CPU789 Original Industrial Spare — Series 90-70 System Stability & Maintenance Value

The GE Fanuc IC697CPU789 is a high-performance CPU module designed for the Series 90-70 Programmable Logic Controller platform — one of the most widely deployed industrial control architectures in process manufacturing, power generation, automotive assembly, and heavy industry. As aging Series 90-70 systems continue to operate well beyond their original design lifecycle, maintaining a verified, original-specification CPU spare is no longer optional — it is a fundamental pillar of any responsible preventive maintenance strategy.

At TOPNLMS, every IC697CPU789 unit is sourced from authenticated supply channels, subjected to pre-shipment functional verification, and backed by a 12-Month Quality Warranty. Whether you are managing a planned turnaround, responding to an unplanned CPU fault, or building a strategic spare parts inventory for a multi-line facility, the IC697CPU789 delivers the original performance, memory architecture, and communication compatibility your Series 90-70 system demands.

Critical Technical Specs

Preventive Maintenance Strategy for Series 90-70 Systems

A CPU fault in a Series 90-70 rack is rarely an isolated event. In most field cases, the root cause involves a combination of aging backplane power distribution, degraded I/O module communication, or accumulated thermal stress across the entire control cabinet. When performing a scheduled inspection or responding to an IC697CPU789 fault, experienced maintenance engineers treat the event as an opportunity to audit the full rack assembly.

Begin with the power supply module. The IC697PWR711 and IC697PWR724 are the most common power supplies paired with the IC697CPU789 in production environments. Measure output voltage rails under load — a marginal power supply is one of the leading causes of intermittent CPU resets and memory corruption events. If the power supply is more than seven years old, proactive replacement during the same maintenance window eliminates a second unplanned outage.

Next, inspect the I/O modules seated in the same rack. Analog input modules such as the IC697ALG230 and discrete output modules like the IC697MDL340 should be checked for loose seating, oxidized edge connectors, and fault indicator LEDs. A CPU that has been running in a degraded state may have logged I/O bus errors that only become apparent after the CPU is replaced and the fault history is reviewed in Proficy ME.

Communication integrity is equally critical. If your Series 90-70 system uses a IC697CMM742 Ethernet Interface Module or a IC697BEM731 Bus Expansion Module for remote I/O, verify that these modules are responding correctly after the CPU swap. Communication modules are often overlooked during CPU replacement but are a common secondary failure point in systems that have experienced a CPU fault event.

For facilities running multiple Series 90-70 racks in a distributed architecture, the IC697CHS790 9-slot VME chassis and associated rack interconnect cables should be inspected for physical damage and secure termination. Loose backplane connectors can cause intermittent CPU-to-I/O communication errors that are difficult to diagnose without a known-good CPU installed as a reference baseline.

Finally, review the battery backup module. The IC697ACC701 memory backup battery maintains program and data memory during power interruptions. A battery that is approaching end-of-life will trigger a low-battery alarm on the IC697CPU789 front panel. Replacing the battery during the same maintenance window as the CPU is a low-cost, high-value action that protects program integrity and prevents unplanned memory loss events.

Building a consolidated spare kit — IC697CPU789 CPU, IC697PWR711 power supply, IC697ALG230 analog input module, IC697MDL340 discrete output module, and IC697ACC701 battery — provides comprehensive coverage for the most common Series 90-70 failure modes and significantly reduces mean time to repair (MTTR) across your facility.

Strategic Replacement Solutions

The IC697CPU789 is a direct, pin-compatible replacement for earlier Series 90-70 CPU variants including the IC697CPU771 and IC697CPU781. No rack modification, re-wiring, or backplane reconfiguration is required. The replacement procedure involves powering down the rack, removing the existing CPU module from Slot 1, inserting the IC697CPU789, restoring power, and downloading the existing application program from a backup source using Proficy Machine Edition or Logicmaster 90-70.

For facilities that have been unable to source IC697CPU789 units through standard distribution channels due to product discontinuation, TOPNLMS maintains dedicated inventory specifically for legacy industrial control system support. Our procurement model is designed around the reality that Series 90-70 systems will remain in active production service for years beyond the original manufacturer’s support window — and that the cost of a single unplanned production stoppage far exceeds the cost of maintaining a verified spare on the shelf.

Customers managing multi-site operations or long-term service contracts are encouraged to inquire about volume pricing and consignment inventory arrangements. Securing two to three IC697CPU789 units per facility eliminates single-point-of-failure risk at the CPU level and provides the redundancy required for ISO 55001 asset management compliance in critical production environments.

Support FAQ

Q1: Is the IC697CPU789 compatible with my existing Series 90-70 rack and I/O modules?
Yes. The IC697CPU789 is fully compatible with all standard Series 90-70 VME-based backplanes and I/O modules. It installs in Slot 1 of any Series 90-70 rack and communicates with all standard GE Fanuc Series 90-70 I/O, communication, and specialty modules without hardware modification.

Q2: What pre-shipment testing does TOPNLMS perform on the IC697CPU789?
Each unit undergoes functional power-on verification, memory integrity check, and communication port test prior to shipment. Units that do not pass all test criteria are quarantined and not offered for sale. A test report summary is available upon request for quality-critical procurement processes.

Q3: What does the 12-Month Warranty cover?
The 12-Month TOPNLMS Quality Warranty covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will provide a replacement unit or full refund at the customer’s discretion. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: How quickly can the IC697CPU789 be shipped, and what documentation is provided?
In-stock units are dispatched within 1–2 business days. International shipments are supported with full commercial invoice, packing list, and country-of-origin documentation to facilitate customs clearance. Express courier options (DHL, FedEx) are available for urgent maintenance requirements.
