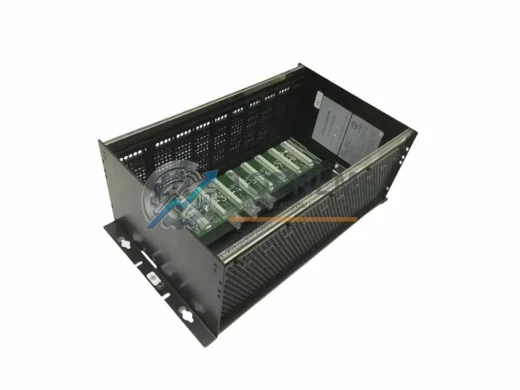

GE IC697CHS790 Ruggedized VME Backplane Rack

Product Overview

GE IC697CHS790 Ruggedized VME Backplane Rack: Industrial Resilience for Harsh Environments

The GE IC697CHS790 is a 9-slot VME backplane rack engineered for the GE Series 90-70 PLC platform — one of the most widely deployed distributed control architectures in heavy industry. Designed to operate continuously in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the IC697CHS790 delivers the structural and electrical integrity that mission-critical automation systems demand. Whether installed in a petrochemical control room, a mining substation, a steel mill’s drive cabinet, or a water treatment facility’s SCADA enclosure, this backplane rack provides the stable, low-impedance interconnect backbone that keeps every module in the rack communicating reliably — shift after shift, year after year.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC697CHS790 backplane rack is the structural heart of a Series 90-70 control system, and its reliability is only as strong as the modules seated within it. In a typical high-availability control cabinet, the rack hosts a GE IC697CPU781 or IC697CPU788 central processing unit alongside redundant IC697PWR711 power supply modules that maintain regulated DC bus voltage even during upstream AC fluctuations common in heavy industrial facilities. Digital I/O modules such as the IC697MDL340 (24 VDC input) and IC697MDL653 (relay output) occupy adjacent slots, providing the discrete signal interface between field devices and the control logic.

For process-intensive applications requiring analog measurement, the IC697ALG230 analog input module integrates directly into the same rack, sharing the VMEbus backplane for high-speed data exchange with the CPU. Communications are handled by modules such as the IC697CMM742 Ethernet interface or the IC697BEM731 Genius Bus Controller, enabling the Series 90-70 rack to participate in plant-wide SCADA networks and distributed I/O architectures without additional protocol converters.

In safety-critical zones — such as emergency shutdown systems in oil and gas facilities — the IC697CHS790 rack is often paired with dedicated safety relay modules and hardwired interlock circuits that operate independently of the PLC scan cycle, ensuring that protective actions execute within deterministic time windows regardless of CPU load. Surge protection devices and EMI filters installed at the cabinet entry point further shield the backplane from transient voltages induced by nearby variable frequency drives, large motor starters, and high-current switching equipment. Together, these layered protection measures transform the IC697CHS790 from a passive interconnect component into the anchor of a fully hardened control architecture.

Application in Critical Infrastructure

Across the energy, mining, metallurgy, and utilities sectors, the GE Series 90-70 platform — and the IC697CHS790 backplane rack in particular — has accumulated decades of proven field performance in some of the world’s most demanding operating environments.

Oil & Gas: Upstream wellhead automation and midstream pipeline compression stations rely on Series 90-70 racks installed in NEMA 4X enclosures to manage flow control valves, pressure transmitters, and emergency shutdown logic. The IC697CHS790’s robust VMEbus architecture tolerates the vibration generated by reciprocating compressors and the wide temperature swings of outdoor installations in desert or arctic climates.

Mining & Mineral Processing: Conveyor drive control, crusher sequencing, and flotation cell management in underground and open-pit mines expose control hardware to coal dust, silica particulates, and continuous mechanical shock. The IC697CHS790 rack, when housed in a sealed enclosure with positive-pressure purging, maintains signal integrity across all nine module slots despite these aggressive conditions.

Power Generation & Transmission: Turbine auxiliary control panels, switchgear automation, and substation RTU applications demand hardware that can withstand the intense electromagnetic fields generated by high-voltage switching. The IC697CHS790’s integrated ground plane and shielded backplane traces suppress common-mode noise that would otherwise corrupt analog sensor readings or cause spurious digital transitions.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate continuously, making unplanned downtime unacceptable. The IC697CHS790 supports hot-standby CPU redundancy configurations that allow a failed processor module to be replaced without interrupting the control scan, ensuring pump sequencing, chemical dosing, and filtration processes continue uninterrupted.

Metallurgy & Steel Production: Rolling mill drives, ladle furnace controls, and continuous casting machine automation generate extreme thermal loads and electromagnetic interference. The IC697CHS790’s wide operating temperature range and EMI-hardened design make it a preferred choice for control cabinets located in close proximity to induction heating equipment and large DC drive systems.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every IC697CHS790 unit shipped by TOPNLMS carries a 12-month full replacement warranty from the date of delivery. If the unit fails under normal operating conditions within the warranty period, we will ship a verified replacement at no additional cost. Warranty claims are processed within 3 business days of receiving the returned unit, and our technical team provides root-cause analysis upon request to support your maintenance records.

Q2: How is each unit tested before shipment?
All IC697CHS790 backplane racks undergo a multi-stage inspection protocol prior to dispatch: visual inspection for physical damage to VMEbus connectors and card guides, continuity testing across all backplane signal traces, power rail impedance verification, and a functional slot-by-slot compatibility check using reference CPU and I/O modules. Units that do not pass all test stages are quarantined and not offered for sale.

Q3: Is the IC697CHS790 compatible with all GE Series 90-70 modules?
Yes. The IC697CHS790 is fully compatible with the complete GE Series 90-70 module family, including CPU modules (IC697CPU772 through IC697CPU788), all standard power supply variants (IC697PWR710, IC697PWR711, IC697PWR724, IC697PWR748), digital and analog I/O modules, and communications modules such as the IC697CMM742 and IC697BEM731. It is also backward-compatible with legacy Series 90-70 modules used in existing installed-base systems.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance and spare-parts programs?
Yes. TOPNLMS maintains a dedicated inventory of GE Series 90-70 components to support customers with multi-year maintenance contracts, planned outage schedules, and emergency spare-parts requirements. We can provide advance purchase agreements, reserved stock allocations, and priority shipping arrangements for customers managing large installed bases of Series 90-70 systems. Contact our team to discuss a tailored supply program for your facility.
